| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PRINTYOUNG |
| Certification: | CE |
| Model Number: | PRY-S600Y |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | USD135000 |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 sets per month |
| Paper Wrap Thickness: | 100-200g/m2 | Position Precision: | ±0.1mm |
|---|---|---|---|
| Production Speed: | ≤30 Sheets/min | Motor Power: | 6.65kw |
| High Light: | 200g/m2 Rigid Box Forming Machine,Rigid Box Forming Machine 30 Sheets/Min,CE Rigid Box Forming Machine |
||

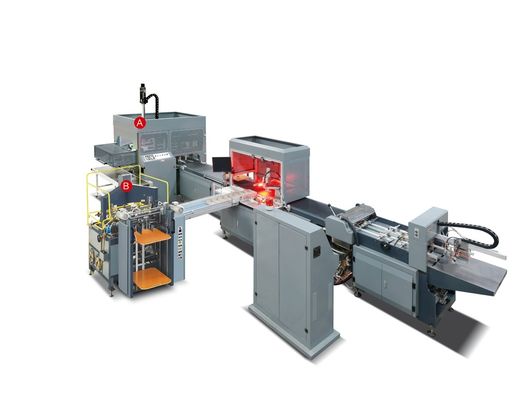

PRY-S600Y Automatic Rigid Box Making Machine
Features
This machine is mainly used for producing boutique boxes with high requirements,like high grade boxes for iPhone, iPad,Jewelry gift, makeup,etc. It can work with Rigid Box Molding&Folding Machine according to requirement of the boxes.
1. Adopts paper feeding principle same with automatic rigid box maker, with stable performance.
2. Adopts YAMAHA robot, can automatically fetch the rough box to the required position accurately.
3. Adopts visual positioning system,the positioning accuracy is≤±0.1mm.
Parameters
|
Model NO. |
S 600Y |
|
Paper wrap size |
A min 100mm A max 600mm B min 190mm B max 1030mm |
|
Paper wrap thickness |
100-200gsm |
|
Finished box size |
Max 420 Min 100 Max 320 Min 50 Max 150 Min 15 |
|
Position precision |
±0.1mm |
|
Production Speed |
≤30 sheets/min |
|
Motor power |
6.65kw |
|
Machine weigh |
1500kg |
|
Machine dimension |
L7600×W3500xH2100mm |
|
Remark:For the specific parameters of the selected models in Zone A/B, please refer to the stand-alone parameter list. |
|
Product Samples
Characteristic:
1. Feeder servo automatic paper feeding.(Can freely adjust each functional bit parameter according to product characteristics to adapt to more product types)
2. Self-centering function of paper pile.(Motor drive eliminates the error caused by manual adjustment of the paper stopper)
3. Standard glue viscosity controller(Avoid product quality problems caused by glue viscosity and reduce the difficulty of operation)
4. High strength monochrome PU conveyor belt(Compared with rubber belts, it can achieve smaller deformation and easier to wipe. It can be replaced with black and white dual-color belts according to customer needs)
5. Rear Drive Servo Drive(Achieve more stable belt operation and longer service life)
6. Equipped with waste collection roller(The back end of the equipment is equipped with a waste collection roller to provide convenience for customer
7. Absolute carton positioning device(The double-cylinder positioning carton ensures that each carton is in a uniform position, which has incomparable advantages compared to the structure that needs to be positioned by the relative friction between the carton and the belt.)
8. Japan YAMAHA manipulator and dual 500W industrial cameras(Compared with a single camera with a large field of view, the positioning accuracy is more accurate, and the high-power SCARA achieves faster speed and accuracy)
9. Camera electric adjustment device(Equipped with roller screws to achieve more accurate camera position adjustment, with self-locking function to place the camera moving due to equipment movement)
10. Automatic holding box device(Raise the paper box and facial paper by 15mm to reduce product loss caused by friction between the facial paper and the conveyor belt)
11. Blocking alarm device(Automatic discharge and feed detection to avoid damage to accessories due to material blocking)
12. Blocking alarm device(Automatic discharge and feed detection to avoid damage to accessories due to material blocking)
