20M/Min Printing And Packaging Machines Shrink Film Side Sealing

Basic Information
Place of Origin: CHINA
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-GB600
Minimum Order Quantity: 1 Set/Sets
Packaging Details: WOODEN CASE
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30sets/month
SEALING TYPE: SIDE SEALING POWER SUPPLY: 380V/50-60HZ/3PHASE
PRODUCT SIZE: WIDTH + HEIGHT < 650MM MAX FILM SIZE: 860MM (WIDTH) X 280MM(OUTER DIAMETER)
TUNNEL CONVEYOR SPEED: VARIABLE, 20 M/MIN SEALING KNIFE: UNIBODY ALLOYED SEALING KNIFE WITH ANTI-STICK TEFLON COATS
MACHINE MATERIAL: CARBON STEEL WITH POWER COATING MACHINE DIMENSIONS: 2100 X 1350 X 1150MM, 4800 X 930 X 1270MM
High Light:

20M/Min Printing And Packaging Machines

,

12.5KW Printing And Packaging Machines

,

Side Sealing Printing And Packaging Machines

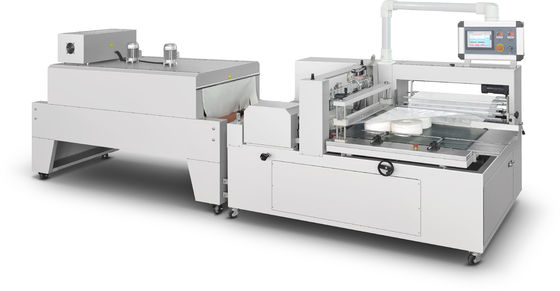

GB-600 Full-auto Shrink Packaging Machine

Features

1. gb-600 is a fully automatic shrink packaging machine including side sealer and shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. it is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.

2. this machine can pack long products. there is no limit of product length because of side sealing system.

3. special durable alloyed sealing knife with anti-stick teflon coats makes sealing strong and has better performance of heat conduction.

4. side sealing line can be adjusted in the center of product or other desired position.

5. film perforating wheels can be adjusted or removed easily.

6. only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. packing length can be detected by the sensor automatically.

7. operate easily and conveniently by moveable control panel.

8. adopt siemens plc and colorful touch screen, omron temperature controller, timer, relay, switch, and sensor.



Technical Parameters

Model No. GB-600
Sealing Type Side Sealing
Power Supply 380V/50-60HZ/3PHASE
Product Length Infinite
Sealing Height 250MM
Sealing Width 600MM
Power Consumption MAX. 12.5 KW
Working Heigth 750-820 MM
Machine Dimensions 2100 X 1350 X 1150MM, 4800 X 930 X 1270MM

20M/Min Printing And Packaging Machines Shrink Film Side Sealing 0

Configuration

20M/Min Printing And Packaging Machines Shrink Film Side Sealing 1
