Automatic Corrugated Cardboard Flute Laminator 1300X1250mm 7500pcs/H

Basic Information
Place of Origin: CHINA
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-1300E
Minimum Order Quantity: 1 Set/Sets
Packaging Details: WOODEN CASE
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
30 Sets Per Month: PRY-1300E Max Sheet Size: 1300X1250mm
Min Sheet Size: 400X400mm Weight Of Top Paperboard: 150-600g
Max Speed: 7500pcs/hour Laminating Precision: ±1mm
High Light:

Automatic Corrugated Cardboard Flute Laminator

,

Cardboard Flute Laminator 1300X1250mm

,

7500pcs/H Cardboard Flute Laminator

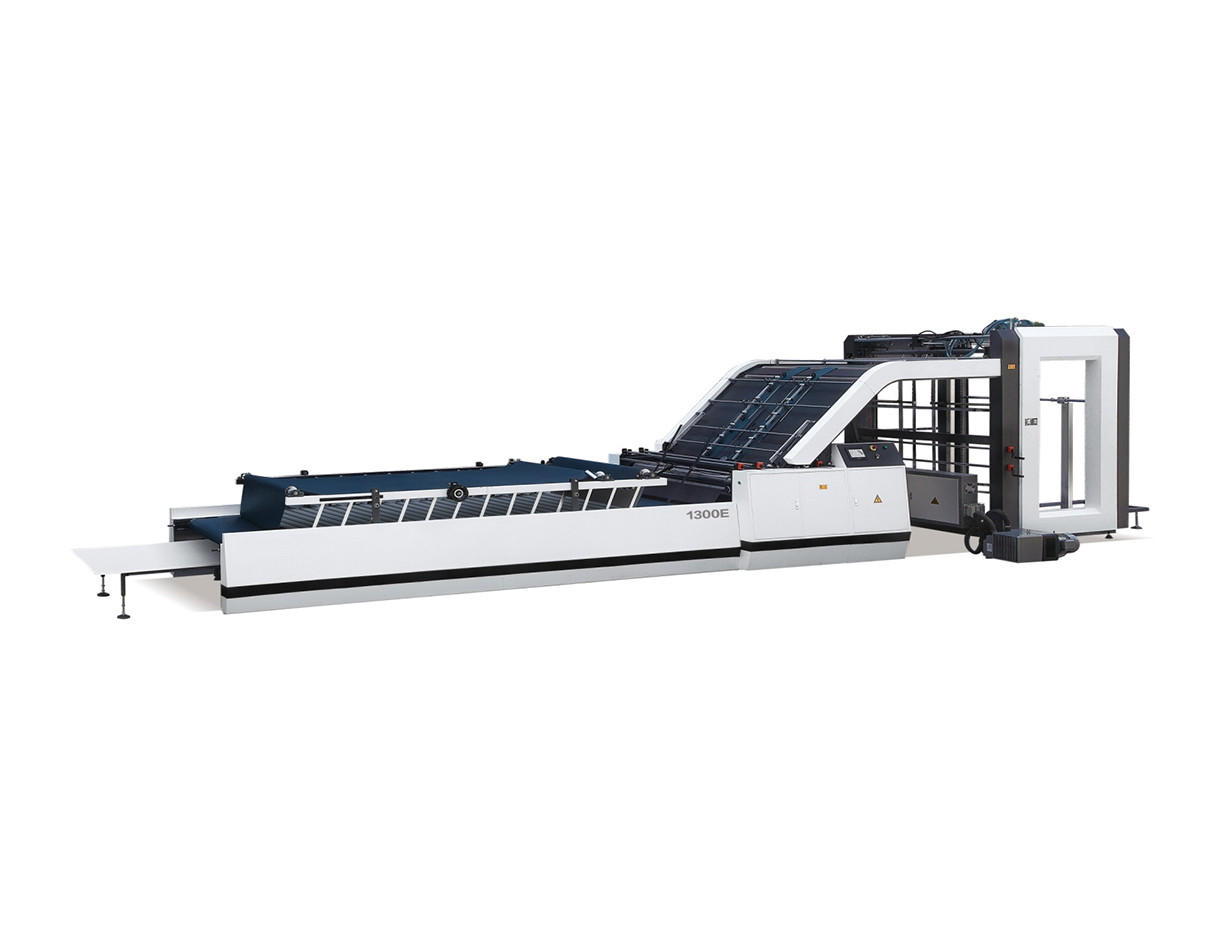

PRY-1300E High Speed Fully Automatic Corrugated Cardboard Flute Laminator

Features:

1.advanced automatic tracking technology, according to the paper automatically adjust the size of the relevant parameters, so that the machine running is always in the best condition; 2.unique front gauge positioning system, accurate, the bottom paper never advance; advance with adjustable amount of paper; 3. is equipped with high precision high speed automatic feeder, strengthening type paper feeding device, feeding smoothly. 4. using the principle of offset printing machine side plate positioning for about error correction paper stack of paper and feeding process; 5. at the end of the paper using automatic suction feeder, can adjust the size of the wind in the touch screen, and an optional belt humidifying function; 6. spare layboy in the non-stop state pile under a pile of paper, along the rail into the elevator, high working efficiency; 7. imported electrical components, to ensure the stability of the circuit system. PLC tracking technology, automatic fault alarm; 8. full automatic glue supply system, can automatically add the loss of plastic, and with the glue recycling; 9. independent tank control water circulation, ensure the bottom paper back and dry, cleaning roller, spout, back glue tank; 10. single side adjustment of the pressure of the pressure roller, and equipped with a pressure scale display, the replacement of the end of the paper size adjustment in one step;

Technical Parameters:

Model

PRY-1300E

Max sheet size

1300X1250mm

Min sheet size

400X400mm

Weight of top paperboard

150-600g

Max speed

7500pcs/hour

Laminating precision

±1mm

Overall Dimensions

11.5X2X2.4M

Weight

5000kg

Total electric consumption

10KW/380V

Thickness of corrugated

A,B,C,E,F Corrugated paper, industry cardboard



Automatic Corrugated Cardboard Flute Laminator 1300X1250mm 7500pcs/H 0

Configuration:

Automatic Corrugated Cardboard Flute Laminator 1300X1250mm 7500pcs/H 1Automatic Corrugated Cardboard Flute Laminator 1300X1250mm 7500pcs/H 2Automatic Corrugated Cardboard Flute Laminator 1300X1250mm 7500pcs/H 3Automatic Corrugated Cardboard Flute Laminator 1300X1250mm 7500pcs/H 4

Automatic Corrugated Cardboard Flute Laminator 1300X1250mm 7500pcs/H 5Automatic Corrugated Cardboard Flute Laminator 1300X1250mm 7500pcs/H 6Automatic Corrugated Cardboard Flute Laminator 1300X1250mm 7500pcs/H 7

1. Top sheet feeding Mechanism

High precision high speed automatic feeder, feeding smoothly. Strengthening type paper feeding device, nozzle angle is adjustable, suitable for different type of papers.

2. Pressure Regulation positioning

Single pressure regulation, to ensure that the two side pressure be same. With the display of dial gauge, it is easy to adjust when change the paper.

3. Touch screen Operation panel
The touch screen operation panel is greatly convenient for operation

4. Pre-stack part

Standby stack table can pile paper under non-stop situation, along the rail into the elevator, High working efficiency. Using the "working “font design, the platform can be used to push and way back, labor saving

5. Electrical system

Main electrical components are imported brands PLC tracking technology, automatic fault detection

6. Transmission:

Floating design of press, no need to adjust the pressure, Heightening design, smooth working for thick corrugated paperboard.

7. Side position(Option)

Side gauge positioning, error correction for about top paper stack and feeding process. Similar with the principle of offset printing machine. Positing accuracy.

Automatic Corrugated Cardboard Flute Laminator 1300X1250mm 7500pcs/H 8

Spare part list (Free):

1. Belt of top sheet: 2440*200*2MM 1PC

2. Driving belt: 2850*200*2MM 1PC

3. Suction belt of bottom sheet: 1440*90*8MM 1PC

4. Photoelectric sensor: 1PC

5. Solenoid valve: 1PC

6. Front gauge: 10PCS

7. Front Gauge Spring: 30PCS

8. Front Gauge Axis Pin: 20PCS

9. Blade: 2PCS

10. Toolbox: 1SET Remark: these spare parts will be sent with the machine.

Packing&Shipping:

Automatic Corrugated Cardboard Flute Laminator 1300X1250mm 7500pcs/H 9Automatic Corrugated Cardboard Flute Laminator 1300X1250mm 7500pcs/H 10

Our service :

1. We will reply you for your inquiry in 24 hours.

2. One year guarantee. During the period of quality guarantee, we supply the spare part in free for replacement in case of quality problem, if there get a problem with machine, buyer can not solve it, buyer can take a video of machine running then send to seller

3. When you got our machines, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solve way for you.

Automatic Corrugated Cardboard Flute Laminator 1300X1250mm 7500pcs/H 11

Automatic Corrugated Cardboard Flute Laminator 1300X1250mm 7500pcs/H 12
