Home ProductsFolder Gluer Machine400m/Min High Speed Folder Gluer Machine With Four Corner

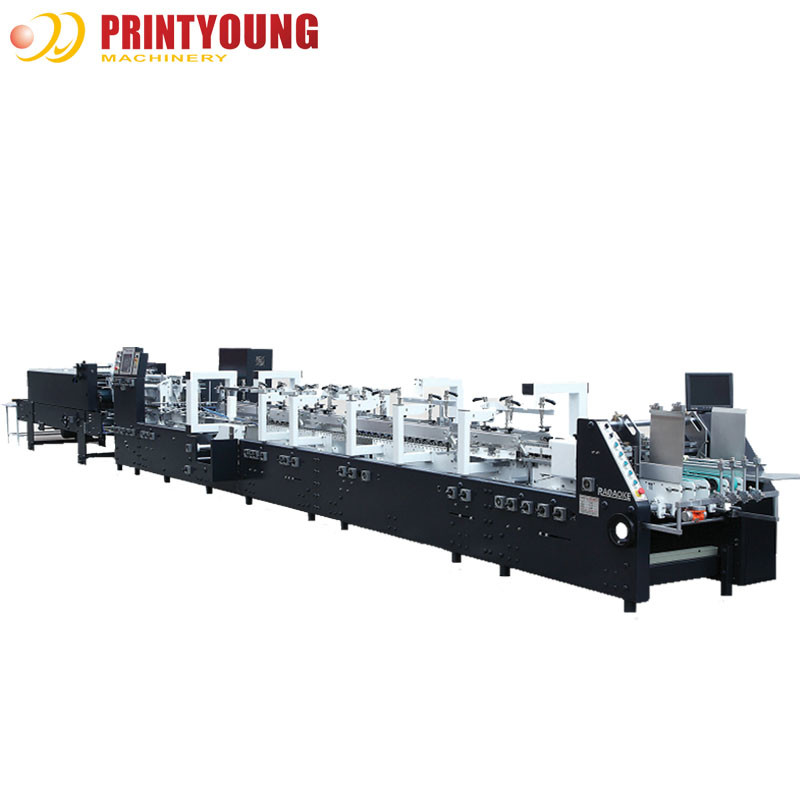

400m/Min High Speed Folder Gluer Machine With Four Corner

400m/Min High Speed Folder Gluer Machine With Four Corner
400m/Min High Speed Folder Gluer Machine With Four Corner
400m/Min High Speed Folder Gluer Machine With Four Corner 400m/Min High Speed Folder Gluer Machine With Four Corner 400m/Min High Speed Folder Gluer Machine With Four Corner 400m/Min High Speed Folder Gluer Machine With Four Corner
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-GS800
Minimum Order Quantity: 1 Set/Sets
Price: USD75000.00-USD95000.00 per/set
Packaging Details: wooden case
Delivery Time: 45days
Payment Terms: L/C, T/T
Supply Ability: 15
Contact Now
Carton Board Max.: 800 MM Speed Max.: 400 M/min
Thickness Of Folded Box Max.: 20 Mm Blank Width: 800 Mm
Length*Width*Height: 16.5 *1.4*1.8m Net Weight: 6.6T
Highlight:

four Corner Folder Gluer Machine

,

400m/min Folder Gluer Machine

,

High Speed Folder Gluer Machine

PRY-GS800 High Speed Four and Six Corner Folder Gluer Machine

Feature Introduction:

Feeding

Independently motorized motor control, simultaneous feeding mode with the main motor.

Feeder section equipped with three pieces feeding knife, adjust the asymmetrical lengths as per the box sample.Rail width can be horizontally adjusted and set by seven pieces 30mm thickened feeding belt and 10mm metal board.Embossing drive wheel guide the feeding section belt, side feed gates in the right and left are adjustable according to the products.Vibration device coordinate with motor which helps machine consecutive and automatic feeding quick and simply. Feeder section can stack 400MM height paper board.



Aligner Section

The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.

Pressing drive pressure can be adjusted up and down to accommodate different paperboard thickness.



Prefolding Section

Special first folding line pre-fold 180°. third line 165° ,Which perfectly meeting the requirements of automatic packaging industry.



Lock bottom Unit

Complete set of folding hooks and helixes to fold the front flaps of the blank smoothly and accurately.Bottom lock section with three board, which can better apply to the large crash lock bottom box forming.Sectional-type upper belt board with special design, which can be adjusted according to the products type ,no need to tension belt

Lower Gluing Tank

Lower gluing tank is large volume.Easy to remove and clean Electronic upper gluing system by guns.



Folding

The Second and fourth folding line 180°

Folding and closing section transmit from right and left side ,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.

Trombone section

Up and down belt can be adjusted separately.Equipp

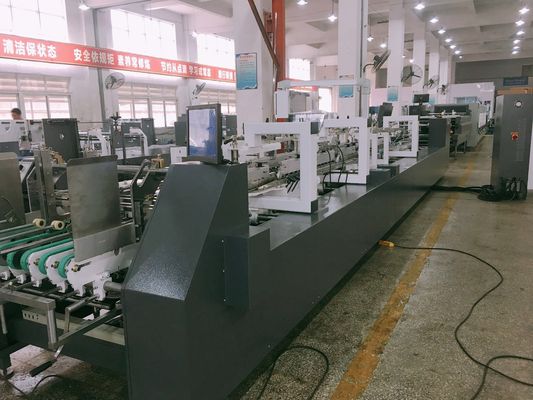

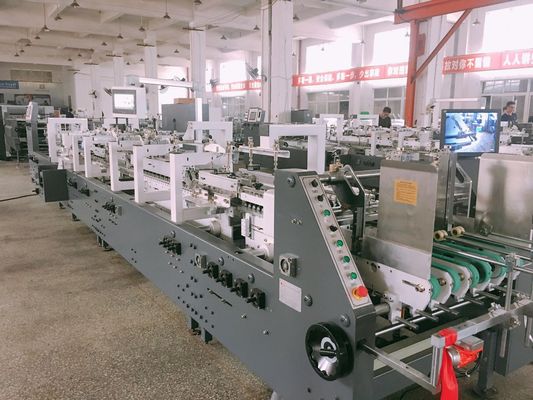

Product display

400m/Min High Speed Folder Gluer Machine With Four Corner 0





400m/Min High Speed Folder Gluer Machine With Four Corner 1







FAQ

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
