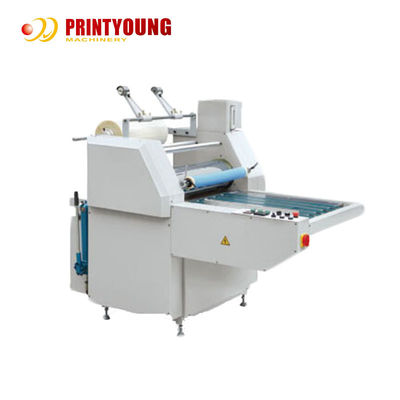

30 M/Min Oil Heating Thermal Film Laminator Machine

Basic Information
Place of Origin: China
Certification: CE
Model Number: YDFM-720A
Minimum Order Quantity: 1 Set/Sets
Packaging Details: wooden case each film Laminating machine
Delivery Time: within 40 days
Payment Terms: L/C, T/T
Supply Ability: 30sets per month
Max Paper Size: 680mm Paper Thickness: 105-500 Gsm
Laminating Speed: 0-30 M/min Gross Power: 13kw
Total Weight: 600kg Overall Dimensions: 1870 X 1460 X 1600mm
High Light:

Oil Heating Film Laminator Machine


Thermal Film Laminator Machine


30 M/Min Film Laminator

YDFM-720A hot Manual 600kg Oil Heating thermal film Laminating machine



1. PLC system makes the machine run stably and quietly.

2. Φ320 size of chromed heating roller is mounted with built-in oil heating system which provides balanced laminating temperature and owns excellent temperature persistence.

3. Pneumatic film unwinding system positions film roll more accurately, and makes the loading and unloading of film roll and film unwinding tension much more convenient.

4. Double sets of serrated perforating wheels provide different choices for different specifications of sheets and film.

5. Perfected traction adjusting system makes traction adjustment more convenient and efficient.

6. Corrugating delivery system and vibrating receiving system ensure paper collection more regular and convenient.


Technical Parameters

Model YDFM-720A YDFM-920A
Max Paper Size 680mm 880mm
Paper Thickness 105-500 gsm 105-500 gsm
Laminating Speed 0-30 m/min 0-30 m/min
Gross Power 13kw 15 kw
Total Weight 600kg 700kg
Overall Dimensions 1870 x 1460 x 1600mm 1870 x 1660 x 1600mm


Our factory

30 M/Min Oil Heating Thermal Film Laminator Machine 0



Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 50% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.
