Cardboard 2.5kw 0.6Mpa 20 Boxes/Min Box Wrapping Machine

Basic Information
Place of Origin: China
Certification: CE
Model Number: B460
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: wooden case each Box wrapping machine
Delivery Time: within 40 days
Payment Terms: L/C, T/T
Supply Ability: 30sets per month
Model No.: PRY-B460 Paper Size: Min 100×200mm, Max 580×800mm
Paper Thickness: 100-200g/m2 Cardboard Thickness: T 1-3mm
Box Size(W*L*H): Min 50*100*15mm, Max320*420*150mm Edge Folding Depth: Rmin 10mm,Rmax 70mm
Production Speed: 10-20 Boxes/min Air Supply: 10L/min 0.6Mpa
Heater Power: 2.5kw Weight: 700 Kg
High Light:

0.6Mpa Box Wrapping Machine


20 Boxes/Min Box Wrapping Machine

Production:B460 Semi-Automatic Box wrapping machine



The machine is an ideal automation equipment for producing gift boxes and rigid boxes By manual locating the inner box and the facial paper on the assembly line, the fixed box is placed into the machine wood mold, then automatic running: Box gluing,folding, and forming are completed at onetime. 15-25 pieces boxes can be produced per minute, which greatly improves the production efficiency of the rigid box and saves production costs, Because each action is mechanically defensive standardizing the production of the product, greatly improving the quality of the product.


Technical Parameters


PRY-B460 Semi-Automatic Box wrapping machine
Model No. PRY-B460
Paper Size Min 100×200mm, Max 580×800mm
Paper Thickness 100-200g/m2
Cardboard Thickness T 1-3mm
Box Size(W×L×H)

Min 50×100×15mm,


Edge Folding Depth Rmin 10mm,Rmax 70mm
Production Speed 10-20 boxes/min
Air Supply 10L/min 0.6Mpa
Heater Power 2.5kw
Weight 700kg

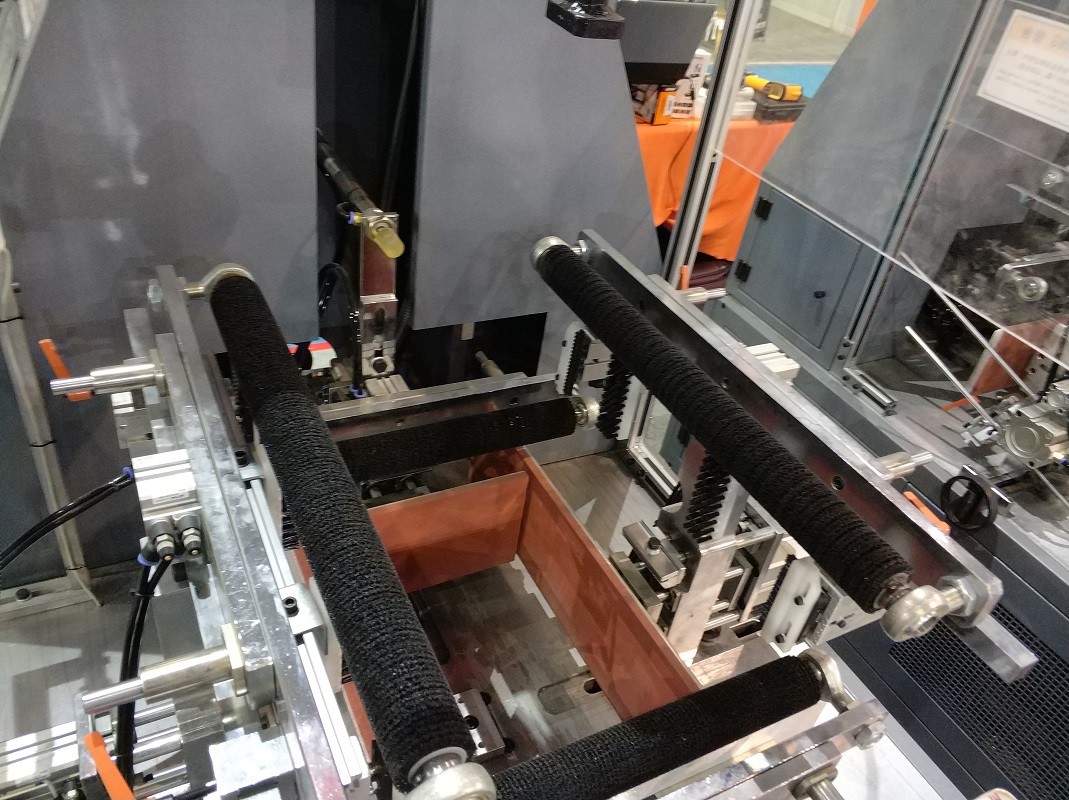

Cardboard 2.5kw 0.6Mpa 20 Boxes/Min Box Wrapping Machine 0



It suits for for making rigid box, gift boxes, packaging boxes. with advantages of small size, easy operation, This machine can automatically start to edge fold and forming and wrap of box.

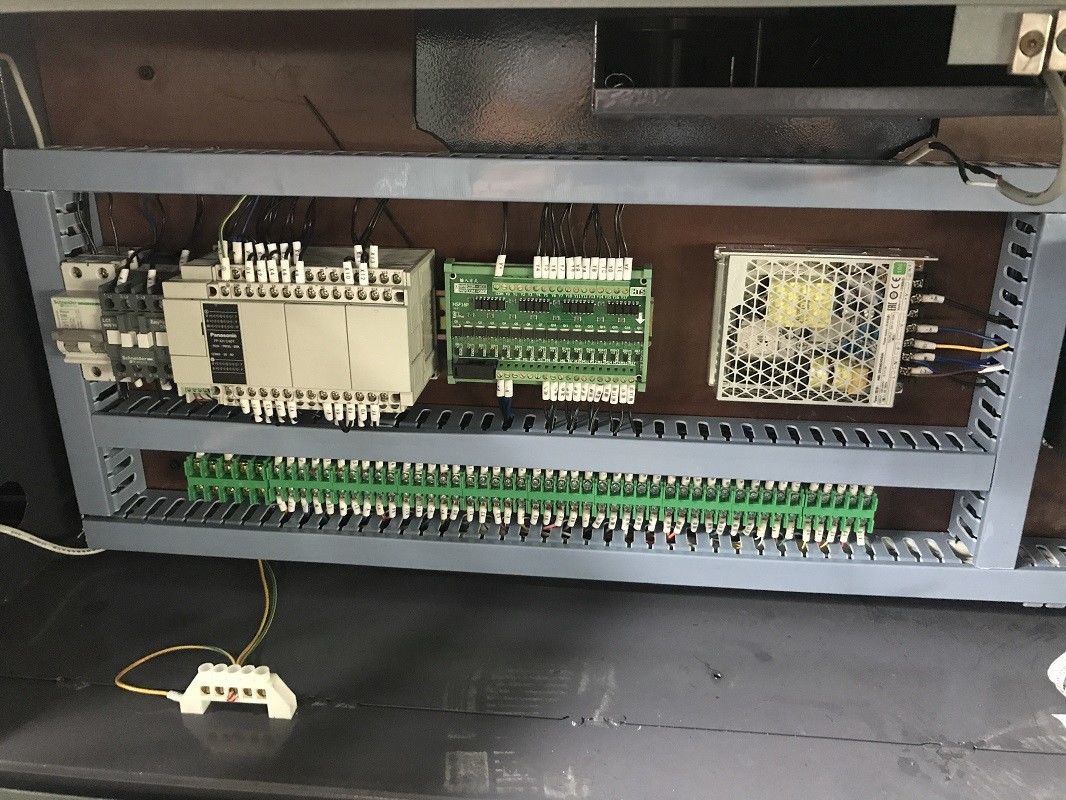

Cardboard 2.5kw 0.6Mpa 20 Boxes/Min Box Wrapping Machine 1


Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 50% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.
