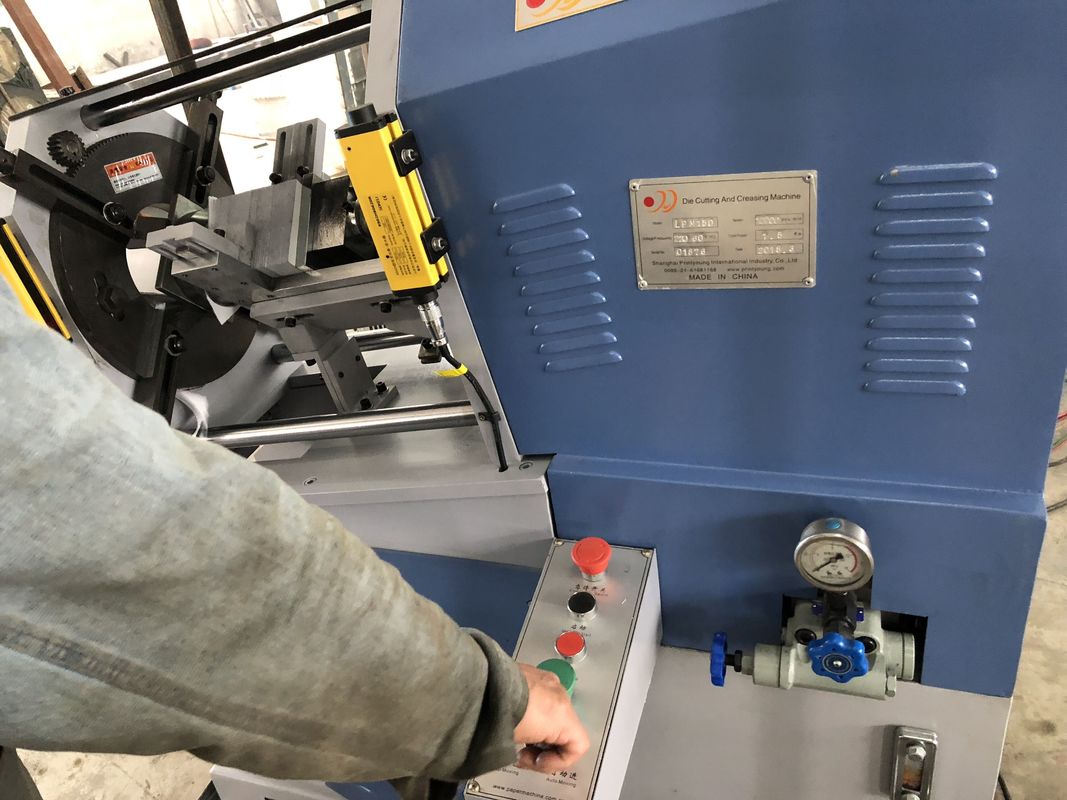

LPM-500 Hydraulic 50KN Beer Labels Paper Punching Machine

Basic Information
Place of Origin: China
Certification: CE
Model Number: PRY-LPM-500
Minimum Order Quantity: 1 Set/Sets
Price: USD8600-10000 Per Set
Packaging Details: wooden case each Punching Machine
Delivery Time: within 40 days
Payment Terms: L/C, T/T
Supply Ability: 40sets per month
Product Name: PM-500 Punching Machine Cutting Size: MAX:270x270mm,MIN:120*120mm
Packing Size: 2500x1040x1660mm Cutting Stroke: 200mm
Nominal Force: 50KN Work Speed: ±12000 Sheets/min
Motor Power: 4kw Net Weight: 900kg
High Light:

Beer Labels Paper Punching Machine


50KN Paper Punching Machine

PRODUCT:PRY-LPM-500 Punching Machine



1. The hydraulic power supply system is stable and reliable

2. Die cutting high precision, trimming neat, no burr

3. Infrared photoelectric protection of fuselage,

4. High safety factor of operation, flexible adjustment of tool loading and unloading


Technical Parameters


PRY-LPM-500 Punching Machine
Model No LPM-150 LPM-220 LPM-280 LPM-400 LPM-500
The maximum cutting size 110x110mm 160x160mm 200x200mm 270x270mm 340x340mm
The minimum cutting size 10x20mm 10x20mm 55x60mm 120x120mm 150x150mm
Cutting stroke 200mm 200mm 200mm 200mm 200mm
Nominal force 16KN 30KN 40KN 50KN 50KN
Work speed ±12000 Sheets/min
Motor power 1.5kw 2.2kw 3kw 4kw 4kw
Net weight 300kg 360kg 560kg 900kg 1140kg
Packing size 1200x850x1400mm 1450x850x1500mm 2300x850x1600mm 2500x1040x1660mm 2700x1140x1860mm



It suits for all kinds of special-shaped die cutting, such as various types of beer labels, food and bever- age labels, cards etc;

LPM-500 Hydraulic 50KN Beer Labels Paper Punching Machine 0



Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 50% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.
