PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate

PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-400W , PRY-600W , PRY-900W
Minimum Order Quantity: 1 Set
Price: USD 1600 ~ 2000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 20 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Model: PRY-400W , PRY-600W , PRY-900W Dimensions: 1000*650*1500mm , 1200*750*1600mm , 1500*750*1700mm
Wrapping Height: 30-280mm , 50-500mm , 50-700mm Wrapping Width: 50-400mm , 60-600mm , 60-900mm
Power: 0.75KW , 0.75KW , 1.0KW Weight: 110KG , 170KG , 160KG
Min. Wraps: 2 (adjustable) Time Per Wrap: 0.4 , 0.5 , 0.9 Sec/wrap, Speed Adjustable
Speed For 3 Wraps: 1.8 Sec , 2.1 Sec , 3 Sec Film Thickness: ≥ 0.015 Mm
Film Width: 15-60mm , 20-80mm , 20-80mm Air Pressure: 0.5 Mpa

PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate

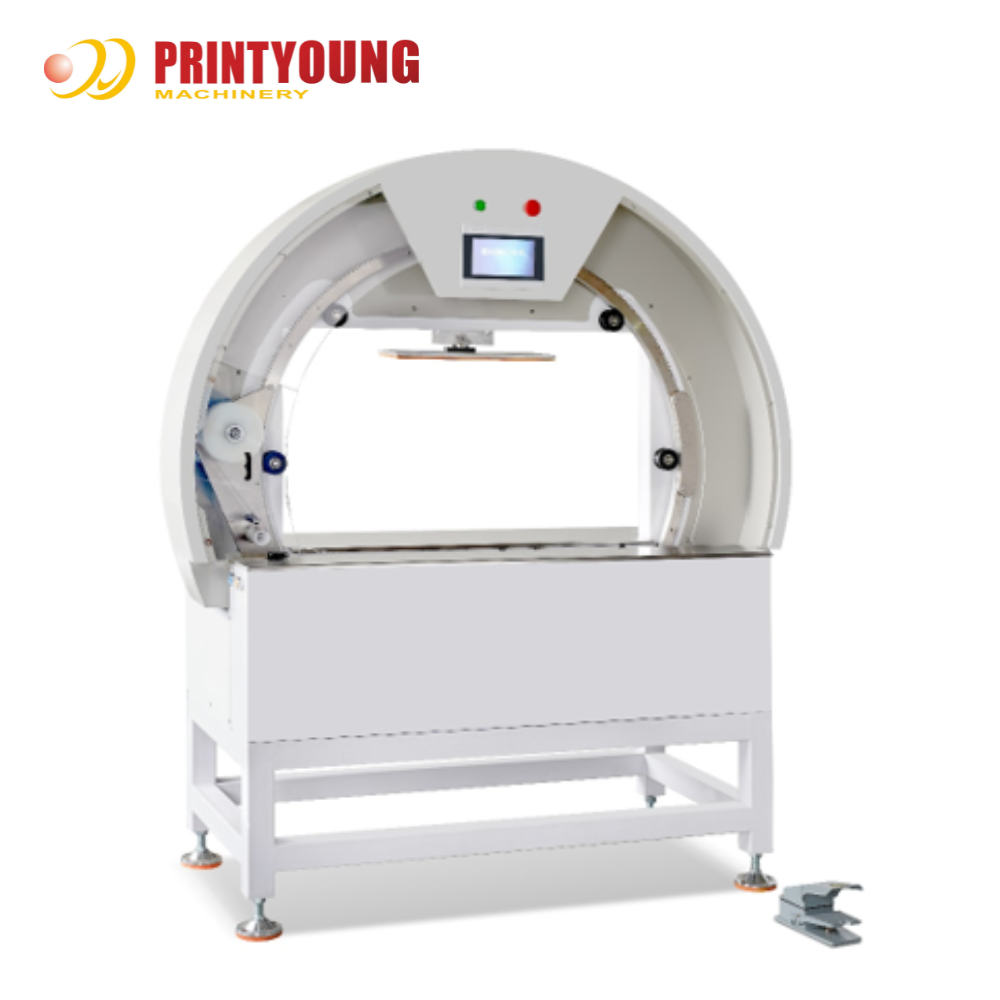

PRY-400W Film Wrapping Machine
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
Features
The latest seamless wrapping machine (film wrapping machine) is highly compatible with corrugated boxes,cartons,paper bags,and corrugated bags.It packs without creases,eliminating the need for linerboards,saving time and effort while maintaining quality!
* Servo motor drive for precise positioning and accurate strapping
* PLC control system ensures stable and reliable operation
* 7-inch touchscreen HMI for intuitive human-machine interaction
* Standard pressing plate prevents product shift for neat, tight packaging
* Pneumatic cutter enables fast, sensitive film cutting to boost efficiency
* PE stretch film protects product surfaces from damage
* More cost-effective than traditional paper bag strapping
Technical Parameters
Model
PRY-400W
 PRY-600W PRY-900W
Dimensions
1000 * 650 * 1500 mm
 1200 * 750 * 1600 mm 1500 * 750 * 1700 mm
Wrapping Height
30 ~ 280 mm
 50 ~ 500 mm 50 ~ 700 mm
Wrapping Width
50 ~ 400 mm
 60 ~ 600 mm 60 ~ 900 mm
Power
0.75 kw
 0.75 kw 1.0 kw
Voltage
220V / 50Hz
 220V / 50Hz 220V / 50Hz
Weight
110 kg
 170 kg 260 kg
Air Pressure
0.5 MPa
 0.5 MPa 0.5 MPa
Min. Wraps
2 (adjustable)
 2 (adjustable) 2 (adjustable)
Time per Wrap
0.4 sec/wrap , speed adjustable
 0.5 sec/wrap , speed adjustable 0.9 sec/wrap , speed adjustable
Speed for 3 Wraps
1.8 sec
 2.1 sec 3 sec
Film Thickness
≥ 0.015 mm
 ≥ 0.015 mm ≥ 0.015 mm
Film Width
15 ~ 60 mm
 20 ~ 80 mm 20 ~ 80 mm
Configuration
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to OperatePRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
                             Servo Motor                                                          7-inch Touch Screen
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to OperatePRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to OperatePRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to OperatePRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
        Cylinder Drive                        PE Wrapping Film                             Drive                       Standard Pressure Plate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
