FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function

FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: FM-390S FM-520S
Minimum Order Quantity: 1 Set
Price: USD 1500 ~ 1900 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 20 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Model: FM-390S , FM-520S Max. Paper Size: 375 * 570 Mm , 505 * 570 Mm
Min. Paper Size: 150 * 150 Mm Operating Speed: 0 ~ 13 M/min
Laminating Temperature: 50 ~ 120 ℃ Total Power: 2 Kw
Hydraulic Pressure: 3 ~ 4 MPa Dimensions: 1.57 * 0.7 * 1.24 M , 1.57 * 0.83 * 1.24 M
Paper Thickness: 125 ~ 350 Gsm Pneumatic Pressure: 0.4 ~ 0.6 MPa

FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function

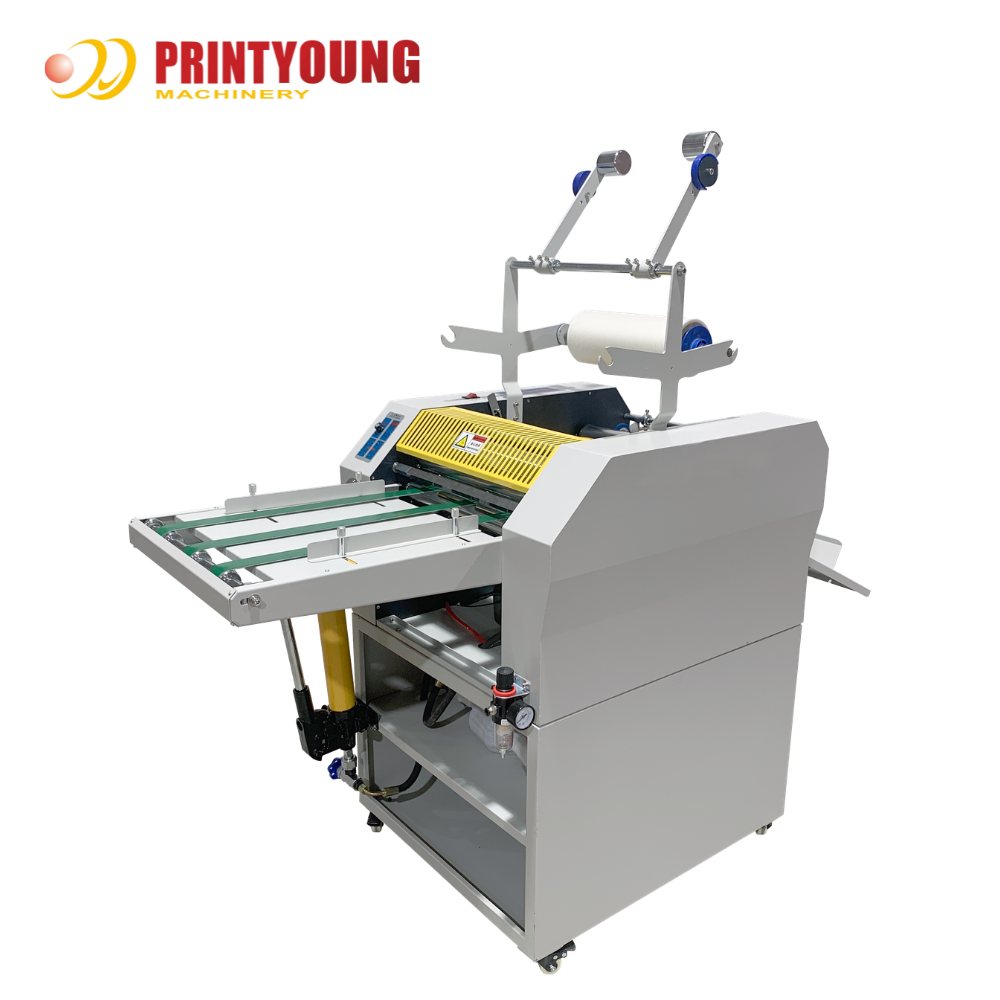

FM-390S Hydraulic Film Laminator
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut FunctionFM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
Features
The machine is a semi-automatic oil heating laminating machine.It has a stepless speed governor reducer to adjust the speed and hydraulic pump to provide high pressure. It has double film racks,anti curl device.It can cut off paper andoverlap automatically and colllect papers orderly.The heating roller is treated with high brightness mirror.The pressure roller uses imported silicon material,which is pressure resistant and high temperature resistant and non-adhesive.
Technical Parameters
FM-390S Hydraulic Film Laminator
Model
FM-390S
 FM-520S
Max. Paper Size
375 * 570 mm
 505 * 570 mm
Min. Paper Size
150 * 150 mm
 150 * 150 mm
Operating Speed
0 ~ 13 m/min
 0 ~ 13 m/min
Laminating Temperature
50 ~ 120 ℃
 50 ~ 120 ℃
Total Power
2 kw
 2 kw
Hydraulic Pressure
3 ~ 4 MPa
 3 ~ 4 MPa
Dimensions
1.57 * 0.7 * 1.24 m
 1.57 * 0.83 * 1.24 m
Paper Thickness
125 ~ 350 gsm
 125 ~ 350 gsm
Pneumatic Pressure
0.4 ~ 0.6 MPa
 0.4 ~ 0.6 MPa
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
