Name: ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: ZX-800
Price: 23500 USD
Availability: InStock

ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine

Basic Information

Place of Origin:	China
Brand Name:	PRINTYOUNG
Certification:	CE
Model Number:	ZX-800

Minimum Order Quantity:	1 Set
Price:	USD 23500 Set
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	30 Sets per Month

Contact Now

Production Capacity:

15 ~ 20 Times/min

Paper Size:

300 * 250 Mm

Max. Box Size:

250 * 150 * 100 Mm

Min. Box Size:

90 * 110 * 23 Mm

E-power Voltage:

380V 50Hz

Suitable Material:

PE Coated Paper

Paper Thickness:

200 ~ 300 G/m²

Total Power:

6 Kw

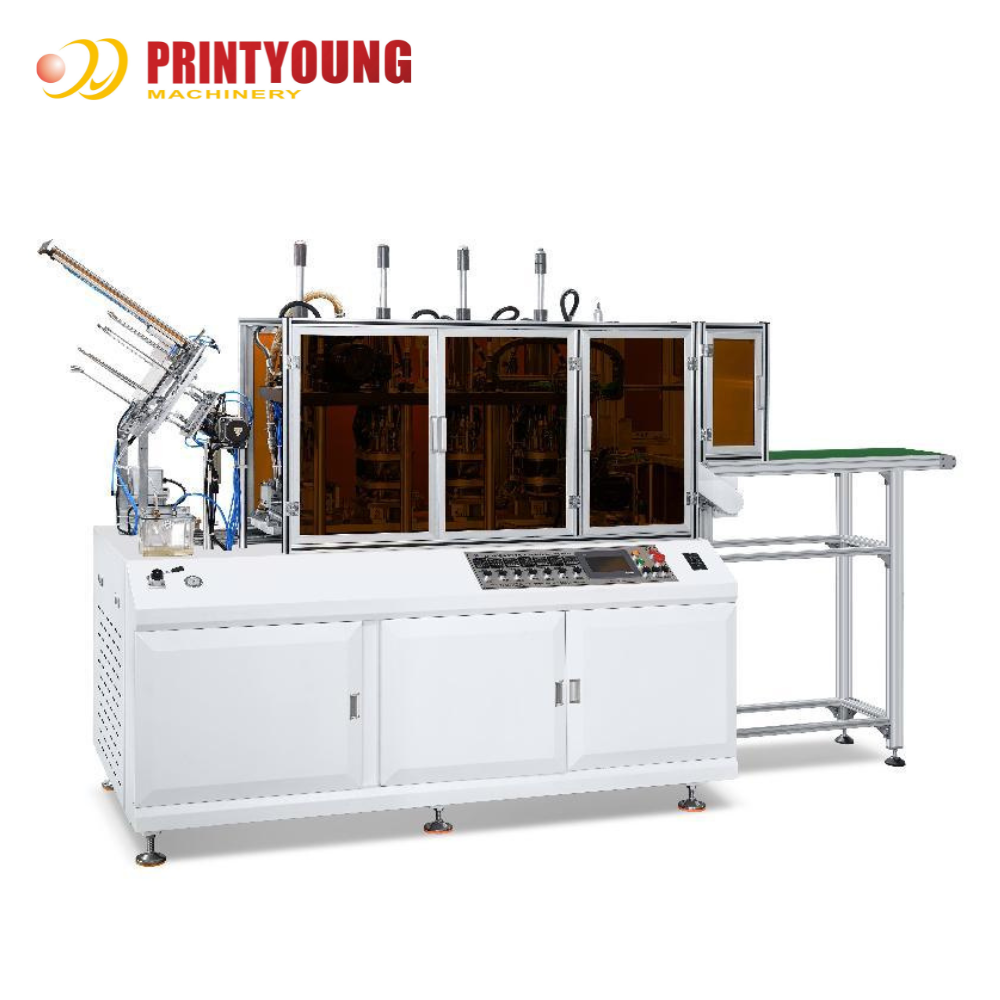

ZX-800 Automatic Square Bowl Forming Machine

Features

Automatic square bowl forming machine is a multi-station forming machine.It uses a microcomputer to control the servo system to automatically take paper,full servo forming,curling,counting and collecting continuous processes. Compared with traditional automatic paper product forming equipment,this equipment recombines the principles of pneumatic and mechanical combination,and has the advantages of higher production speed,more stable performance,safer operation,more convenient maintenance and more humanized structural design.

Technical Parameters

Type	ZX-800
Production Capacity	15 ~ 20 times/min (actual production according to product size)
Paper Size	300 * 250 mm
Max. Box Size	250 * 150 * 100 mm
Min. Box Size	90 * 110 * 23 mm
E-power Voltage	380V 50Hz (can be changed)
Suitable Material	PE coated paper
Paper Thickness	200 ~ 300 g/m²
Total Power	6 kw
Total Weight	700 kg
Overall Dimension	2100 * 750 * 1800 mm
Working Air Source	air pressure 0.2 ~ 0.3 Mpa (need to buy compressor)
