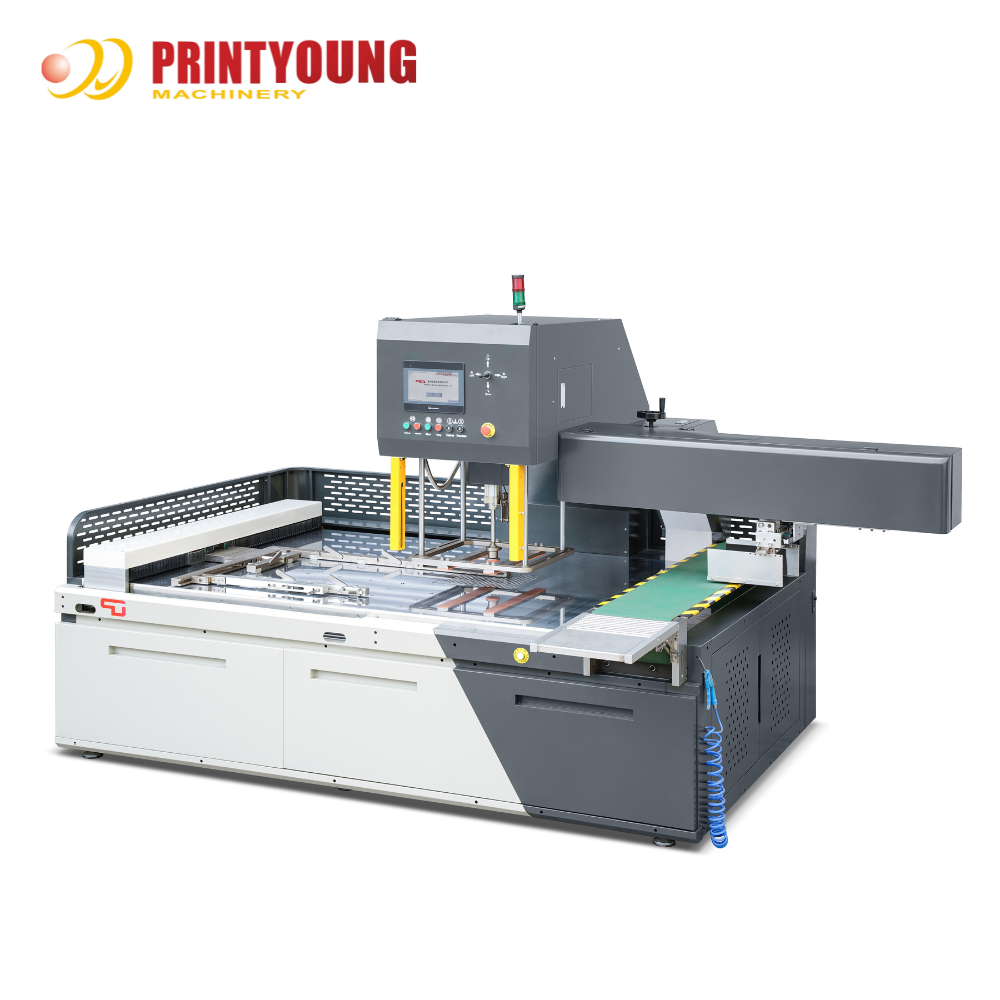

PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm

PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-1080TR
Minimum Order Quantity: 1 Set
Price: USD 22000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Machine Floor Area: 3600 * 2050 * 1950 Mm Max. Sheet Size: 1080 * 780 Mm
Min. Sheet Size: 650 * 450 Mm Max. Pile Height: 100 Mm
Min. Pile Height: 40 Mm Max. Blanking Size: 450 * 450 Mm
Min. Blanking Size: 30 * 30 Mm Max. Work Speed: 20 Cycles/minute
Pressure: 70 Bar Robot Arm Grip Range: 30 ~ 300 Mm
Robot Arm Grip Weight: 0.05 ~ 1.8 Kgs Rotate Speed / Route: 10 ~ 80 Mm/second ; 180 Degrees

PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 0
PRY-1080TR Paper Stripping Machine
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 1
Features
* Fully Automatic.
* Single head blanking system for running sheets with nested blanks.
* 180-degree rotating frame to blank the products of opposite layout easily.
* Robot arm picks products automatically after each cycle is completed.
* Heavy-duty,quality-built single support base.
* Equipped with high-precision linear bearing rails and servo motors for smooth and precise frame movement.
* Operator friendly touch screen for quick and simple programing.
* Can be customized according to customers’ job demand.
* Adopts servo motor,double guide rail and ball screw which makes accuracy.
* Hydraulic system with inserted motor and oil temperature cooling fan ensures constant and big working pressure.
* Automatic lubrication system with timely maintenance extends the service life of the machine.
* The complete machine takes much less space and is equipped with PLC,touch screen interface in operation.
Technical Parameters
Machine Floor Area
3600 * 2050 * 1950 mm
Max. Sheet Size
1080 * 780 mm
Min. Sheet Size
650 * 450 mm
Max. Pile Height
100 mm
Min. Pile Height
40 mm
Max. Blanking Size
450 * 450 mm
Min. Blanking Size
30 * 30 mm
Max. Work Speed
20 cycles/minute
Pressure
70 bar
Robot Arm Grip Range
30 ~ 300 mm
Robot Arm Grip Weight
0.05 ~ 1.8 kgs
Rotate Speed / Route
10 ~ 80 mm/second ; 180 degrees
Total Power
5.4kw 380V
Net Weight
2500 kgs
Gross Weight
2800 kgs
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 2
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 3
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 4
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 5
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 6
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 7
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 8
