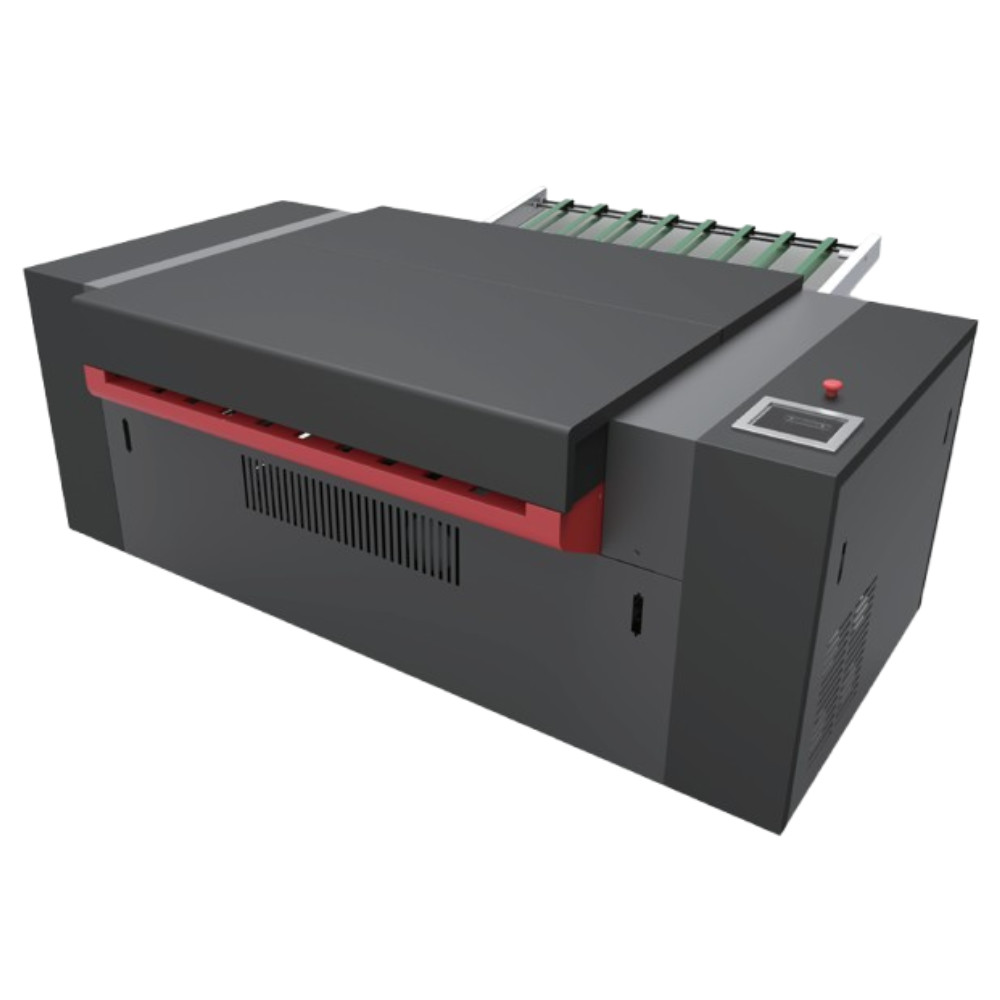

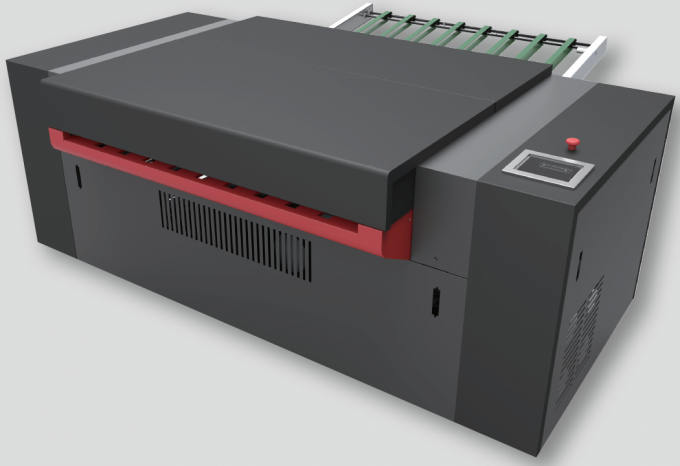

DX1160ET/U Offset Thermal & UV CTP Plate Making Machine

DX1160ET/U Offset Thermal & UV CTP Plate Making Machine
DX1160ET/U Offset Thermal & UV CTP Plate Making Machine
DX1160ET/U Offset Thermal & UV CTP Plate Making Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: DX1160ET/U
Minimum Order Quantity: 1 Set
Price: US 30000 ~ 36000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Model: DX1160ET/U Resolution: 2400dpi / 1200dpi(optional)
Exposure Structure: External Drum Max. Plate Size: 1130 * 930 Mm
Min. Plate Size: 400 * 300 Mm Max. Hanged Line: 300 Lpi
FM Dots Output: AM/FM Hybrid Screening Repeatability: ± 0.005 Mm
Power Supply: AC 220V 50/60Hz 6kw Peak(single Phase) External Dimension: 2400 * 1375 * 1090 Mm

DX1160ET/U Offset Thermal & UV CTP Plate Making Machine 0
DX1160ET/U Offset CTP Plate Making Machine
DX1160ET/U Offset Thermal & UV CTP Plate Making Machine 1
DX1160ET/U Offset Thermal & UV CTP Plate Making Machine 2
Technical Parameters
DX1160ET/U Offset CTP Plate Making Machine
Model
DX1160ET/U-32
 DX1160ET/U-48 DX1160ET/U-64 DX1160ET/U-96
Laser System

 830/405nm LD , 32channels

 830/405nm LD , 48channels 830/405nm LD , 64channels 830/405nm LD , 96channels
Resolution
2400dpi / 1200dpi(optional)
Output Speed
(2400dpi,1030*800mm,
Online Plate Making)

15 p/h
 21 p/h 25 p/h 31 p/h
Output Speed
(1200dpi,575*800mm,
Online Plate Making)

28 p/h
 36 p/h 40 p/h 45 p/h
Exposure Structure
external drum
Max. Plate Size
1130 * 930 mm
Min. Plate Size
400 * 300 mm
Plate Thickness
thermal(830nm) 0.15 ~ 0.4 mm / processless thermal ctp plate / uv(405nm) 0.15 ~ 0.4 mm
Max. Hanged Line
300 lpi
FM Dots Output
AM/FM hybrid screening
Repeatability
± 0.005 mm
Power Supply
AC 220V 50/60Hz 6kw peak(single phase)
External Dimension
2400 * 1375 * 1090 mm
Weight
1400 kg
DX1160ET/U Offset Thermal & UV CTP Plate Making Machine 3
DX1160ET/U Offset Thermal & UV CTP Plate Making Machine 4
DX1160ET/U Offset Thermal & UV CTP Plate Making Machine 5
DX1160ET/U Offset Thermal & UV CTP Plate Making Machine 6
DX1160ET/U Offset Thermal & UV CTP Plate Making Machine 7
DX1160ET/U Offset Thermal & UV CTP Plate Making Machine 8
DX1160ET/U Offset Thermal & UV CTP Plate Making Machine 9
