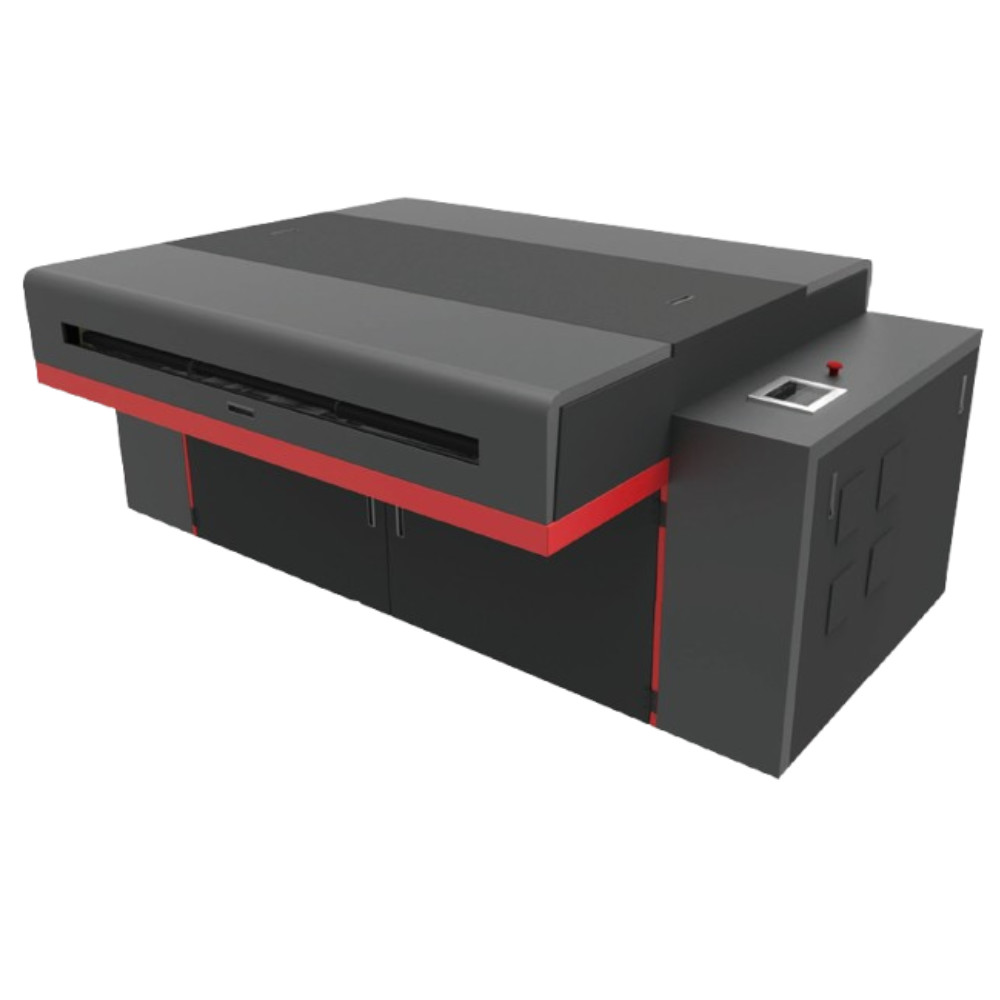

DX1450T Offset Thermal & UV CTP Plate Making Machine

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: DX1450T
Minimum Order Quantity: 1 Set
Price: US 53500 ~ 56500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Model: DX1450T-64 , DX1450T-96 Laser System: 830nm LD , 64/96channels
Resolution: 2400 Dpi Exposure Structure: External Drum
Max. Plate Size: 1450 * 1180 Mm Min. Plate Size: 650 * 550 Mm
Max. Hanged Line: 300 Lpi FM Dots Output: AM/FM Hybrid Screening
Repeatability: ± 0.005 Mm Weight: 2000 Kg

DX1450T Offset Thermal & UV CTP Plate Making Machine 0
DX1450T Offset CTP Plate Making Machine

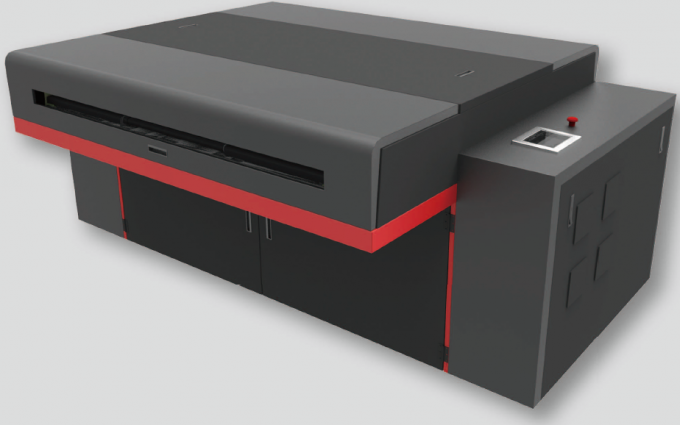

DX1450T Offset Thermal & UV CTP Plate Making Machine 1

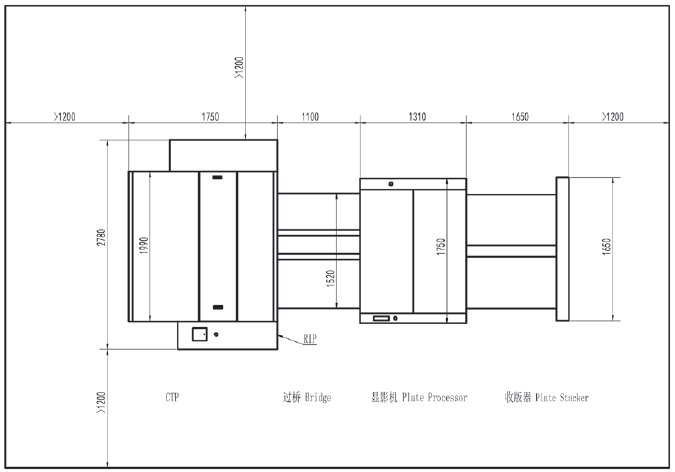

DX1450T Offset Thermal & UV CTP Plate Making Machine 2
Technical Parameters
DX1450T Offset CTP Plate Making Machine
Model
DX1450T-64
DX1450T-96
Laser System
830nm LD , 64channels
830nm LD , 96channels
Resolution
2400 dpi
Output Speed(1450*1150mm)
18 p/h
23 p/h
Exposure Structure
external drum
Max. Plate Size
1450 * 1180 mm
Min. Plate Size
650 * 550 mm
Plate Thickness
thermal(830nm) 0.15 ~ 0.4 mm processless thermal ctp plate
Max. Hanged Line
300 lpi
FM Dots Output
AM/FM hybrid screening
Repeatability
± 0.005 mm
Power Supply
380V 3Φ 50/60Hz 10kw peak
External Dimension
2736 * 1750 * 1350 mm
Weight
2000 kg
DX1450T Offset Thermal & UV CTP Plate Making Machine 3
DX1450T Offset Thermal & UV CTP Plate Making Machine 4
DX1450T Offset Thermal & UV CTP Plate Making Machine 5
DX1450T Offset Thermal & UV CTP Plate Making Machine 6
DX1450T Offset Thermal & UV CTP Plate Making Machine 7
DX1450T Offset Thermal & UV CTP Plate Making Machine 8
DX1450T Offset Thermal & UV CTP Plate Making Machine 9
