| Place of Origin: | China |
|---|---|
| Brand Name: | PRINTYOUNG |
| Certification: | CE |
| Model Number: | S490 |
| Minimum Order Quantity: | 1 Set |
| Price: | US 1550 Set |
| Packaging Details: | Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 Set/Sets per Month |
| Max. Feeding Paper: | 150 Pcs | Paper Width: | 185 ~ 350 Mm |
|---|---|---|---|
| Paper Length: | 150 ~ 500 Mm | Max. Cutting Speed: | 1200 Mm/s |
| Max. Cutting Force: | 500 G | Feeding Way: | Continue Feeding |
| Positioning Method: | CCD | Display Language: | English / Chinese |
| Interface: | USB + U Disk + TCP (Wifi Optional) | Color: | White / Black |
| N.W. / G.W.: | 40kgs / 45kgs | Packing Size: | 870 * 610 * 500 Mm |
| Driver: | Servo Motor | Mechanical Resolution: | 0.0254 Mm/step |
| Repeatability: | 0.127 Mm | Operating Environment: | Temperature : +5℃ To +35℃ , Relative Temperature 30% ~ 70% |
| Operation System: | Windows XP , Windows 7 , Windows 8 , Windows 10 | Compatible Software: | AID Cut Software / Coreldraw / AI |


|

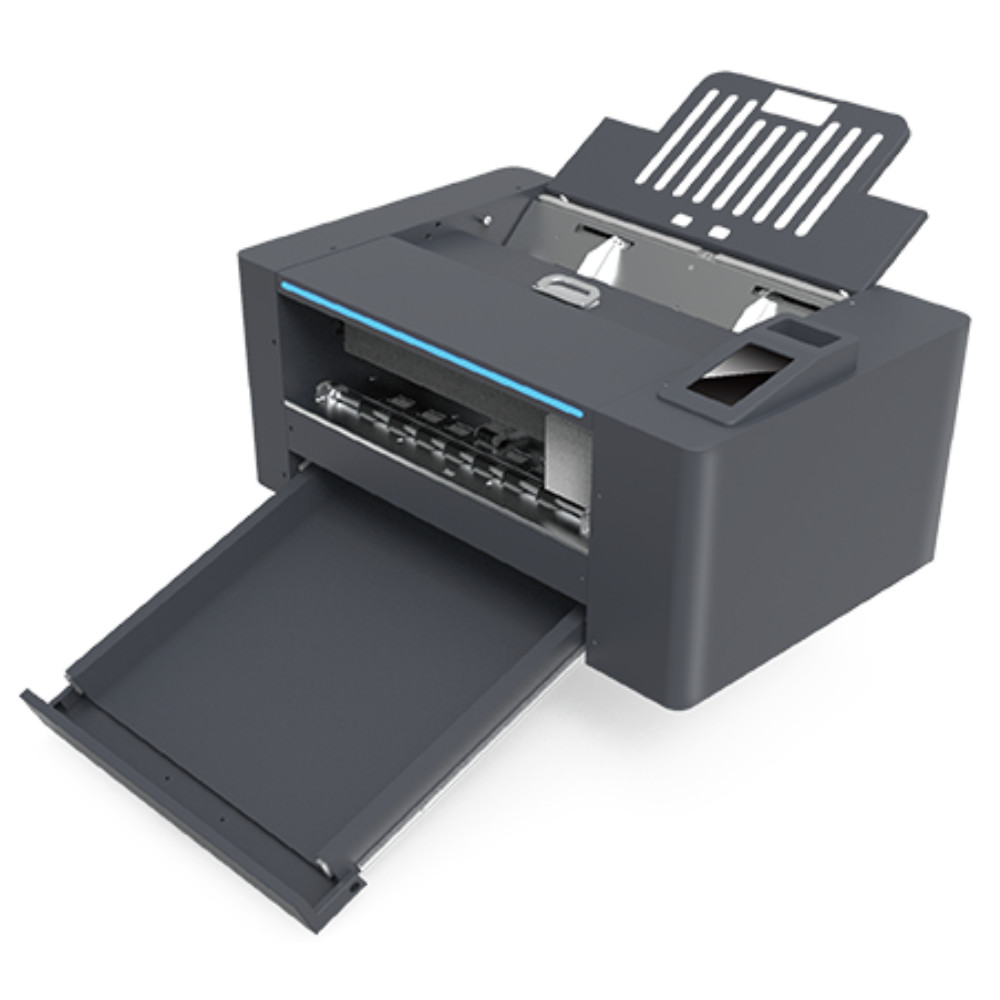

S490 Digital Label Die Cutting Machine
|
||||
|---|---|---|---|---|
|
Max. Feeding Paper
|
150 pcs
|
|||
|
Paper Width
|
185 ~ 350 mm
|
|||
|
Paper Length
|
150 ~ 500 mm
|
|||
|
Max. Cutting Speed
|
1200 mm/s
|
|||
|
Max. Cutting Force
|
500 g
|
|||
|
Feeding Way
|
Continue Feeding
|
|||
|
Positioning Method
|
CCD
|
|||
|
Display Language
|
English / Chinese
|
|||
|
Interface
|
USB + U Disk + TCP (Wifi Optional)
|
|||
|
Color
|
White / Black
|
|||
|
N.W. / G.W.
|
40kgs / 45kgs
|
|||
|
Packing Size
|
870 * 610 * 500 mm
|
|||
|
Driver
|
Servo Motor
|
|||
|
Mechanical Resolution
|
0.0254 mm/step
|
|||
|
Repeatability
|
0.127 mm
|
|||
|
Operating Environment
|
Temperature : +5℃ to +35℃ , Relative Temperature 30% ~ 70%
|
|||
|
Operatin System
|
Windows XP , Windows 7 , Windows 8 , Windows 10
|
|||
|
Compatible Software
|
AID cut software / Coreldraw / AI
|
|||
