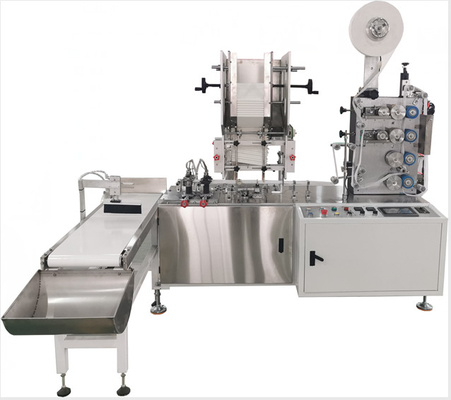

PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line

PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRYXG
Minimum Order Quantity: 1 Set
Price: US 53200 ~ 55400 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Voltage: 380 V Slitting Speed: 10 ~ 150 M/min
Max Feeding Width: 700 Mm Max Rewinding Diameter: 600 Mm
Paper Layer: 3 Or 4 Layers Hot Air Temperature: 70 ~ 150 ℃
Individual Packing Speed: > 500 Pcs/min Group Packing Speed: 15 Packets Per Minute
Finished Bag Length: 250 ~ 480 Mm

PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 0
1.PRYFQ-150 Paper Slitter Rewinder
Click on the picture to jump to the product details page!
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 1

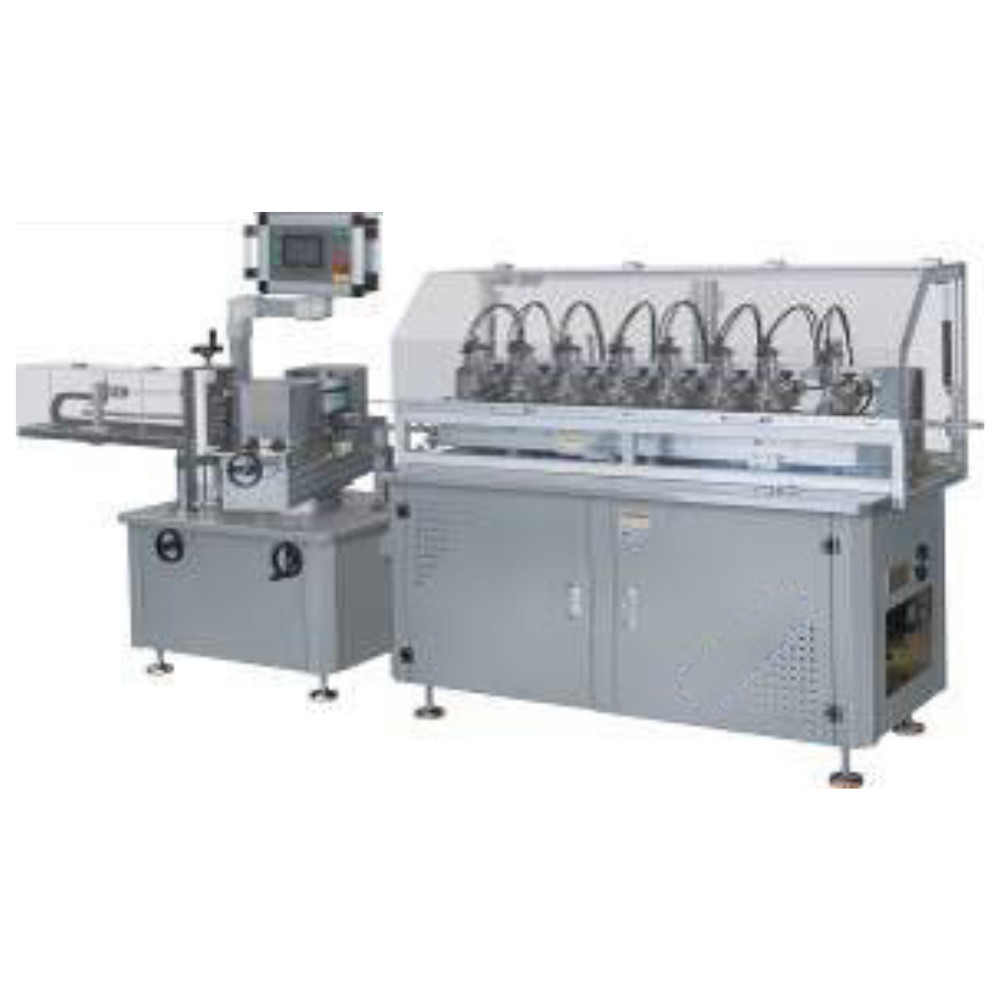

2.1.PRYXG-80 Paper Straw Machine
Click on the picture to jump to the product details page!
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 2

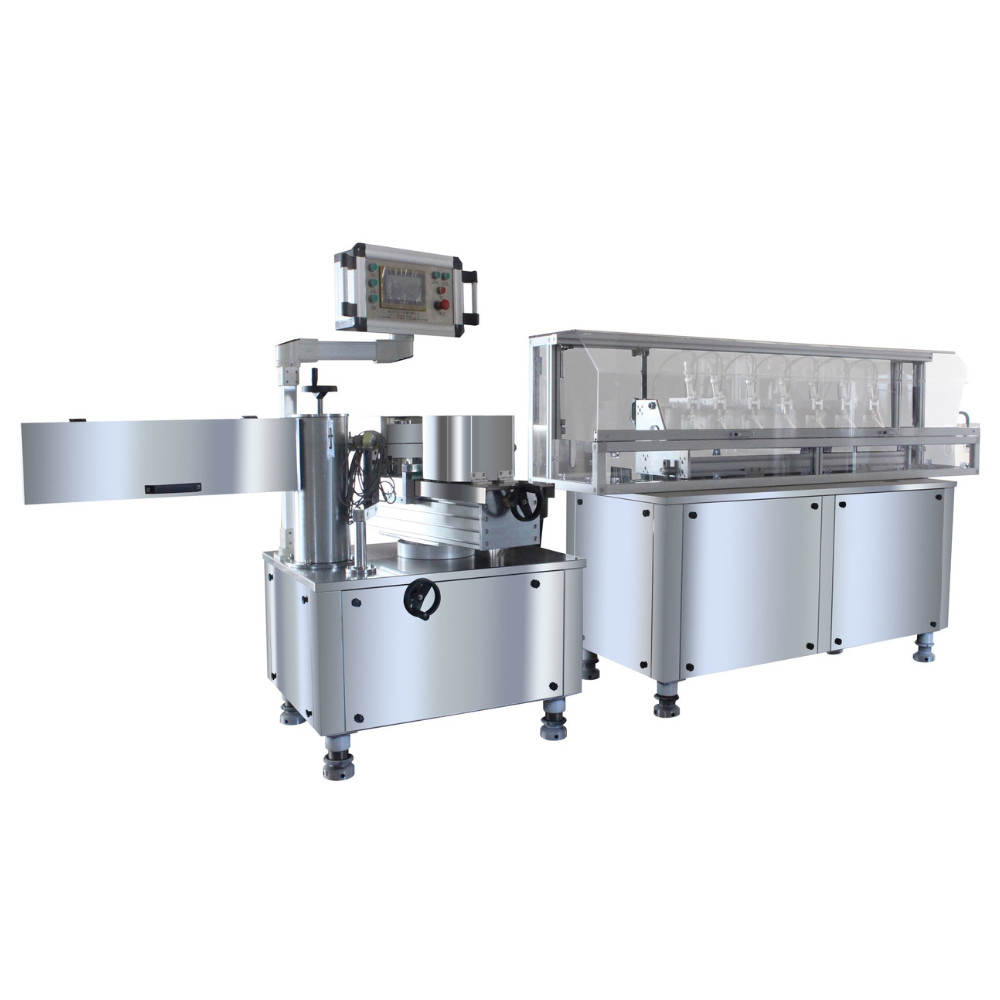

2.2.PRYXG-100 Paper Straw Machine
Click on the picture to jump to the product details page!
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 3
3.PRYHG-50 Paper Straws Drying Unit with Sterilization Function
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 4PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 5
Feature
1.Consist of 2 parts:narrow conveyor;drying & collecting part
2.Hot air temperature:70~150℃(adjustable)
3.Heating power:8kw
4.Usage:accelerate removal of moisture and make paper straws stronger.

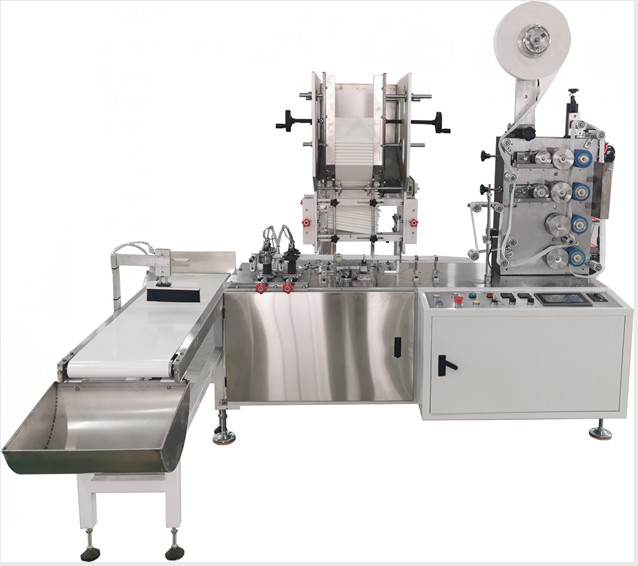

4.PRYBZ-50 Individual Packing Machine
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 6
Technical Parameters
Straw Specification
Standard Length
150 ~ 260 mm
Standard Diameter
5 ~ 12 mm
Packing Length
210 ~ 315 mm
Packing Model
Paper Type
Wrapping Paper
Sealing Type
3 Side Sealing
Paper Width
28 ~ 50 mm(According to Paper Straw OD)
Production Speed
Without Printing
＞ 500 pcs/min
Total Power
1.5 kw
Over Size
1900 × 1000 × 1600 mm
Weight
400 kg
Configuration
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 7PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 8

Servo Driving Motor

Traction roller:1set;Side sealing:1set;Cutting knife:1set.
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 9PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 10

Straw Feeding Hopper

Material:stainless steel frame
Plexiglass:adjustable to match straw length
Straw feeding device:induction and swing arm
Feeding model:Cam drives the rubber roller to clamp the material

Paper Unwinding Frame

1Set
Tension adjust:Analog automatic tension control
Wrap paper roller core size:3 inch,and 4.7 inch
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 11PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 12

Conveyor Belt

1set
synchronous reduction motor + controller
Counter dam-brush:one set,lifting by pneumatic cylinder

Sealing and Cutting Parts

Lengthways sealing:sealing roller-1 couple, pressure adjusted by manual
Horizontal:sealing roller-1 couple,pressure adjusted by manual,with cutting knife-one couple
Material:mould steel
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 13
Controller
Counter:1set,HUALI Brand
Controlling inverter:1.1KW Schneider
Temperature controller:1set,KEQIANG Brand
Electric parts:Schneider
Application
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 14
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 15PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 16
Individual packed with double colors logo.
5.PRYBZ-100 Group Packing after Individual Packing
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 17
Technical Parameters
Type of Straw
Paper Straw;PLA Straw;Plastic Straw
Voltage
220 V Single Phase 50 Hz
Rated Power
2 kw
Tail Packing Speed
15 packs per minute (adjustable)
Max Diameter of Packing Film
400 mm
Max Packing Film Width
300 ~ 650 mm
Finished Bag Length
250 ~ 480 mm
Components
Touch Screen ; Double Servo Motors ; Servo Driver
Dimension
2200 x 1800 x 1250 mm
Weight
400 kgs
Application
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 18
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 19
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 20
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 21
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 22
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 23
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 24
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 25PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 26PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 27
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 28PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 29PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 30
PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line 31
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
