Home ProductsPaper Processing MachineryPRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine

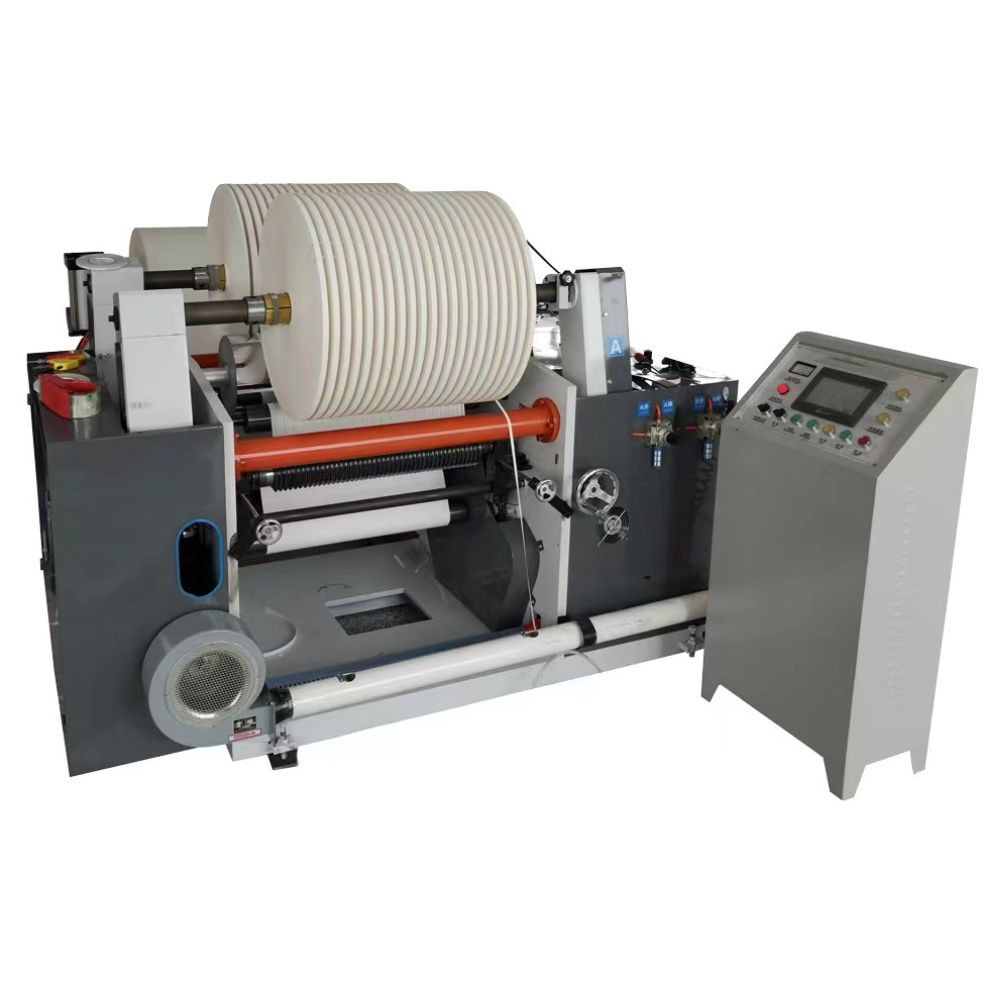

PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine

PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine
PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine
PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRYFQ-150
Minimum Order Quantity: 1 Set
Price: US 14000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Type: Slitting Rewinder Voltage: 380 V
Dimension: 2100 * 1300 * 1000 Mm Material Paper: 20 ~ 120 Gsm
Max Unwinding Diameter: 1000 Mm Max Rewinding Diameter: 600 Mm
Max Slitting Width: 700 Mm Air Shaft OD: 76 Mm (3")
Working Speed: 10 ~ 150 M/min Power: 7.5 Kw
Weight: 1700 Kgs

PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine 0
PRYFQ-150 Paper Slitter Rewinder
PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine 1
PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine 2PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine 3PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine 4PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine 5
Features
The machine consists of corrective unwinding institutions,cutting structure,the rolling bodies,transmission and electrical control.
Technical Parameters
PRYFQ-150 Paper Slitter Rewinder
Material Paper
20 - 120 g/m2
Max Unwinding Diameter
1000 mm
Max Rewinding Diameter
600 mm
Max Slitting Width
700 mm
Air Shaft OD
76 mm (3”)
Working Speed
10 - 150 m/min
Power
7.5 kw
Dimension
2100 * 1300 * 1000 mm
Weight
1700 kgs
Configuration

Unwinding Part

The device has a manual aspect of offset can be eliminated due to the tension of raw material at both ends arising from bohou or paper core non-circularity different and wrinkled.Unwinding tension to the high linear magnetic powder brake actuator output torque balancing the tension fluctuation can be reduced to a minimum.

Slitting Part

The agency uses carbide precision disc knife (slitting relatively thick aluminum foil,paper and other materials) or (and) straight knife cutting (slitting general plastic film),neat incision,long life,cutting up and down knife shaft width adjustment processing,between the upper and lower blade shaft gear speed matching.Turning the handwheel implementation under the knife,the knife continues to rotate automatically rely.

Rewinding Part

The agency uses the left-right axis biaxial winding winding with pressure arm balance internal and external pressure.The transmission uses two independent magnetic particle motor drive uniaxial tension adjustable.

Transmission Part

The inverter is used to control the main motor operation,convenient lifting speed,the speed adjustment the excessive soft,smooth.
Drive mode:General inverter control of AC motor drive
Specification:7.5KW exchange motor
Supporting inverters (domestic well-known brand,quality assurance)

PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine 6
PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine 7
PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine 8
PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine 9
PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine 10
PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine 11
PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine 12
PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine 13
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
