Home ProductsPaper Processing MachineryZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal

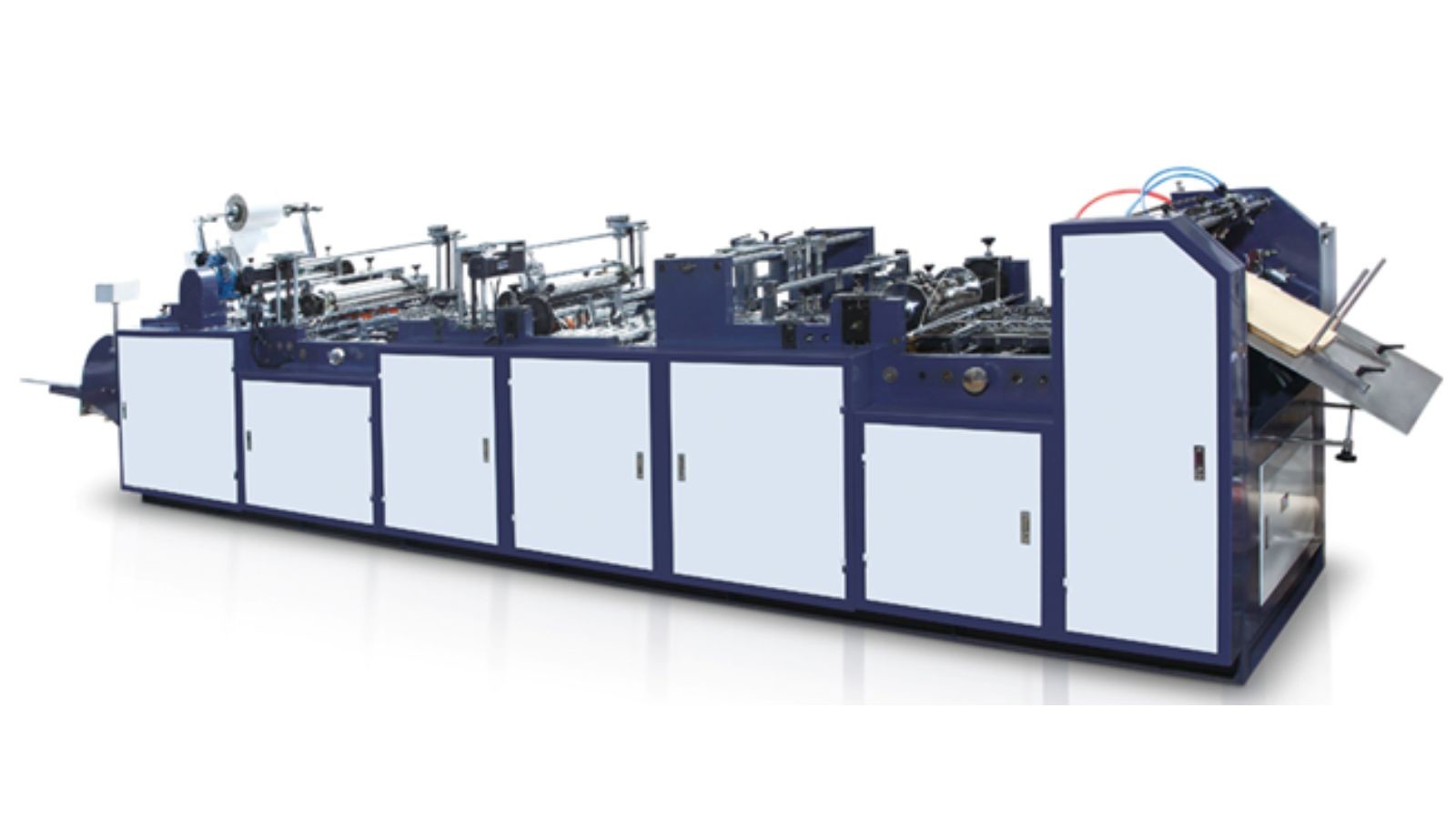

ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal

ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal
ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: ZF-480
Minimum Order Quantity: 1 Set
Price: US 40000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Model: ZF-480 Paper Thickness: 70-150 Gsm
Capacity: 3000-10000 Pcs/hour Size Ranges Pocket Envelopes: Min.85mm X 85mm Max.229mm X 324mm
Size Ranges Wallet Envelopes: Min.85mm X 85mm Max.230mm X 160mm Tape Width: 16-30mm
Machine Weight: 2800kg Power: 9kw
Machine Size: 5500x1100x1300mm Product Type: Envelope Making Machine
Processing Type: Envelope Forming Machine Voltage: 380V
Finished Products: Envelope Raw Material: Paper
High Light:

Pocket Wallet Envelope Making Machine

,

ZF-480 Self Seal Envelope Making Machine

,

150gsm Paper Processing Machinery

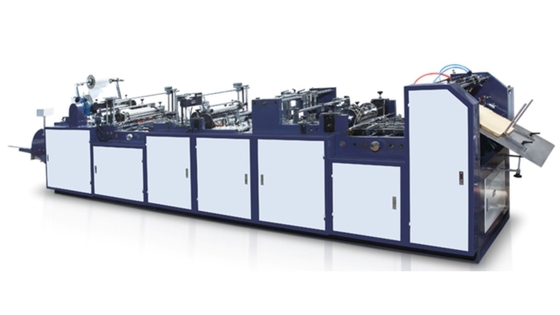

ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 0
ZF-480 Envelope Making Machine

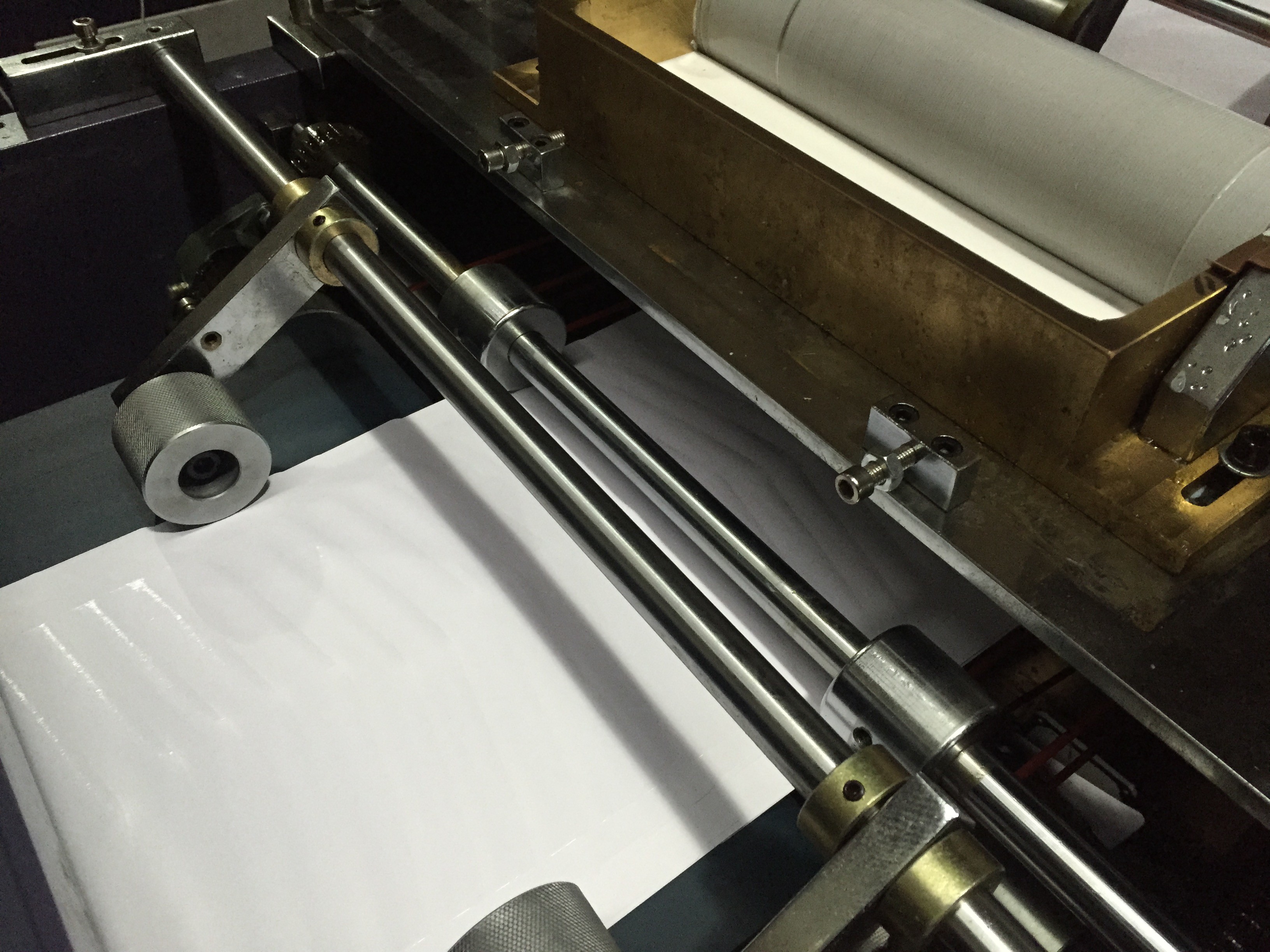

ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 1
Features
ZF-480 automatic self seal envelope making machine envelope machine is specially designed for producing wallet envelopes with self-seal function.
It's gluing system can stop gluing automatically when the machine is short of paper during running;also it's provided with a finished product counter and an automatic rotary delivery unit,also featured by stable performance as well as fast and accurate debugging during mass production.
Technical Parameters
ZF-480 Envelope Making Machine
Model
ZF-480
Paper Thickness
70-150 gsm
Capacity
3000-10000 pcs/hour
Size Ranges Envelopes
Pocket Envelope(Optional)
Min.85mm x 85mm   Max.229mm x 324mm
Wallet Envelope
Min.85mm x 85mm   Max.230mm x 160mm
Tape Width
16-30mm
Machine Weight
2800kg

 Power
9kw
Machine Size
5500x1100x1300mm



ZF-480A Envelope Making Machine
Model
ZF-480A
Paper Thickness
 70-150 gsm
Output per hour
 3000-8000 pieces
Size Ranges Envelopes
Pocket Envelop(Optional)
Min.90mm x 90mm – Max.324mm x 458mm
Wallet Envelope
Min.90mm x 90mm – Max.229mm x 324mm
Tape Width 16-30mm
Machine Weight
3200kg
Power
 12kw
Machine Size
6500x1250x1400mm

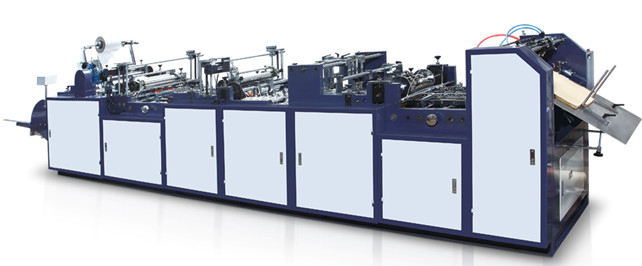

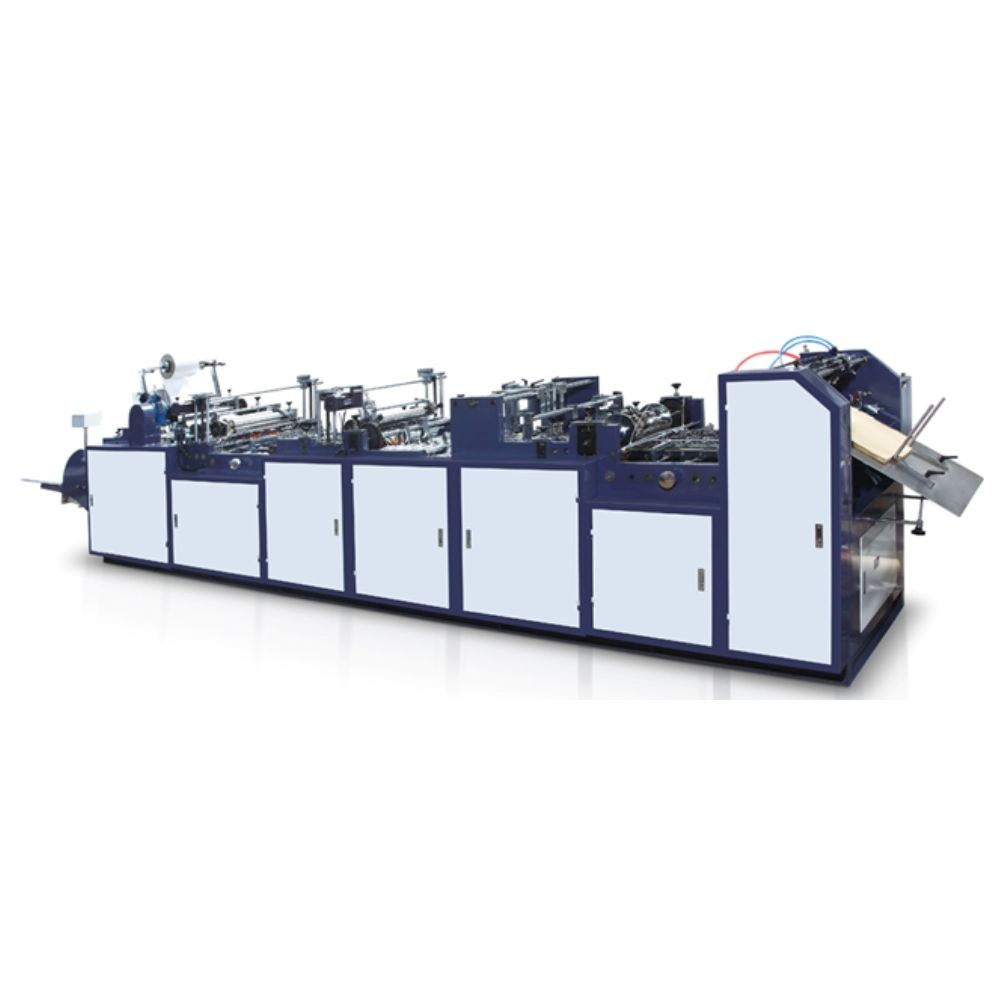

ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 2ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 3

Principal Configuration List
No.
Name
Qty
Brand
Remark
1
Power Motor
1
SIEMENS
GERMANY
2
Pump
1
ZJ
CHINA
3
Inverter
1
Schneider
GERMANY
4
AC CONTACTOR
1
Schneider
GERMANY
5
Button
8
Schneider
GERMANY
Process Sequence
ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 4
Sample Show
ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 5 ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 6
Picture in Stock
ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 7 ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 8

ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 9
ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 10
ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 11
ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 12
ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 13
ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 14
ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 15
ZF-480 Automatic Self Seal Pocket Wallet Envelope Making Machine With Peel Seal 16
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
