| Place of Origin: | China |
|---|---|
| Brand Name: | PRINTYOUNG |
| Certification: | CE |
| Minimum Order Quantity: | 1 Set/Sets |
| Packaging Details: | wooden case |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3 Set/Sets per Month |
| Appearance Color: | International Standard Warm Ash | Ground Load: | ≤500KG / M2 |
|---|---|---|---|
| Compressed Air: | 0.5 ~ 0.7 MPa | Using Flow Rate: | 300L / Min |
| Operating Environment: | Temperature 10 ~ 35 ℃ | Humidity: | 5-35% HR |
| High Light: | face mask production line,disposable mask making machine |
||
Products Description

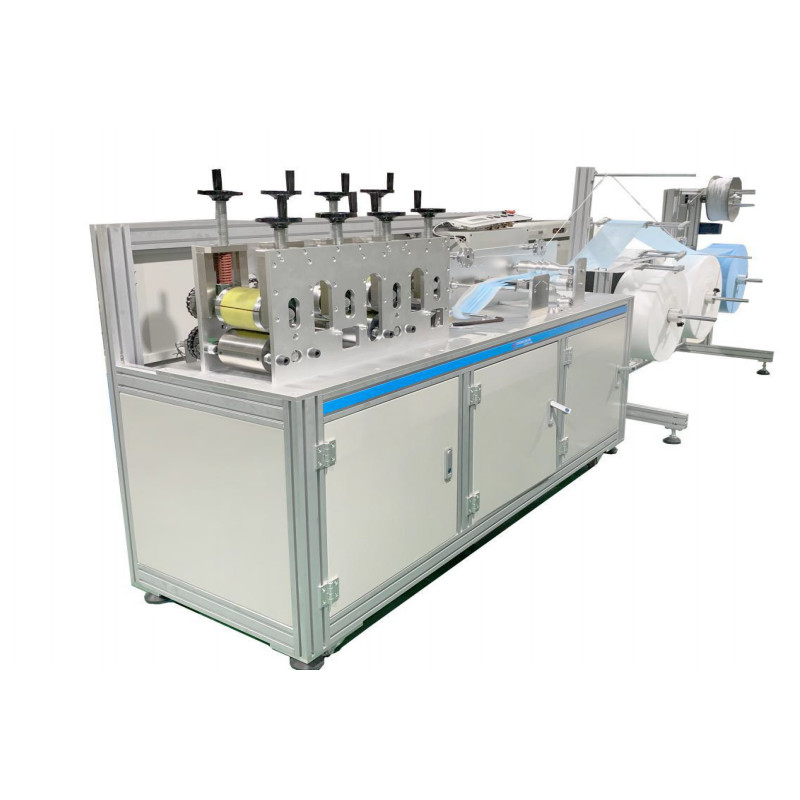

Mask forming tablet machine
Mask Earband Welding Machine
Features
This machine is mainly used for the automatic forming of flat masks: the whole roll of fabric by after unwinding is driven by wheel, and the fabric is automatically folded and hemmed; the entire length of the noise wire is pulled and unrolled. Ultrasonic welding to the seal, then ultrasonic side sealing, cutting with a cutter; manual transfer to the assembly line, conveying the mask to two mask earband welding stations, and finally forming the mask by ultrasonic welding; when the mask is finished, it is conveyed to the flat belt line for collection through an assembly line.
Technical Parameters
| Item | Number of hanging shafts | Width(mm) | Roll outside diameter(mm) | Roll inside diameter(mm) | Weight |
| Material | 3 | 170-200 | Φ600 | Φ76.2 | Max15kg |
| Nose bar | 1 | 3-7 | Φ400 | Φ76.2 | Max25kg |
| Loop | 4bags | 3 | --- | --- | --- |
Application
This machine is mainly used for the automatic forming of flat masks
Packaging&Shipping
