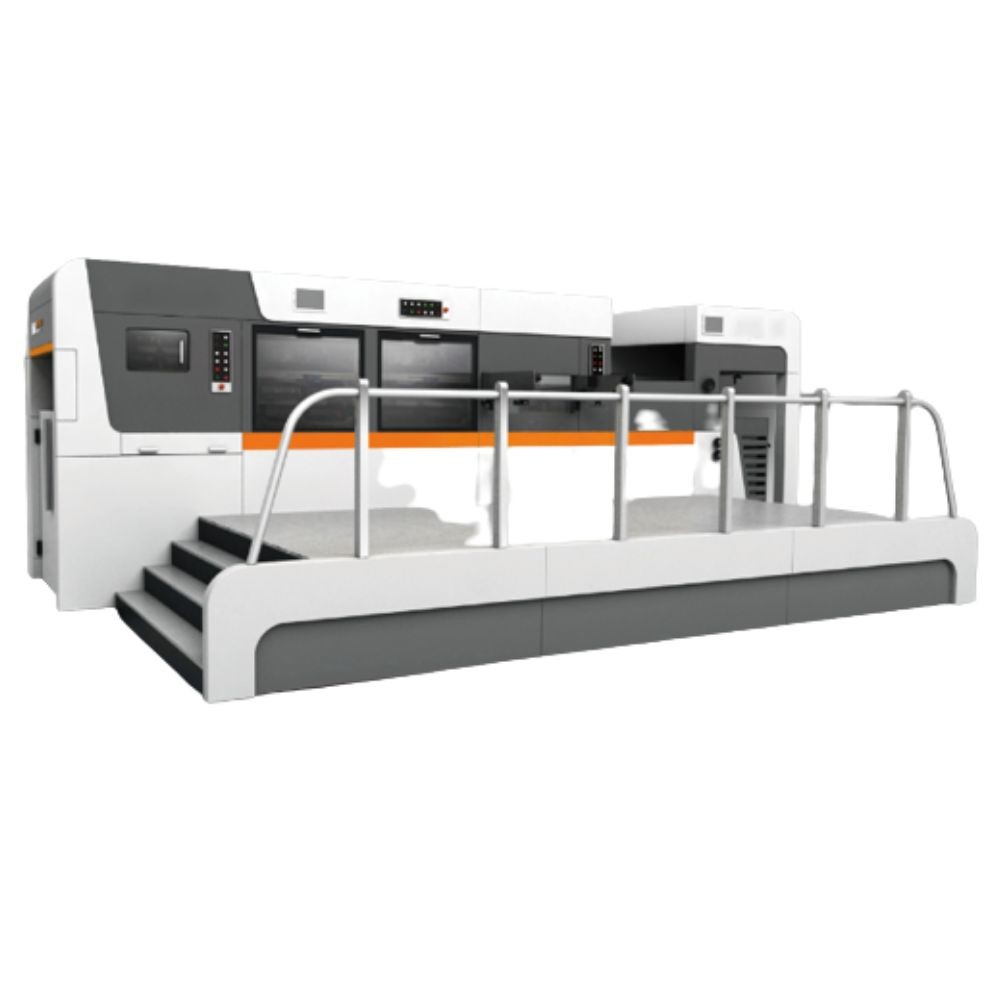

PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking

PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-106
Minimum Order Quantity: 1 Set
Price: US 290000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Type: Die-cutting Machine Production Capacity: 6500sph
Max. Workable Width: 1060mm Weight: 22000 Kg
Voltage: 380V Max. Sheet Size: 1060*760mm
Min. Sheet Size: 400*350mm Paperboard: 0.2-1.5mm
Corrugated Board: ≤4mm (E,B F FLUTE) Min. Gripper Edge: 9mm
Max. Die-Cutting Size: 1060*746mm Inner Chase Size: 1124*788mm
Max. Pressure: 260tons Steel Rules Height: 23.8mm
High Light:

1.5mm Paper Die Cutter

,

Automatic Paper Die Cutting Machine 380V

,

Blanking Paper Die Cutting Machine

PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 0
PRY-106 Automatic Die Cutting Machine
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 1
Features
The new design of the stripping process brings the highest productivity,and the convenient operation decreases the workload significantly.
1.Automatic lubrication on main chain
2.Complete safety detection for both machine and operator
3.Multi language touch screen interface provides trouble shoot and self diagnose
4.Whole machine apply with CE certificate
5.CE safety operation standard
Technical Parameters
PRY-106 Automatic Die cutting Machine
Max. Sheet Size
1060×760mm
Min. Sheet Size
400×350mm
Paper Thickness
90gsm
Paperboard
0.2-1.5mm
Corrugated Board
≤4mm (E,B F FLUTE)
Min. Gripper Edge
9mm
Max. Die-Cutting Size
1060×746mm
Inner Chase Size
1124×788mm
Max. Pressure
260tons
Max. Speed
6500sph
Steel Rules Height
23.8mm
Main Motor Capacity
15kw
Total Power Capacity
28kw
Feeder Pile Height
1400mm
Delivery Pile Height
1200mm
Net Weight
22,000kg
Configuration
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 2
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 3

Feeder

The intelligent feeder system gives perfect sheet feeding,cuts feed errors on all the materials you work with every day include paper,card board and microflute.
1.Conjugate cam mechanism for sheets feeding
2.Four lift suckers and four forward suckers,all suckers head angles are adjustable to handle different kinds of materials
3.Non-stop sheet loading
4.Automatic feeding table up and down
5.Manual adjust on front registration synchronized with auto running
6.Micro adjustable side lays with pull/push in one
7.Electric side lay detection
8.Two independent front lays with photoelectric detection
9.Safety detection on up/down limit of feeding pile
10.Pre-pile device
11.Front and side lays with photoelectric detection
12.Conforms to CE safety system
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 4
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 5

Impress Unit

1.State-of-the-art drive mechanism for steady and strong move of move table
2.State-of-the-art fix table
3.Pneumatic chase lock makes operation much easier
4.4mm Hardened cutting plate
5.Micrometric system provides micro adjustment on cutting plate
6.Pneumatic brake/clutch
7.Fly wheel unload mechanism assures silent and smooth driving
8.Servo controlled pressure adjustment assures short set time
9.Accurate reposition of the distance between the platens, less than 0.01mm
10.Digital pressure display
11.Center line system
12.Smart gripper bars,each bar is adjustable to secure accuracy
13.The position of each gripper finger could be adjusted according to jobs,and some jobs without front edge could be handled
14.Tri-point gripper bar registration provides high accuracy in round registrations
15.Segment gear indexing mechanism provides smooth and accuracy running
16.Torque clutch protects index system from concussion on gripper bar
17.Cam mechanism for gripper finger control assures sheet registration
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 6
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 7

Stripping Unit

The stripping unit is designed to remove even the smallest pieces of waste.Using dedicated or universal tooling,the station is up and running in no time,delivering outstanding performance and quality,whatever the job.Quick lock system provides fast and easy makeready.
1.3 chases stripping makes stripping action more proper
2.Stripping chase positioning system simplifies stripping pin and improves working efficiency
3.Center line system for easy job changeover
4.Upper and lower stripping frames can be pulled out for job set up and make ready
5.Upper stripping chase could be raised for easy operation
6.Either stripping pins or stripping tools are applicable
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 8
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 9

Blanking and Delivery Unit

The blank separation delivers both blank sheets and full sheets precisely.Functions such as continuous pile lowering and automatic sheet insertion to ensure perfectly stacked piles.
1.Quick frame lock provides short make ready time for both new job and repeat job
2.Full size sheet inserter for both counter and blank pile stabilize
3.Non stop pile changing
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 10

Electrics

1.PLC control gives accurate machine running control and self diagnose
2.Touch screen HMI offers convenient operation setting and machine monitor
3.Selected electric elements assures stable working
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 11

Gripper Bars

Gripper bars are made of high-performance 6005 aluminum,and seal type design by new technology.Gripper pads are installed at the
lower edge of gripper body,rotary open,which brings better salability during the die-cutting and stripping process and enhanced working life of gripper pads.
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 12

Finished Products

Finished products can be well organized according to the requirements of customer into a pile,and be transferred to the driver
side by transfer track safely for next procedure.
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 13

Automatic Delivery Pile Transfer (Optional)

Realising automatic transfer between empty and full loaded pallets at the machine's delivery,reduces manual intervention and
ensures non-stop production.
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 14
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 15
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 16
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 17
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 18
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 19
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 20
PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking 21
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
