Paper Lamination Machine , Automatic Flute Laminator For Cardboard

China Paper Lamination Machine , Automatic Flute Laminator For Cardboard supplier
Paper Lamination Machine , Automatic Flute Laminator For Cardboard supplier Paper Lamination Machine , Automatic Flute Laminator For Cardboard supplier

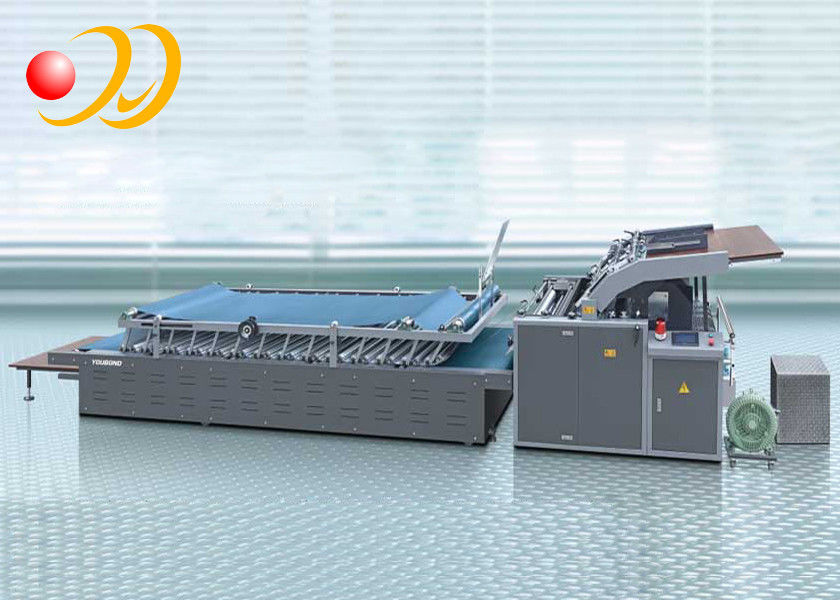

Large Image :  Paper Lamination Machine , Automatic Flute Laminator For Cardboard

Product Details:

Place of Origin: China
Brand Name: Printyoung
Certification: CE
Model Number: YB-BB Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Max Size: 1100×1100mm Min Size: 350×350mm
Speed: 0-90m/min

Paper Lamination Machine , Automatic Flute Laminator For Cardboard



Specifications :





Model

YB-1100BB

YB-1300BB

YB-1450BB

YB-1650BB

Max Sheet

1100*1100mm

1300*1100mm

1450*1100mm

1650X1300mm

Min Sheet

350X350mm

350X350mm

350X350mm

350X350mm

Total Power

7kw

7kw

 7.8kw

9kw

Max Speed

0-90m/min

0-90m/min

0-90m/min

0-90m/min

Measurement

7.47*1.77*1.42M

7.47*1.97*1.42M

7.47*2.02*1.42M

7.47*2.25*1.42M

Machine Weight

3000kg

3500kg

4000kg

4500kg



Introduction:



This machine use bottom sheet automatic sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for color top sheet and corrugated paper laminating, color top sheet and grey cardboard laminating.

Characteristics:





1. Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking


2. The humanized design that manually feeding from the front makes delivery more easier and efficient


3. Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet


4. Machine use touch-screen PLC control system, the circuit system is stable, and can automatically display the failure alarm


5. The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste


6. The scientific design of the metering roller speed to ensure the glue evently on the same time, to avoid rejection of glue at the high speed


7. Single side adjustment of the pressure roller, and equipped with a pressure gauge, with the record of the data, easy adjustment when change the size of bottom paper


8. Independent water tank control cycle, ensure the bottom paper back dry and clean, and cleaning glue rollers, glue collecting tank, back glue tank at the same time


9. Suitable for color top sheet 175g-500g and A/B/C/D/E/F corrugated paper laminating;



    color top sheet 175g-500g and grey cardboard paper laminating
