Automatic Paper Cutting Equipment , Double Hydraulic Paper Cutting Machinery

China Automatic Paper Cutting Equipment , Double Hydraulic Paper Cutting Machinery supplier
Automatic Paper Cutting Equipment , Double Hydraulic Paper Cutting Machinery supplier Automatic Paper Cutting Equipment , Double Hydraulic Paper Cutting Machinery supplier Automatic Paper Cutting Equipment , Double Hydraulic Paper Cutting Machinery supplier

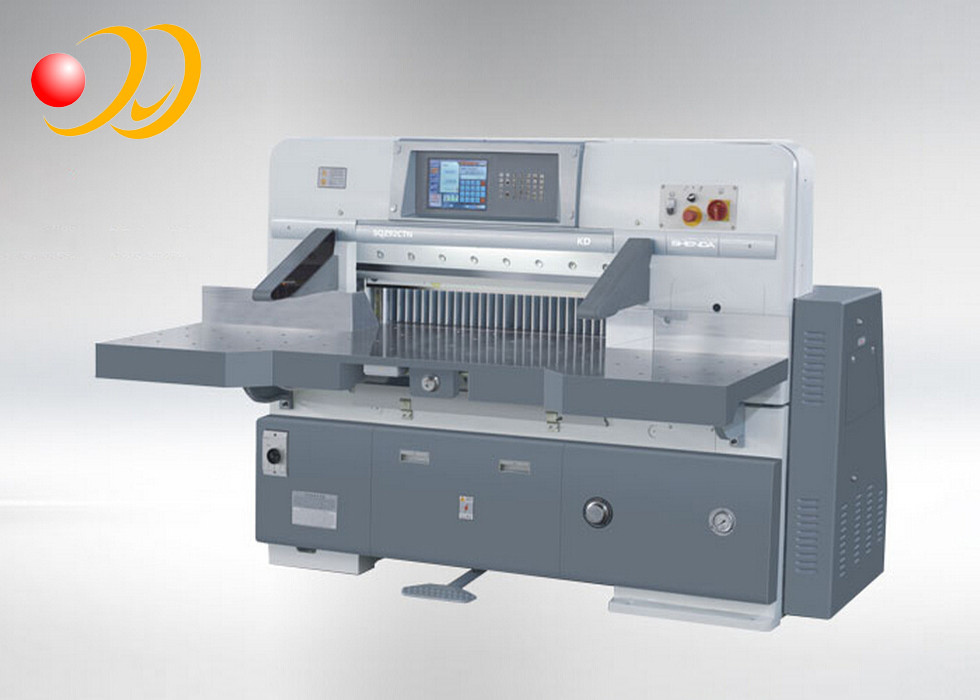

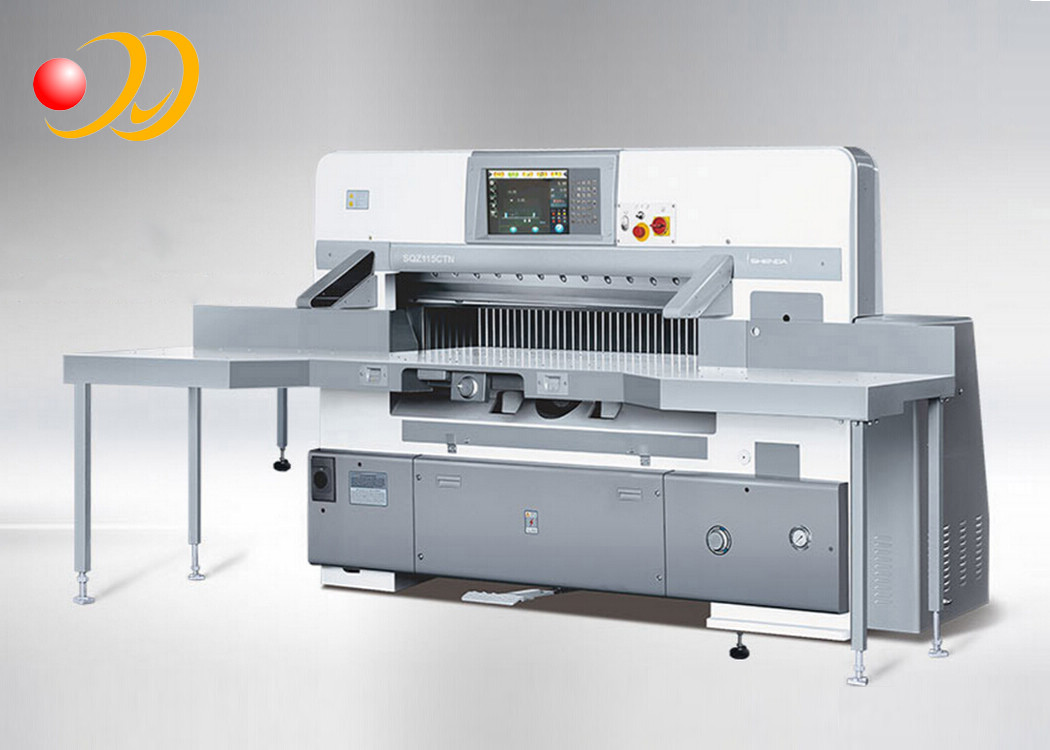

Large Image :  Automatic Paper Cutting Equipment , Double Hydraulic Paper Cutting Machinery

Product Details:

Place of Origin: China
Brand Name: Printyoung
Certification: CE
Model Number: SQZ-CTN KD Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Cutting Width: 920mm Max.cutting Height: 130mm
Max.cutting Length: 920mm

Automatic Paper Cutting Equipment , Double Hydraulic Paper Cutting Machinery
Specifications :

MODEL

SQZ-
92CTN KD

SQZ-
115CTN KD

SQZ-137CTN KD

SQZ-155CTN  KD

SQZ-176CTN KD

Cutting width(mm)

920

1150

1370

1550

1760

Max.cutting height(mm)
(Without auxiliary panel )

130

165

165

165

165

Max.cutting length(mm)

920

1150

1450

2000

2000

Main motor power(kw)

3

4

5.5

7.5

7.5

Net weight(kg)

2600

3800

4700

5800

6800

Width with sideway(mm)

2120

2650

2870

3550

3760

Without sideway(mm)

1980

2365

2385

2825

3035

Machine lenght

2050

2465

2785

2950

3600

Machine height

1560

1650

1650

1730

1730

Front table length(mm)

690

735

735

750

750

Table height(mm)

900

900

900

900

900

Clamp pressure min
(dan/bs)

150

150

150

200

200

Max(dan/bs)

3500

4500

5500

6000

7000

Knife thickness(mm)

12.7

13.75

13.75

13.75

13.75

Grinding reserve(mm)

30

60

60

60

60

Without false clamp(mm)

25

25

25

35

35

With false clamp(mm)

90

95

95

120

120

Cutting speed(mm)

45

45

45

45

45

Voltage(three-phase)(v)

361-339

361-339

361-339

361-339

361-339

Packing size(L*W*H)(mm)

2250*
1400*1910

2650*
1500*2000

2950*
1550*2000

3700*
1600*2300

3700*
1600*2300


Introduction:

SQZ-CTN KD Series  comply with the most advanced industry standard design and production, equip with industrial touch screen, multi-language user interface, easy programming, easy operation. It can achieve multi-machine communications and remote computer management with remote diagnostics, and shortcut keys which is easy to understand. Mached with TAIWAN high-precision slotless double-rail, the servo motor has many functions: pushing paper structure, positioning accuracy 0.01mm, stepless speed regulation, the maximum speed of 24m/min. Equip with automatic knife changing assisyant functions can achieve knife changing operation. German design of the double-loop,dual-channel hydraulic system, the whole CE standards.

THE MAIN CONFIGULATION:



 turbine

roller ball lead screw

servo motor

10.4 inch touch screen computer

double guide rail

double  hydraumatic




THE SYSTEM OF COMPUTER:
1. The displaying panel use 10.4 inch, you can adjust the color by yourself.
2. They have the high quality colors(25600), their storage can reach 170 groups, every group have 250 cut, Its storage time can reach 300,000 hours.
3. The multi-language operating interface, such as Chinese,English,Spanish...
4. It has luminous shortcut key so as to ensure the high stability.

THE APPARATUS CONTROLLED SYSTEM:
1. Adopts Switzerland ABB, German MULLER, Japan OMRON.
2. Servo motor is from Japan YASKAWA   .
3. Air pump is from TAIWAN HOUBANG.

THE PAPER PUSHER CONTROLLED SYSTEM:
1. Roller ball lead screw: ABBA
2. Double rail guide way: ABBA

THE HYDRAULIC SYSTEM:
1. Adjustable-pressure double-hydraulic system(paper pressing and cutting both by hydraumatic)
2. combined valve from German, ISO approved hydraulic units.

THE SAFETY PROTECTED SYSTEM:
1. Extensible and precise infrared protective device from Shanghai Zhonghu photocell Control which reaches CE standard.
2. Blade-Replacement Device with safety and convenience.
3. Air cushion and chromeplating platform of photoelectricity protective device.
4. Underlay cutter frame.
5. The closed paper pusher frame.
6. Machine lock, safety bolting, the safety button and light grid.
7. The driving cutting part uses worm.
