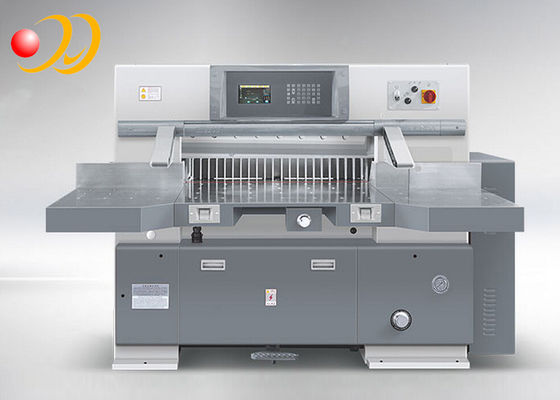

Semi Automatic Paper Cutting Machine High Precision With Hydraulic Pump

Semi Automatic Paper Cutting Machine High Precision With Hydraulic Pump

    • Semi Automatic Paper Cutting Machine High Precision With Hydraulic Pump
  • Semi Automatic Paper Cutting Machine High Precision With Hydraulic Pump

    Product Details:

    Place of Origin: China
    Brand Name: Printyoung
    Certification: CE
    Model Number: QZ-92CT KD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
    Delivery Time: 30 working days after received your payment
    Payment Terms: T/T or western Union
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Cutting Argment Width: 92cm Max.cutting Height: 12cm
    Max.cutting Length: 92cm Cutting Speed: 45tims/min
    High Light:

    automatic paper cutter

    ,

    paper roll cutting machine

    Semi Automatic Paper Cutting Machine High Precision With Hydraulic Pump


    Specifications :



    MODEL

    QZ-92CT KD

    Cutting argment width

    92cm

    Max.cutting height
    (Without auxiliary panel )

    12cm

    Max.cutting length

    92cm

    Main motor power

    3kw

    Fore-length of working table

    69cm

    Height of working table

    90cm

    Width of machine
    (side working table included)

    212cm

    Width of machine
    (without side working table)

    198cm

    Cutting speed

    45tims/min

    Max.clamp pressure

    3500dan

    Min.clamp pressure

    150dan

    Knife thickness

    1.27cm

    Grinding reserve

    3cm

    Voltage

    361-339v

    Gross weight

    2400kg

    Overall dimensions   (L-W-H)

    232× 142 × 185cm



    Introduction:



    QZ-92CT KD meet with national industry standards paper cutter design and production, equip with LED display. Easy to learn operating system and shorycut keys which is also easy to understand.TAIWAN high-precision slotless double-rail push the paper structurre, positioning accuracy 0.01mm. Mechatronics use ABB control device, equip with automatic knife changing assistant function. German design of pressure hudraulic system, turbine transmission structure.



    THE MAIN CONFIGULATION:

     turbine

    roller ball lead screw

    servo motor

    10.4 inch touch screen computer

    double guide rail





    THE SYSTEM OF COMPUTER:

    1. The displaying panel use 10.4inch, you can adjust the color by yourself.

    2. They have the high quality colors(25600), their storage can reach 170 groups, every group have 250 cut, Its storage time can reach 300,000 hours.

    3. The multi-language operating interface, such as Chinese,English,Spanish...

    4. It has luminous shortcut key so as to ensure the high stability.



    THE APPARATUS CONTROLLED SYSTEM:

    1. Adopts Switzerland ABB, German MULLER, Japan OMRON.

    2. Servo motor is from Japan YASKAWA   .

    3. Air pump is from TAIWAN HOUBANG.



    THE PAPER PUSHER CONTROLLED SYSTEM:

    1. Roller ball lead screw: ABBA

    2. Double rail guide way: ABBA



    THE HYDRAULIC SYSTEM:

    1. Adjustable-pressure single-hydraulic system(paper pressing by the hydraumatic),

    2. combined valve from German, ISO approved hydraulic units.



    THE SAFETY PROTECTED SYSTEM:

    1. Extensible and precise infrared protective device from Shanghai Zhonghu photocell Control which reaches CE standard.

    2. Blade-Replacement Device with safety and convenience.

    3. Air cushion and chromeplating platform of photoelectricity protective device.

    4. Underlay cutter frame.

    5. The closed paper pusher frame.

    6. Machine lock, safety bolting, the safety button and light grid.

    7. The driving cutting part uses worm.
