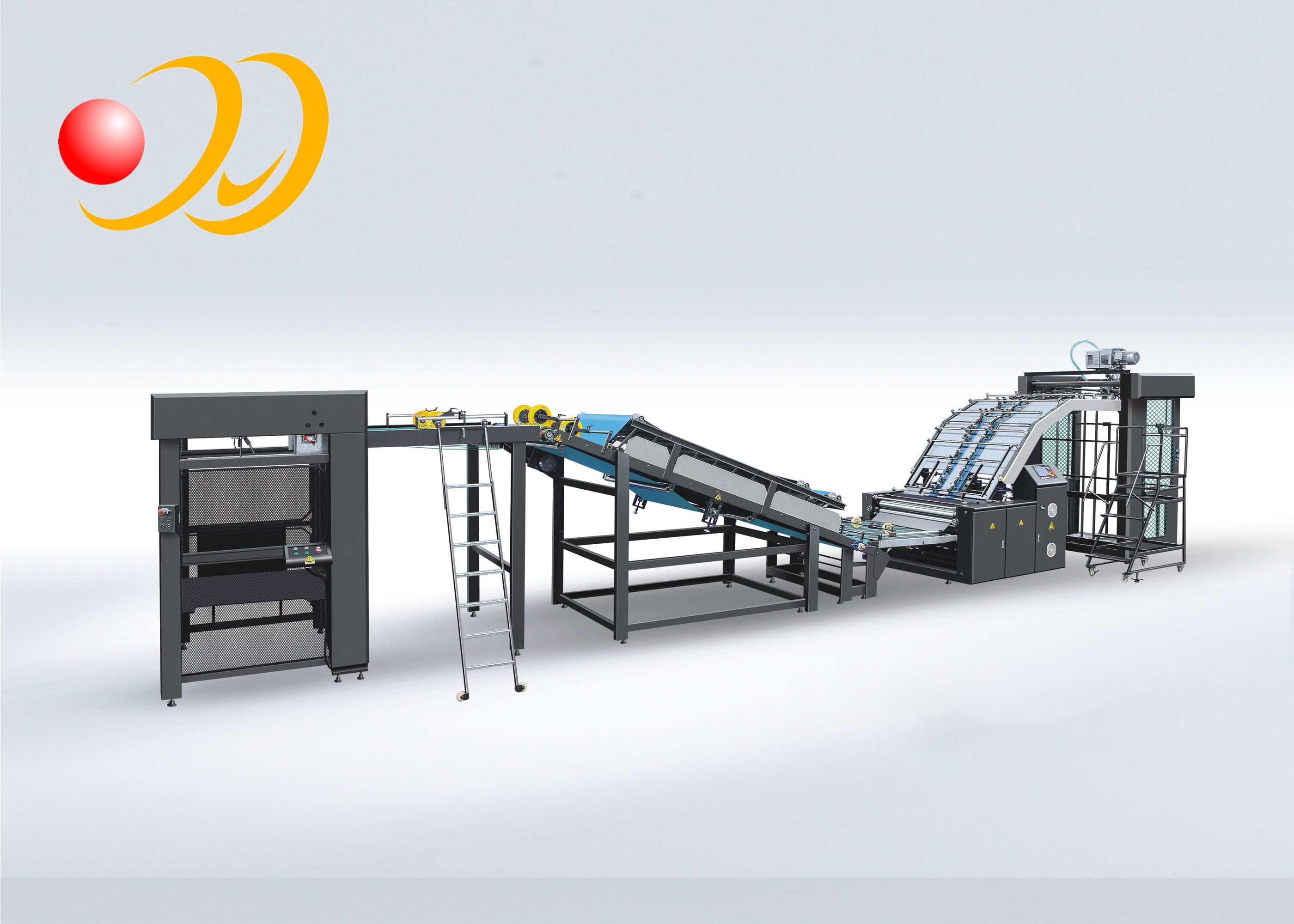

Top And Bottom Sheet Flute Laminating Machine Fully Automatic Floating Type

Basic Information
Place of Origin: China
Brand Name: Printyoung
Certification: CE
Model Number: FMQ Series
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Max Flute Laminating Size: 1300×1100mm Min Flute Laminating Size: 400x400mm
Max Laminating Speed: 130m/min
High Light:

paper lamination machine

,

automatic flute laminator

Top And Bottom Sheet Flute Laminating Machine Fully Automatic Floating Type





Main Technical Parameter:



Model

FMQ-1300

FMQ-1480

FMQ-1650

Max Flute Laminating size

1300×1100mm

1480×1300mm

1650×1300mm

Min Flute Laminating size

400x400mm

400x400mm

400x400mm

Max Breadth thickness

8mm

8mm

8mm

Max Laminating Speed

130m/min

130m/min

130m/min

Top Sheet

    Card Paper : 200~450g/m2



Bottom Sheet

Corrugated Paper: A,B,C,E,F , Card Paper :≥400g/m2

Flute Laminating Accuracy

±1.5mm

±1.5mm

±1.5mm

Total Power

18.5kw

20.5kw

26kw

Overall Dimensions

18850×2250×2960mm

18850×2400×2960mm

19100×2600×2960mm

Weight

8.5T

9.5T

10.5T


Features:





1. Automatic feeding for top sheet and bottom sheet. Top sheet non-stop pre-stack system for improving efficiency.

2. Famous international brand of electrical parts and integrated control with PLC .

3. Elastic front register positioning with accurate laminating , the front-and-back  distance between the top sheet and the bottom sheet can be adjusted.

4. Automatic delivery part with easy operation, stable working and automatic counting connecting with pressing part which can stack paper tidy and fast  automatically.

5. Automatic delivery part with the non-stop delivery function which can mprove working efficiency.
