PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness

PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness
PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness
Basic Information
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRYJG-150
Minimum Order Quantity: 1 Set
Price: US 21000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Place Of Origin: Zhejiang, China Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa Condition: New
Product Type: Paper Core Machine Weight: 6700 Kg
Warranty: 1 Year Machinery Test Report: Provided
Video Outgoing-inspection: Provided Voltage: 380 V
Dimension: 4600 * 1950 * 1900 Mm Paper Layer: 25 Layers
Inner Diameter: 50 - 250 Mm Wall Thickness: 1 - 15 Mm
Winding Speed: 1 - 25 M/min Speed Regulation: By Inverter
Winding Heads: Four Heads Double Belts Shaft Fixing: By Flange
Cutting Length: 1000 - 5000 Mm Working Air Pressure: 0.6 Mpa
Gluing Way: Double Sides
High Light:

15mm Paper Tube Core Making Machine

,

380V Paper Tube Core Making Machine

,

Double Sided Gluing Paper Processing Machinery

PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 0
PRYJG-150 Paper Tube Making Machine

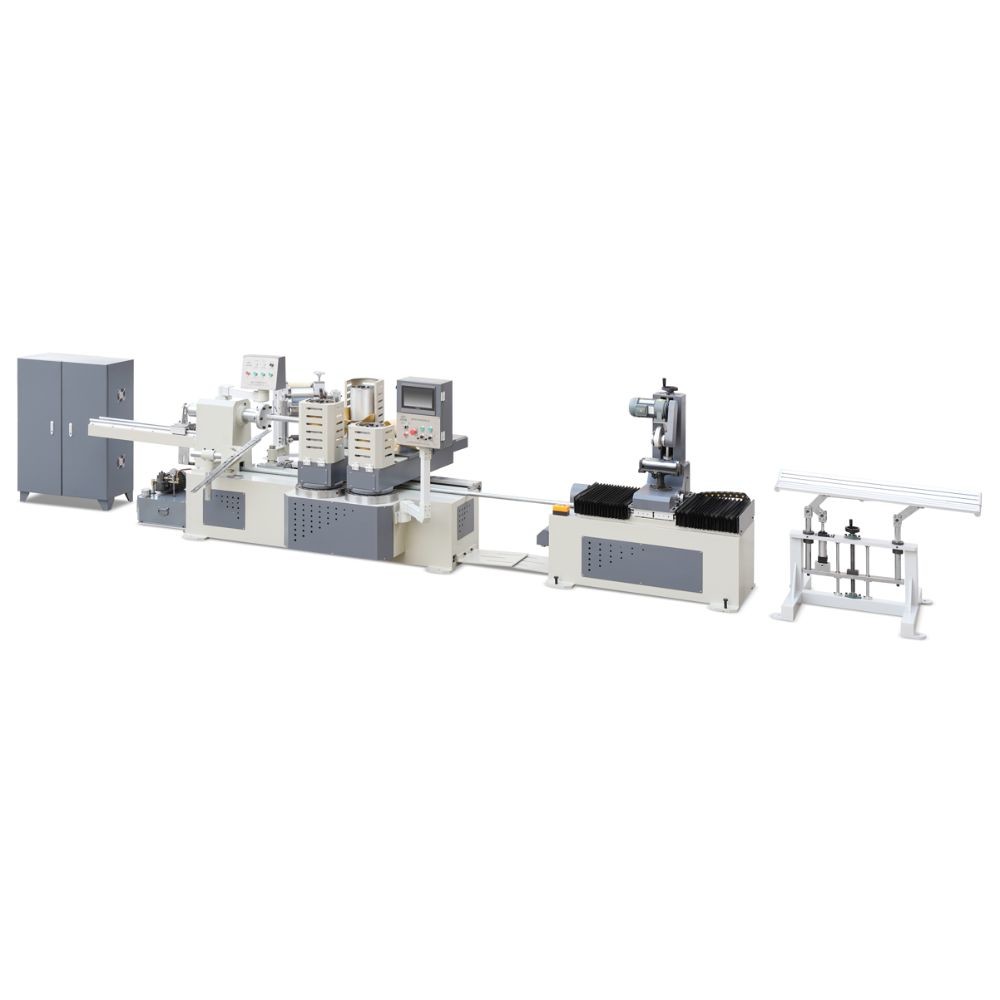

Below picture is for Servo Controlled machine (split type) and just for reference.
Common machine is integral type (cutting part connect together with winding part)
PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 1
Technical Parameters
PRYJG-150 Paper Tube Making Machine
Technical Parameter
Paper Layer
25 Layers
Inner Diameter
50 - 250mm
Wall Thickness
1 - 15 mm
Winding Speed
1 - 25 m/min
Speed Regulation
by inverter
Winding Heads
four heads double belts
Shaft Fixing
by flange
Cutting Blade
high Speed Steel Blade
Cutting Length
1000 - 5000 mm
Gluing Way
double sides
Length Fixing
by infrared
Working Air Pressure
0.6 Mpa
Operator
1 - 2 persons
Measurement & Weight
Measurement
4600 * 1950 * 1900 mm
Working Space
10000 * 5000 mm
Total Weight
6700 kgs
Control System
Main Motor
15 kw wannan
Inverter
schneider
PLC
xinjie
Operating Panel
panel master
Electric Components
schneider
Pneumatic Components
jingwei
Bearing
haerbin
Power Supply
380 V 3 Phase 50 Hz
Main Configurations
Paper Reel Stand
24 layers integral type
Gluing System
24 layers spraying type
Inner Paper Stand
1 set
Tube Unloading Shelf
1 set
Mandrel Shaft (Mold)
2 pieces
Belt
4 pieces
Blades
5 pieces
Useful Tool
1 set
Configuration
PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 2PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 3
Four-heads double-belts spiral winding

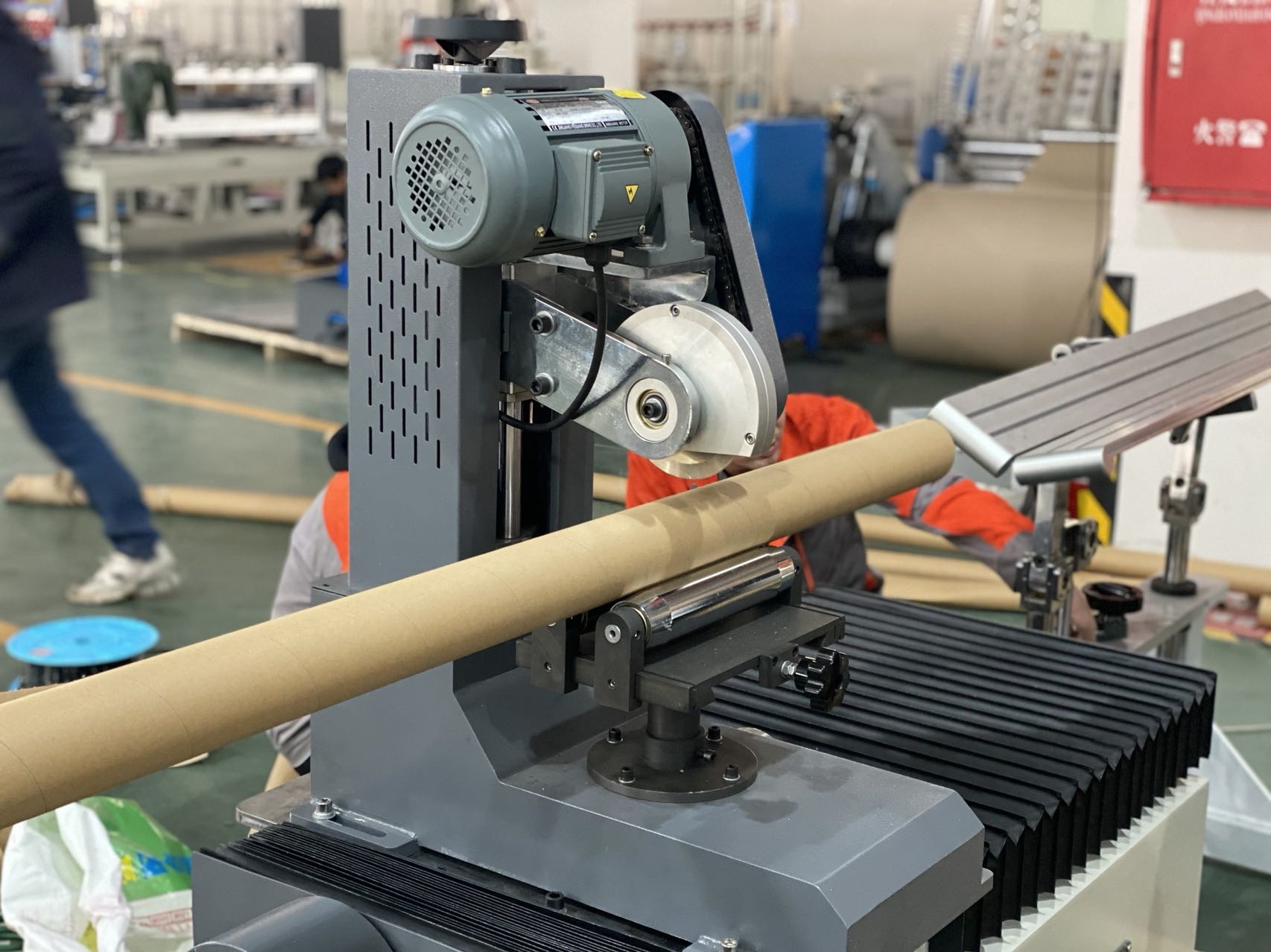

Online cutting system – controlled by AC motor;cutting length 1000-5000mm
PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 4PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 5

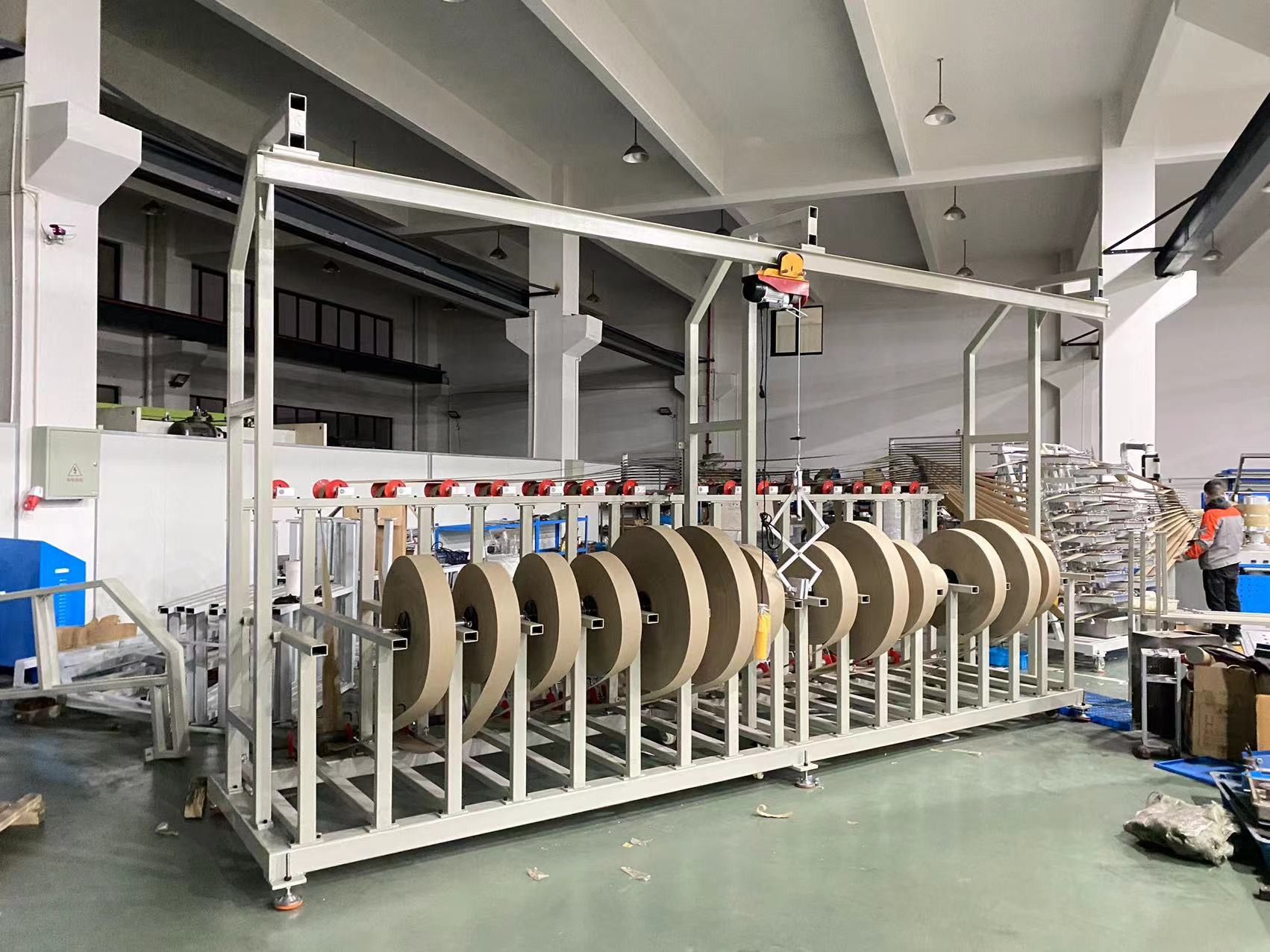

Equipped with 24 layers paper reel stand *1set
Equipped with 24 layers spraying glue unit *1set
PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 6PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 7
Equipped with inner paper stand * 1 set

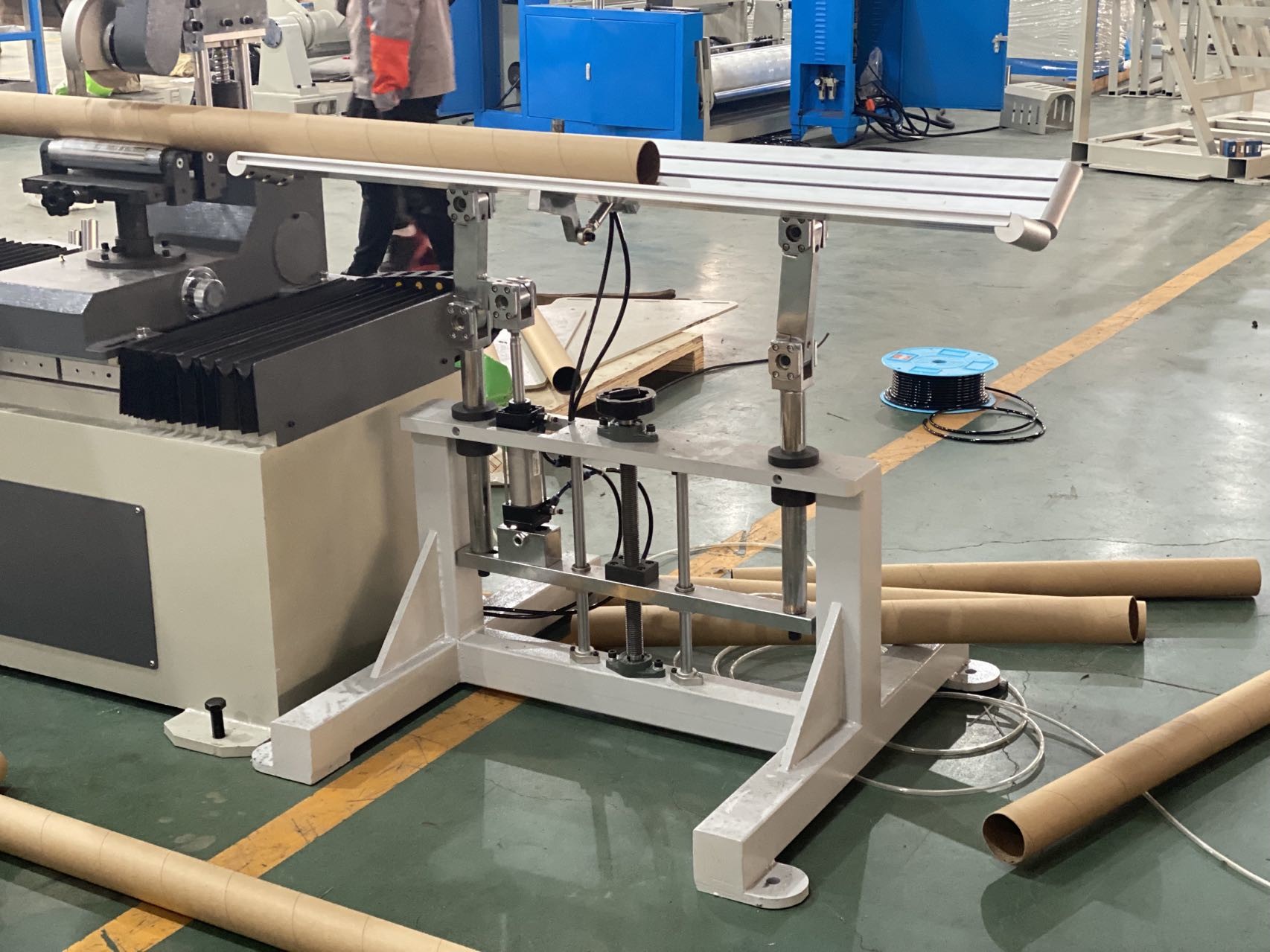

Finished tube unloading shelf * 1 set
Applications
This machine is used Forming paper tube from material paper and glue.
PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 8PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 9PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 10

PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 11
PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 12
PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 13PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 14PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 15PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 16
PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 17
PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 18
PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 19
PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 20
PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 21PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 22
PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 23PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 24PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 25
PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness 26
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
