Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100

Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100
Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100
Basic Information
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-WT100
Minimum Order Quantity: 1 Set
Price: US 15500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Place Of Origin: Zhejiang, China Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa Condition: New
Product Type: Paper Cup Machine Processing Type: Other
Weight: 1500 Kg Warranty: 1 Year
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Voltage: 380 V / 50 Hz Power: 4 Kw
Dimension: 2880 X 1060 X 1650 Mm Finished Products: Paper Cup
Raw Material: Paper Production Speed: 80 - 100 Pcs/min
Material Requirements: External Paste Hollow Corrugated Paper Paper Thickness: 180 - 330 Gsm
Gas Supply Requirements: 0.6 - 0.8 Mpa ; 0.5 M³/min Machine Size: 2880 X 1060 X 1650 Mm
Cup Organizer: 1000 X 650 X 1600 Mm
High Light:

Hollow Corrugated Paper Cup Making Machine

,

External Paste Paper Cup Making Machine

,

Fully Automatic Paper Cup Machine

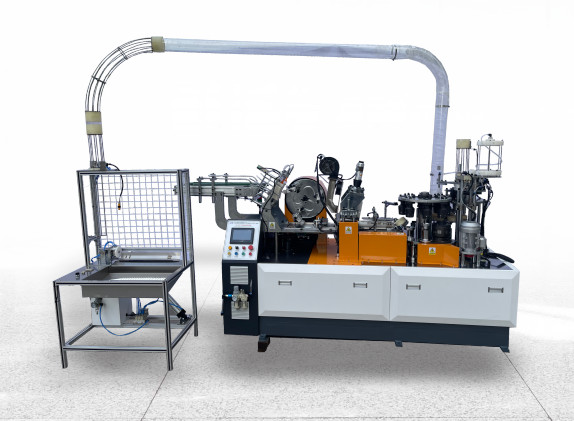

Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 0
PRY-WT100 Paper Cup Making Machine

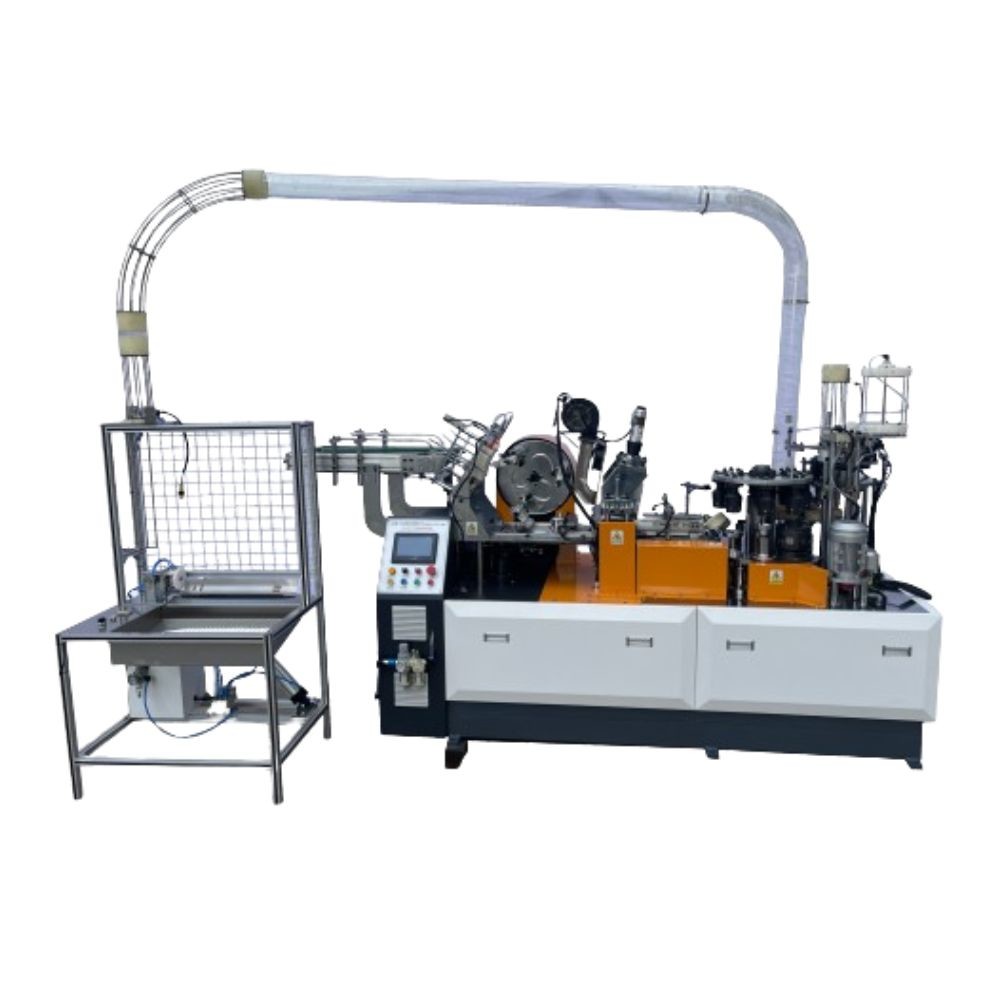

Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 1
Features
The external hollow corrugated paper cup machine adopts a desktop layout to isolate the transmission parts and molds.The transmission parts are under the table and the mold is on the table,which is easy to clean and maintain.The machine adopts automatic spray lubrication, longitudinal shaft transmission structure,barrel type cylindrical indexing mechanism and gear transmission to ensure the stability and quality of the whole machine. For electrical components,the operation is controlled using PLC,photoelectric tracking and servo feed.This type of machine has a production capacity of up to 80-100 pcs/min,and is suitable for the production of 5-16 ounces of cold/hot cup external hollow corrugated.
Intelligent Control System

1.Multi-model modules.Use simple window prompts to guide you through the selection of the set model.

2.Flexible parameter Settings.You can back up,restore or restore parameters to factory.You can also modify the parameters manually.

3.Flexible encoder origin setting and direction automatic setting and fault self-test.The hardware installation of the encoder does not need to consider the location,just set up the software.

4.Auto configuration parking space,less than a circle quickly down.After configuration,the machine automatically calculates the inertial distance of the machine,and the position after deceleration is at least one step faster.

5.Hardware monitoring system.plc output point,relay,contactor,plc and touch screen,plc and computer,plc has extended line real-time monitoring function,abnormal alarm in the touch screen prompts the cause of failure. Detailed hardware and software fault information,users can easily troubleshoot according to the prompts.
Technical Parameters
PRY-WT100 Paper Cup Machine
Weight
1500 kg
Machine Size
2880 x 1060 x 1650 mm
Power Supply
380 V , 4 KW
Compressed Air Configuration
0.6 - 0.8 MPa , 0.5 m³/min
Speed
80 - 100 pcs/min
Types of Paper
External paste hollow corrugated paper
Paper Thickness
180 - 330 g/m2
Control Panel
7 inches
Cup Organizer
1000 x 650 x 1600mm
Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 2 (D1) ф 50 - 90 mm    (D2) ф 40 - 70 mm    (H) 50 - 135 mm
Sample Pictures
Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 3Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 4

Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 5
Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 6
Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 7Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 8Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 9
Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 10
Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 11
Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 12
Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 13
Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 14
Fully Automatic External Paste Hollow Corrugated Paper Cup Making Machine PRY-WT100 15
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
