| Place of Origin: | China |
|---|---|
| Brand Name: | PRINTYOUNG |
| Certification: | CE |
| Model Number: | PRY-1650E |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 32000 |
| Packaging Details: | Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included. |
| Delivery Time: | 45 Days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30 Set/Month |
| Fitting Precision: | ±1mm | Machinery Test Report: | Provided |
|---|---|---|---|
| Weight: | 6000kg | Showroom Location: | Egypt, Italy, Morocco, Algeria, South Africa |
| Speed: | 7000sheet/Hour | Condition: | New |
| Application: | Commodity | Max Sheet Size: | 1650*1450mm |
| High Light: | Commodity Flute Laminator Machine,Fully Automatic Flute Laminator Machine,7000sheet/Hour Flute Laminating Machine |
||
This machine is specifically designed for color printing and laminatin with corrugated paper or corrugated paper tissue. It features a scale continuous paper feeding, and a unique front gauge positioning way which is specially designed to ensure the bottom paper never advances. Furthermore, it is quite easy to operate and maintain.
The advanced automatic tracking technology allows for the machine to constantly work in its most optimum condition by automatically and adjusting relevant parameters according to the paper.
The unique front gauge positioning system ensures precision so that the bottom paper never advances with an adjustable amount of paper.
It is also equipped with a high precision high speed automatic feeder that feeds smoothly, as well as a strengthening type paper feeding device.
The Offset Printing Machine's side plate positioning is adopted to make error correction for the paper stack and feeding process.
The paper is fed automatically by using suction at the end, with adjustable wind size via the touch screen, and with an optional belt humidifying function.
Meanwhile, a spare layer of paper is placed in the non-stop state below the pile and into the elevator of a rail, increasing work efficiency.
Imported electrical components are used to ensure the stability of the circuit system, and the PLC tracking technology and automatic fault alarm also come in handy.
Besides,a full automatic glue supply system is available to automatically replenish any lost plastic with glue recycling.
The tank controller in this machine also works on independently to control water circulation to ensure a safe and dry bottom paper, as well as clean rollers, spouts and back glue tanks.
The single side adjustment of the pressure roller is also equipped with a pressure scale display and the ability to adjust the size one step at the end of the paper.
| Property | Details |
|---|---|
| Driven Type | Electric |
| Type | Flute Laminating Machine |
| Application | Commodity |
| Fitting Precision | ±1mm |
| Core Components | Engine, Motor |
| Max Sheet Size | 1650*1450mm |
| Place of Origin | Zhejiang, China |
| Weight | 6000kg |
| Applicable Industries | Manufacturing Plant |
| Voltage | 380V |
| Product Name | Paper Flute Laminator, Cardboard Flute Laminating Machine, Flute Laminator |

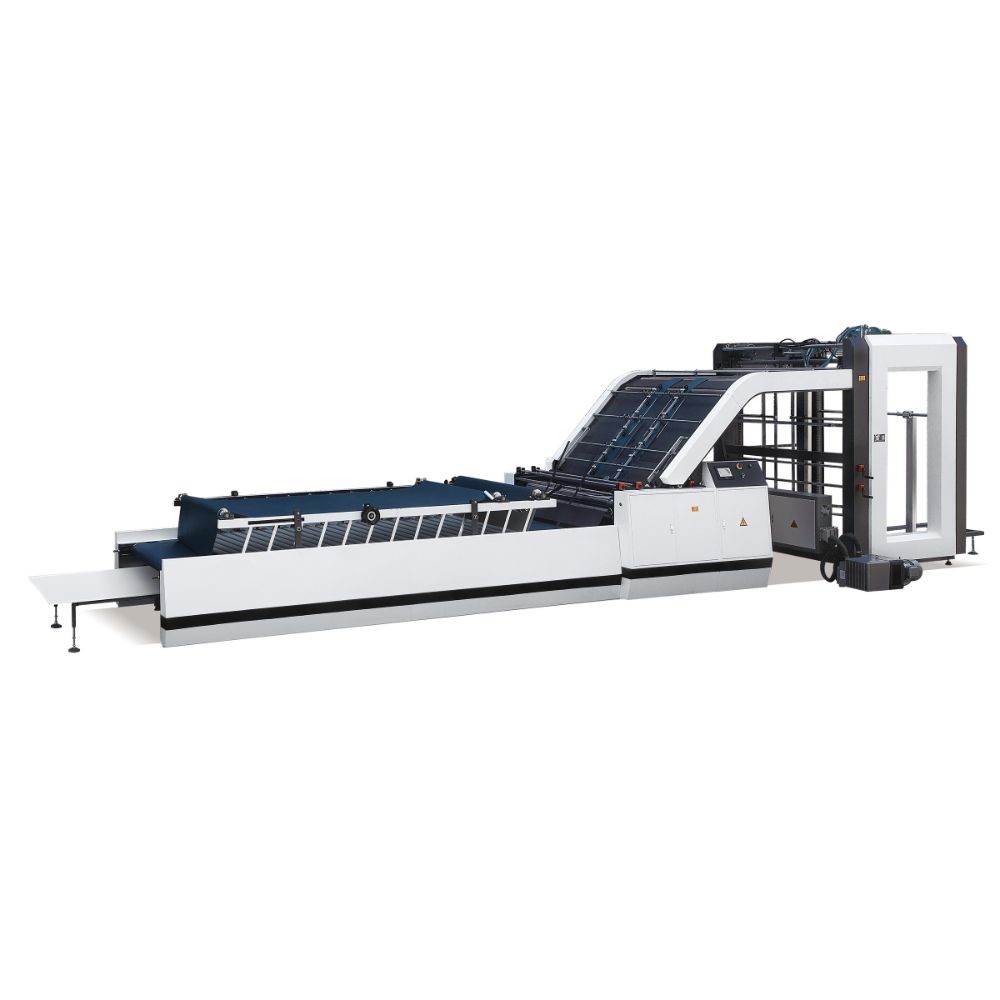

The PRINTYOUNG PRY-1650E flute laminating machine is a fully automatic cardboard laminator that can help to produce high-precision laminates with perfect fitting precision of ±1mm. It is widely used in manufacturing plants and is suitable for card to corrugated laminating. With its 11.5*2.4*2.4M dimension, and 30 sets/month production capability, the machine is CE certified and comes with a one-year warranty. It also comes with a Machinery Test Report. The minimum order quantity is 1 set and the price is USD 32000, which includes wooden case packaging. Delivery time is usually 45 days and payment terms are L/C,T/T.
The PRINTYOUNG PRY-1650E flute laminating machine is reliable and efficient, making it an ideal choice for customers looking for a fully automatic cardboard laminator for their card to corrugated laminating needs. It is easy to operate and offers perfect fitting precision of ±1mm, ensuring that the laminates produced are of the highest quality.
Brand Name: PRINTYOUNG
Model Number: PRY-1650E
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: USD 32000
Packaging Details: Wooden Case
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets/Month
Machinery Test Report: Provided
Min Sheet Size: 400*400mm
Weight: 6000kg
Driven Type: Electric
Machine Power: 12KW
PrintYoung PRY-1650E is a professional paper flute laminator, which is an automatic cardboard laminator for laminating of paper flute. The machine is equipped with high-precision systems and advanced technology, which enable it to work with high speed and accuracy. This flute laminating machine is CE certified, and can produce high-quality products while consuming less energy.
We provide technical support and service for our Flute Laminating Machine. Our service team is available to help you with any technical issues you may have with the machine.
We provide on-site service, telephone support, and online support. Our on-site service includes installation, troubleshooting, and maintenance of the machine. Our telephone support allows you to call us for any technical issues you may have. Our online support provides step-by-step instructions on how to use your machine.
We also offer a one-year warranty on the machine. If you have any issues with the machine during the warranty period, we will repair or replace it at no cost to you.
If you have any questions or concerns about the machine, please don't hesitate to contact us. We are here to help.
We use a customized wooden box to package the Flute Laminating Machine. The box is strong enough to protect the machine from damage during shipping. The box is sealed with waterproof packing tape to prevent water from entering the box. Inside the box, we use bubble wrap and foam padding to keep the machine in place and protect it from shock during transit.
The Flute Laminating Machine will be shipped through a reliable shipping carrier. We will provide tracking information to ensure the safety and timely delivery of the machine.
