| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | PRINTYOUNG |
| Certification: | CE |
| Model Number: | PRY-1300E |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 20000 |
| Packaging Details: | Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included. |
| Delivery Time: | 45 Days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30 Set/Month |
| Machinery Test Report: | Provided | Condition: | New |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Dimension: | 11.5*2*2.4M |
| Application: | Commodity | Applicable Industries: | Manufacturing Plant |
| Core Components: | Engine, Motor | ||
| High Light: | Fully Automatic Flute Laminating Machine,Electric Driven Flute Laminating Machine,Electric Automatic Flute Laminator |
||
This machine excels at not only color printing but also corrugated paper and corrugated paper laminating, tissue. It demonstrates the convenience and efficiency with its scale continuous paper feeding and unique front gauge positioning method. The front gauge positioning way can promise that the bottom paper will never advance. Moreover, it is user friendly as its operation and maintenance is simple.
The advanced automatic tracking technology according to the paper automatically adjusts the size of the relevant parameters, so that the machine running is always in the best condition.
The unique front gauge positioning system is accurate and ensures that the bottom paper never advances, and the paper advance is adjustable.
It is equipped with high precision high speed automatic feeder and a strengthening type paper feeding device, feeding smoothly.
By using the principle of offset printing machine side plate positioning for about error correction paper stack of paper and feeding process.
At the end of the paper, automatic suction feeder can be used, the size of the wind can be adjusted in the touch screen, and an optional belt humidifying function.
Spare larryoy can pile paper under non-stop state along the rail into the elevator with high working efficiency.
Imported electrical components are used to ensure the stability of the circuit system. PLC tracking technology can also be used for automatic fault alarm.
Full automatic glue supply system can automatically add the loss of plastic, and with the glue recycling.
Independent tank control water circulation is used to ensure the bottom paper back and dry, cleaning roller, spout, back glue tank.
The pressure of the pressure roller can be adjusted on one side, and equipped with a pressure scale display. The replacement of the end of the paper size adjustment can be done in one step.
| Property | Value |
|---|---|
| Dimension | 11.5*2*2.4M |
| Min Sheet Size | 400*400mm |
| Video outgoing-inspection | Provided |
| Weight | 5000kg |
| Speed | 7000sheet/Hour |
| Core Components | Engine, Motor |
| Driven Type | Electric |
| Max Sheet Size | 1300*1250mm |
| Top Paper Thickness | 120-500gsm |
| Application | Commodity |

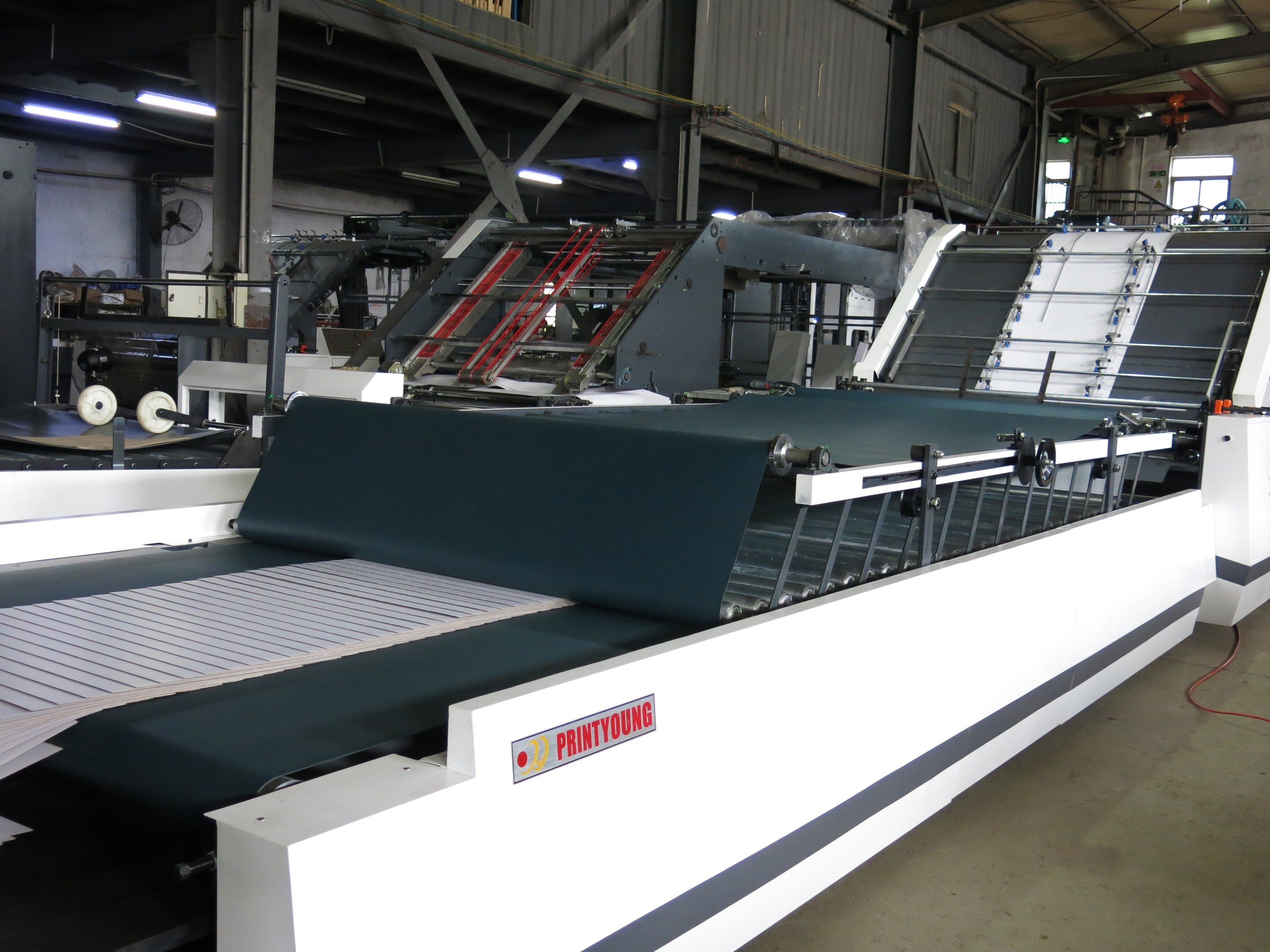

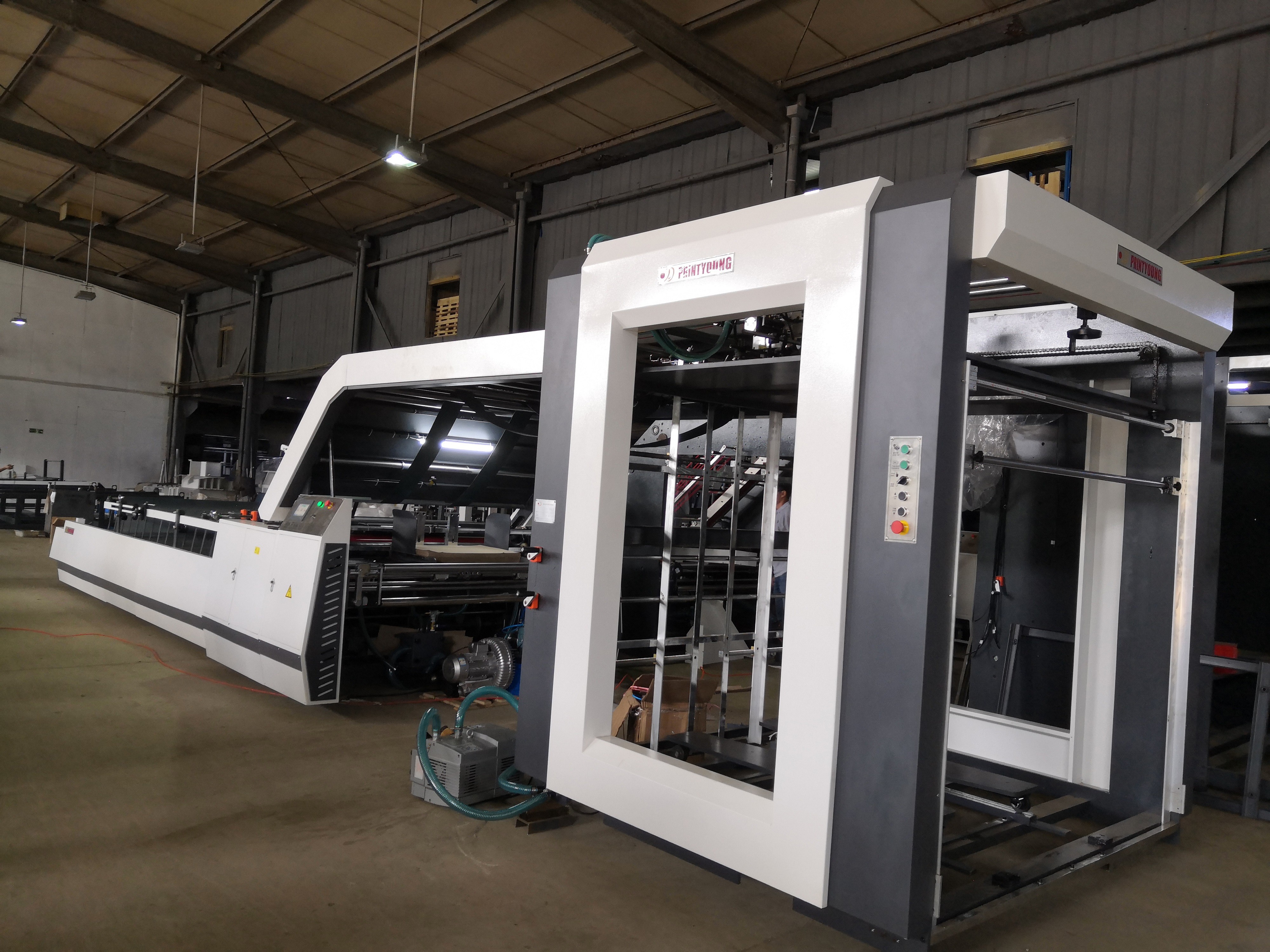

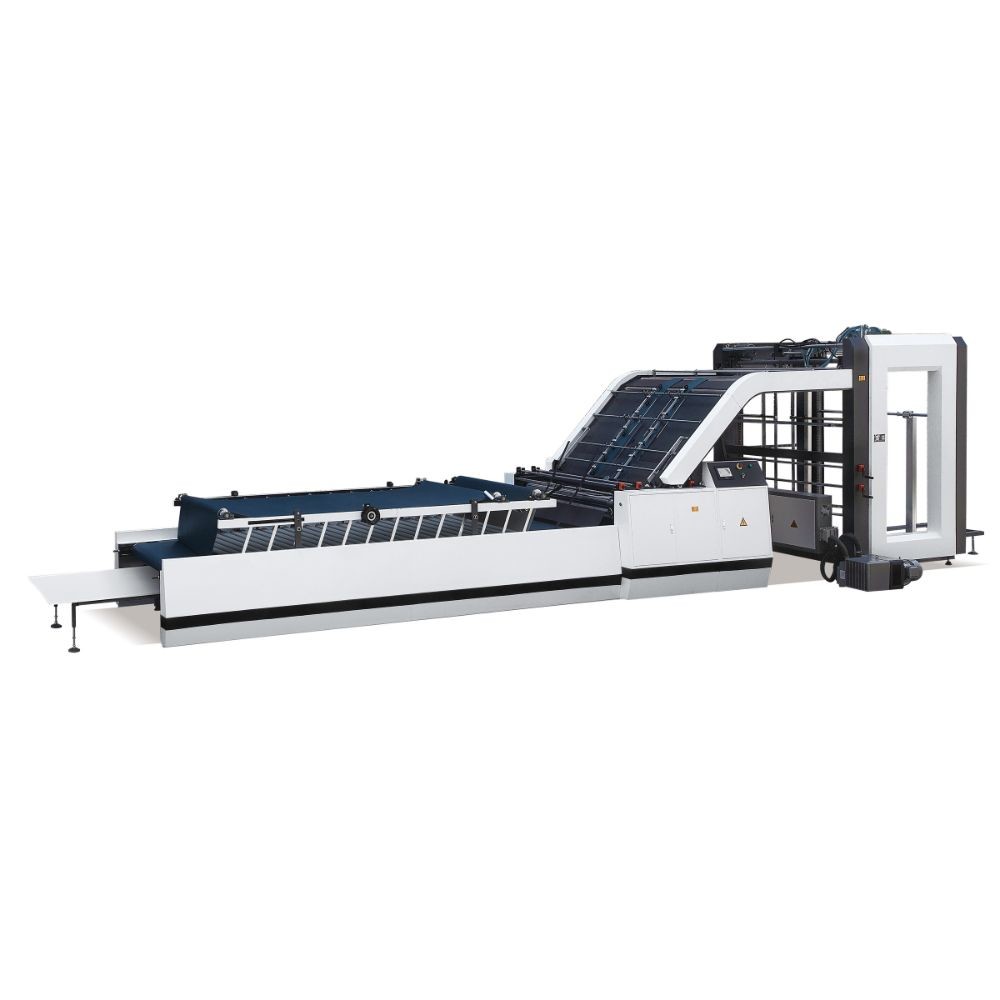

The PRINTYOUNG PRY-1300E Flute Laminating Machine is a fully automatic cardboard laminator designed to provide a convenient, cost-effective, and highly efficient solution for laminating flute board. This fully automatic flute laminator machine has a 10KW power, and provides a one-year warranty and a Machinery Test Report. It is certified with CE and has a minimum order quantity of one set. The packaging details are wooden case and delivery time is 45 days. The payment terms are L/C,T/T and the supply ability is 30 sets per month. The price is USD 20000 per set.
The PRINTYOUNG PRY-1300E Flute Laminating Machine is perfect for industries such as packaging, printing, advertising, and paper processing. It can be used to laminate single-side, double-side, and single-side/double-side flute board, as well as other paper products. The machine has a high degree of automation and is easy to operate. It is also highly efficient and can laminate various types of flute boards quickly and accurately. The automatic flute laminator is ideal for industrial and commercial applications due to its high accuracy, low maintenance cost, and high productivity.
The PRINTYOUNG PRY-1300E Flute Laminating Machine is a must-have for businesses that require a reliable, fast, and cost-effective solution for laminating flute boards. With its high quality and reliable performance, the machine helps to increase the efficiency and productivity of any lamination process. It is a great choice for businesses that require a reliable and cost-effective solution for laminating flute boards.
Our flute laminating machine is a fully automatic flute laminator specially designed for cardboard flute laminating. We guarantee our flute laminator with high quality and competitive price.
We are proud to offer technical support and services for our Flute Laminating Machine. Our expert team of engineers and technicians are available to provide you with the best possible service. From installation and maintenance to repairs and troubleshooting, we are here to help.
We can provide on-site and remote support for any technical assistance you may need. Our service team is knowledgeable and experienced in all aspects of the machine, and can help you diagnose and resolve any issues quickly and efficiently. We also offer a comprehensive suite of preventative maintenance services to keep your machine running smoothly.
Our customer service team is available to answer any questions you may have about the machine and its operation. We also provide training and instruction to ensure you get the most out of your Flute Laminating Machine.
If you have any questions or need any assistance, please don't hesitate to contact us. We look forward to helping you get the most out of your Flute Laminating Machine.
Packaging and Shipping for the Flute Laminating Machine:
A1: The Brand Name of the Flute Laminating Machine is PRINTYOUNG.
A2: The Model Number of the Flute Laminating Machine is PRY-1300E.
A3: The Flute Laminating Machine is made in China.
A4: The Certification of the Flute Laminating Machine is CE.
A5: The Minimum Order Quantity of the Flute Laminating Machine is 1 Set.
