Place of Origin: | China |
---|---|
Brand Name: | PRINTYOUNG |
Certification: | CE |
Model Number: | ZT-0862 |
Minimum Order Quantity: | 1 Set |
Price: | US 220000 Set |
Packaging Details: | Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included. |
Delivery Time: | 200 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1 Set/Sets per Month |
Production Capacity: | 180 Pcs/min | Max. Workable Width: | 1200mm |
---|---|---|---|
Weight: | 34000 Kg | Voltage: | 380V |
Dimension: | 35.3 * 2.5 * 2.7M | Suitable Base Material: | PP Coating (0.01mm~0.05mm) Kraft (75g~100g) Clupak (70g~100g) |
Max Base Material Width: | 1200mm | Max Base Material Printing Length: | 1040mm |
Max Base Material Diameter: | 1300mm | Tube Width: | A-shape Tube 400~620mm |
Tube Length: | 570~1040mm | Installed Capacity: | 35KW |
High Light: | 380V Cement Bag Paper Processing Machinery,Cement Bag Paper Tube Making Machine,Paper Tube Making Machine 180pcs/Min |

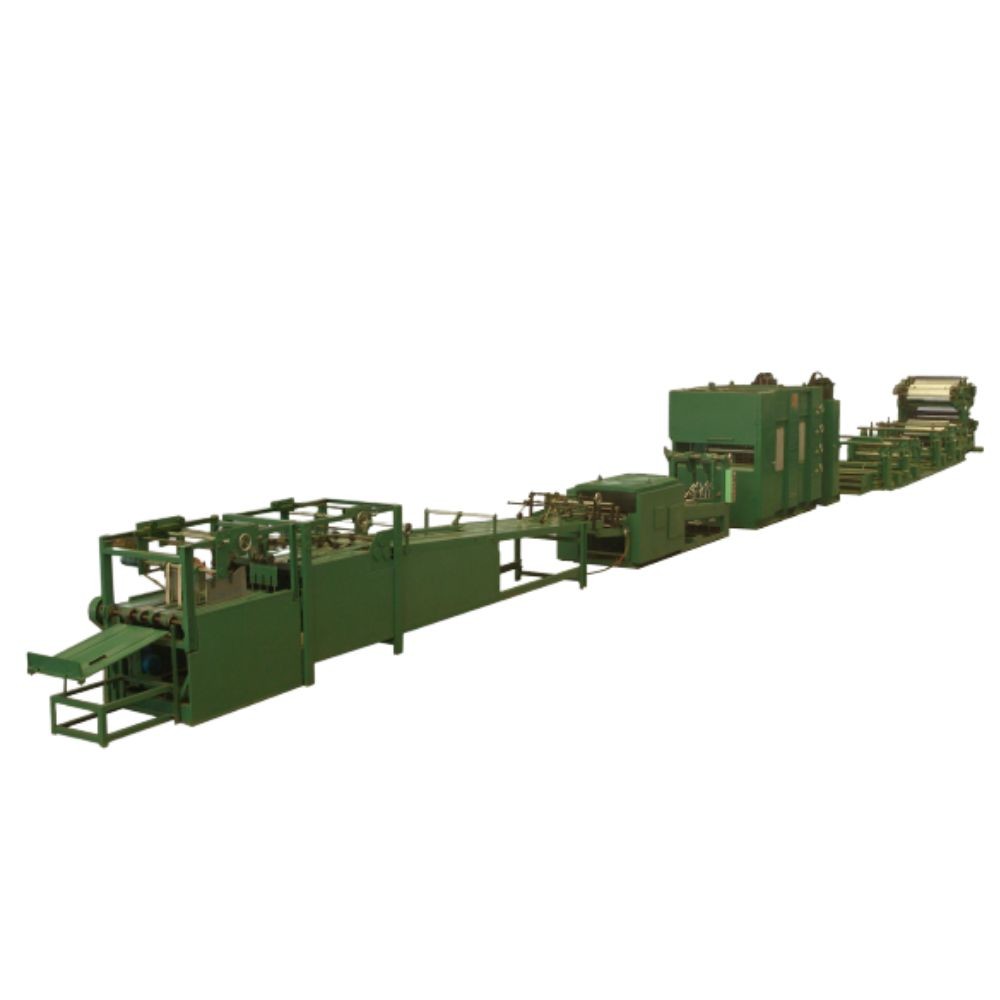

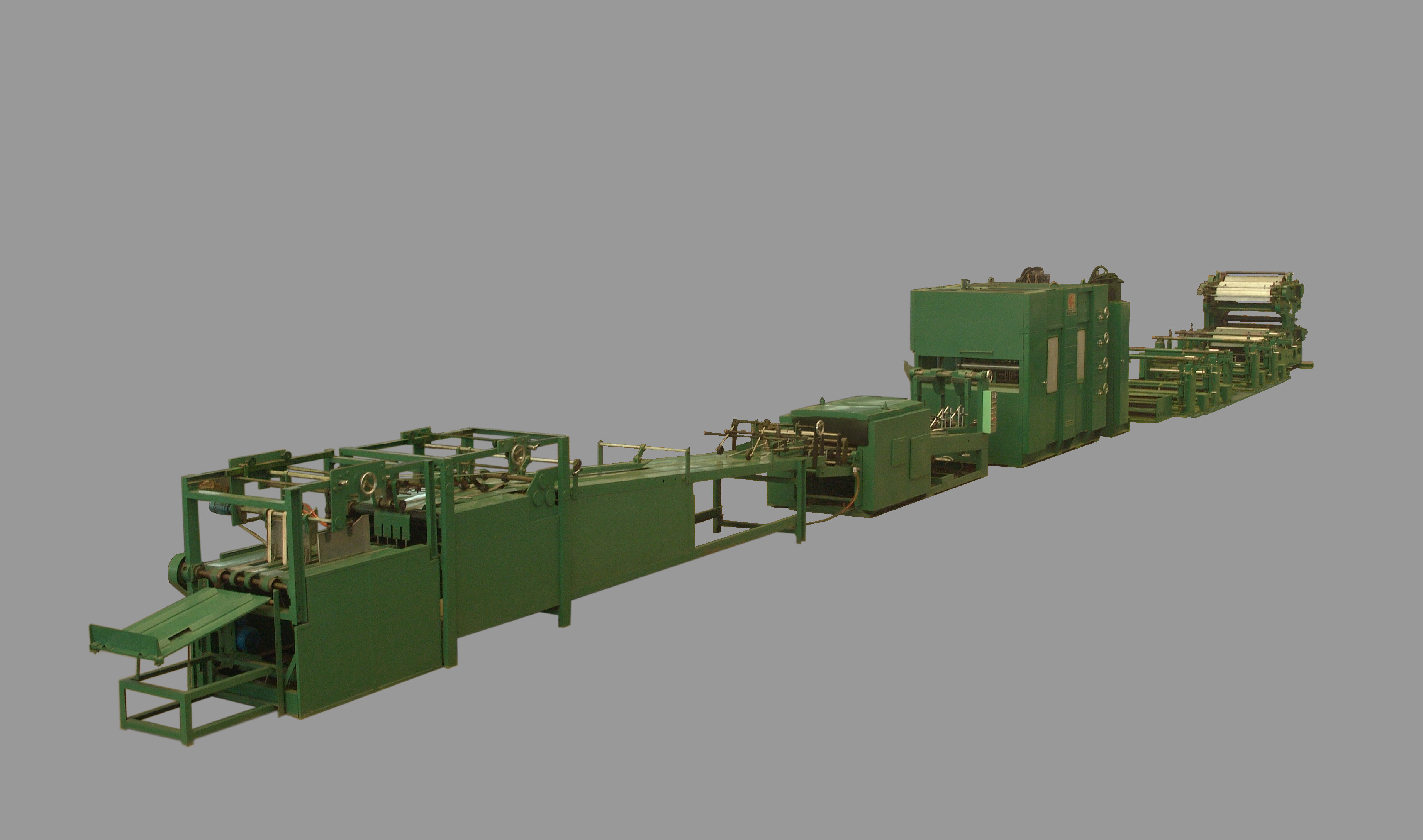

ZT-0862 Paper Tube Making Machine
|
|
---|---|
Suitable Base Material
|
PP Coating (0.01mm~0.05mm)
Kraft (75g~100g) Clupak (70g~100g)
|
Printing Paper Roll Patten
|
4-color printing,
with clear printing patten and color graticule
|
Max Base Material Width
|
1200mm
|
Max Base Material Printing Length
|
1040mm
|
Max Base Material Diameter
|
¢ 1300mm
|
Tube Width
|
A-shape Tube 400~620mm
|
Tube Length
|
570~1040mm
|
Sack-making Speed
|
Design speed (Max):180pcs/min;
Normal Production Speed: 100~ 140pcs/min
( take 800mm length as an example)
|
Installed Capacity
|
35KW
|
Total Weight
|
34 tons
|
Overall Dimensions
|
Length (35.3M) * Width (2.5M) * Height (2.7M)
|
Work Environment
|
Under the situationof humid, overdry weather
or when voltage fluctuates over 5%, handle it carefully
|
