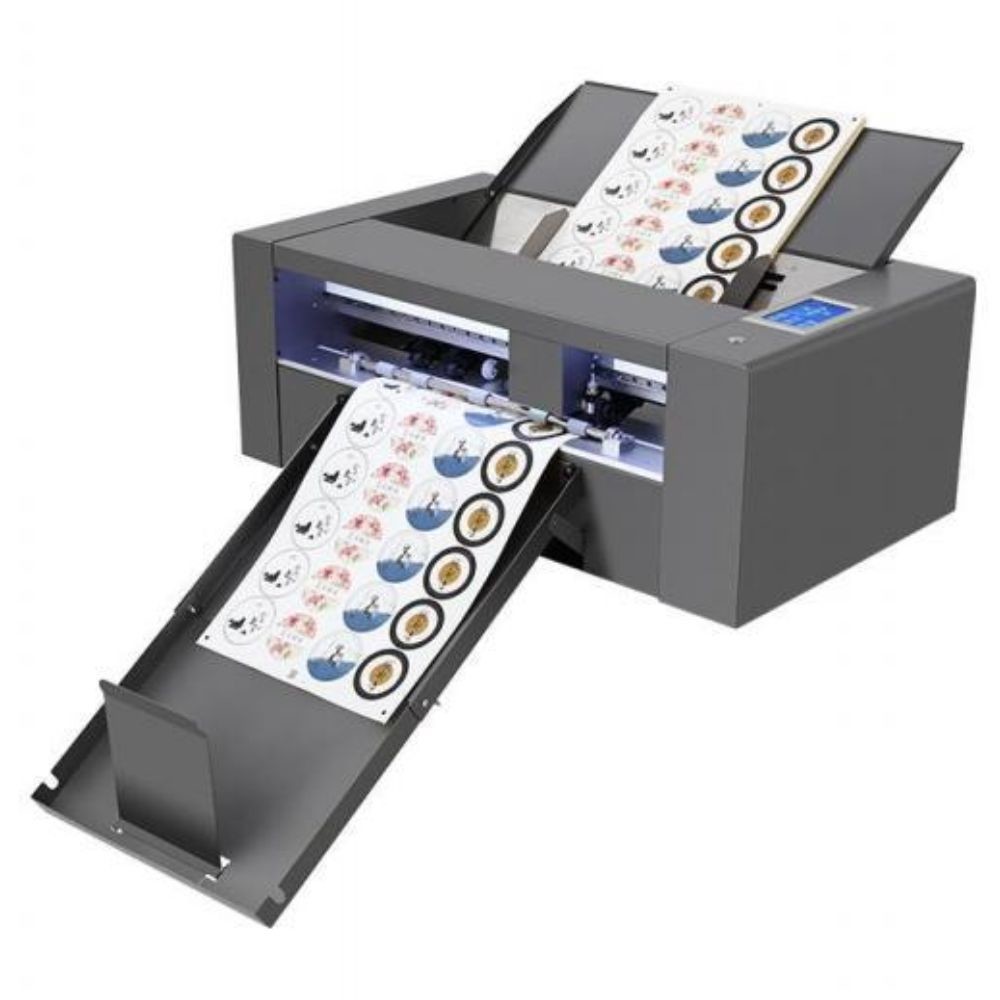

Adsorption Adhesive Fully Automatic Digital Label Half Sheet Die Cutting Machine SF-350

Adsorption Adhesive Fully Automatic Digital Label Half Sheet Die Cutting Machine SF-350
Adsorption Adhesive Fully Automatic Digital Label Half Sheet Die Cutting Machine SF-350 Adsorption Adhesive Fully Automatic Digital Label Half Sheet Die Cutting Machine SF-350 Adsorption Adhesive Fully Automatic Digital Label Half Sheet Die Cutting Machine SF-350 Adsorption Adhesive Fully Automatic Digital Label Half Sheet Die Cutting Machine SF-350
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SF-350
Minimum Order Quantity: 1 Set
Price: US 2200 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Type: Die-cutting Machine Voltage: 220 V
Dimension: 1025 * 745 * 625 Mm Weight: 37 Kg
Max. Workable Width: 350 Mm Max Sheet Size: 350 Mm * 500 Mm
Max Cutting Size: 340 Mm * 490 Mm Min Cutting Size: 180 Mm * 200 Mm
Downforce: 10 - 500 G Max Cutting Speed: 1200 Mm/s
Feed Paper Mode: Automatic Continuous Feeding Press Paper Mode: Double Row Pinch Wheel
Position Mode: CCD Camera Driver: Digital Control System
High Light:

Half Sheet Die Cutting Machine

,

Adsorption Adhesive Die Cutting Machine

,

1200mm/s Automatic Paper Die Cutting Machine

Adsorption Adhesive Fully Automatic Digital Label Half Sheet Die Cutting Machine SF-350 0
SF-350 Digital Paper Die Cutting Machine
Adsorption Adhesive Fully Automatic Digital Label Half Sheet Die Cutting Machine SF-350 1
Features
High resolution camera head
The SF-350 uses a high resolution spacer head for accurate detection of marks mark points (mark points size 5 mm).And can be in color and accurate detection of marks on transparent material.The mark point is the diameter.The 5mm circle is not only very helpful for customers to design typesetting documents.It can also save materials and reduce production costs.
Two-dimensional code system
The SF-350 can automatically read QR codes printed on materials,just add the QR code when making the document and print the QR code text.The SF-350 will automatically recognize QR code documents and cut them accurately cut.This feature reduces file selection time and speeds up production speed,improve work efficiency.
Offline mode - USB flash drive
By software making machine recognizable PLT cutting files,will ruler inch stored in the U disk,the U disk inserted into the machine,you can be real now work offline.
Intelligent touch screen
4.3-inch capacitive screen,simple ICONS and buttons,easy to switch move speed,one click back to the starting point,repeat cutting,QR code working mode,etc.
Network transmission
1.Network transmission,long distance communication is still stable.
2.Multiple computers can be connected to the same machine.
3.One computer can control multiple machines.
Easy maintenance
The SF-35O has three sensors,and the status of the sensors is on the computer,it can be observed in the parameters of the device,which makes it easy for users to find problems and solve them time repair.Many of the machines are cleverly designed to facilitate inspection and after-sales maintenance.
Compatible with both Windows and Mac systems
It comes with standard CDR.AI plug and Cutmaster software.MAC system control software is optional.
Technical Parameters
SF-350 Digital Paper Die Cutting Machine
Model No.
SF-350
Max Sheet Size
350 mm * 500 mm
Max Cutting Size
340 mm * 490 mm
Min Cutting Size
180 mm * 200 mm
Downforce
10- 500 G
Max Cutting Speed
1200 mm/s
Cutting Materials
Sticky note,Adhesive paper,Card,Photo Paper,Heat transfer material,non-woven fabric and other non- metallic materials
Feed Paper Mode
Automatic continuous feeding
Press Paper Mode
Double row pinch wheel
Position Mode
CCD Camera
Driver
Digital control system
Interfaces
USB,LAN,WIFI transmission or
QR code with Udisk offline working
Interface Mode
USB2.0 or 3.0 high-speed transmission
Machine Dimension
Machine dimension:745*432*280mm
Unfold dimension:1025*745*625mm
Machine Weight
Gross weight:40KG/Net weight:37KG
Package Dimension
865 * 550 * 410 mm
Shipping Weight
About 40KG
Software
Adobe Illustrator / CorelDRAW,Cutmaster
Parts
One Knife holder,one box of blade,
one Udisk,one Power cord, one USB cable



Adsorption Adhesive Fully Automatic Digital Label Half Sheet Die Cutting Machine SF-350 2
Adsorption Adhesive Fully Automatic Digital Label Half Sheet Die Cutting Machine SF-350 3
Adsorption Adhesive Fully Automatic Digital Label Half Sheet Die Cutting Machine SF-350 4
Adsorption Adhesive Fully Automatic Digital Label Half Sheet Die Cutting Machine SF-350 5
Adsorption Adhesive Fully Automatic Digital Label Half Sheet Die Cutting Machine SF-350 6
Adsorption Adhesive Fully Automatic Digital Label Half Sheet Die Cutting Machine SF-350 7
Adsorption Adhesive Fully Automatic Digital Label Half Sheet Die Cutting Machine SF-350 8
Adsorption Adhesive Fully Automatic Digital Label Half Sheet Die Cutting Machine SF-350 9
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
