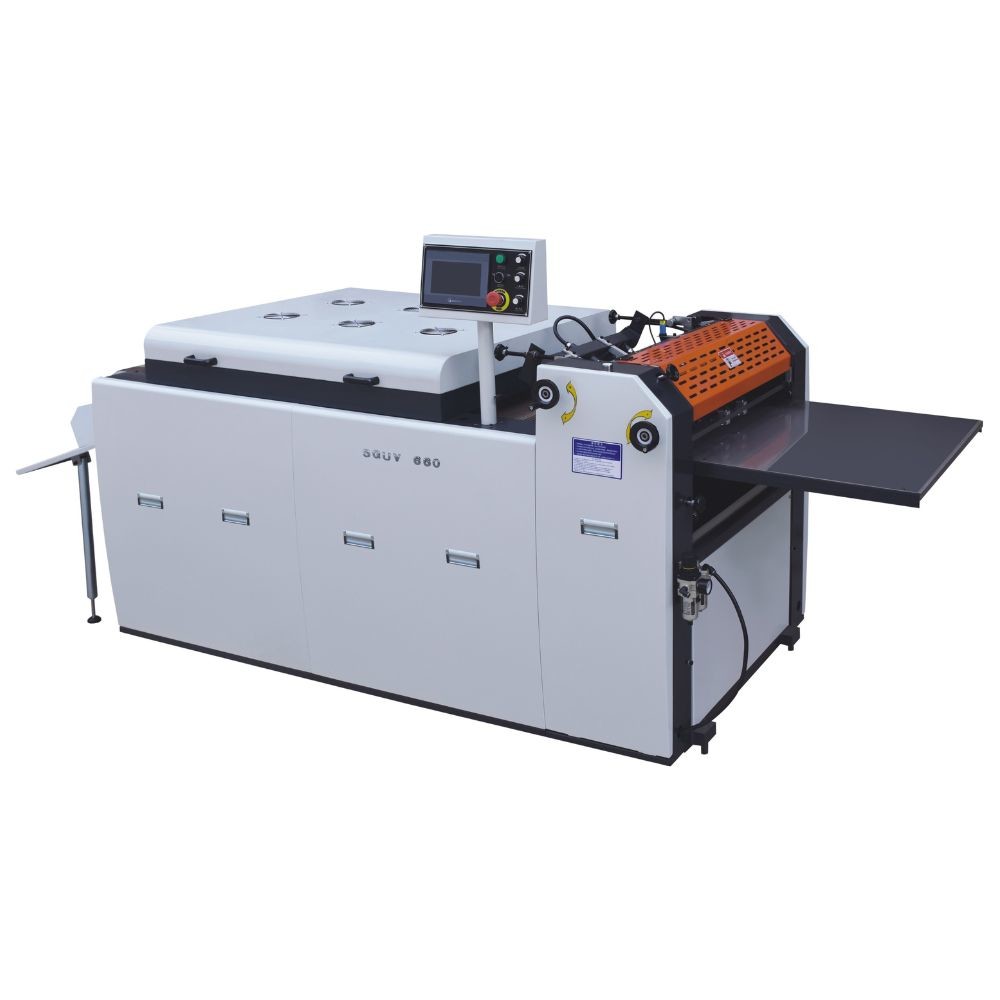

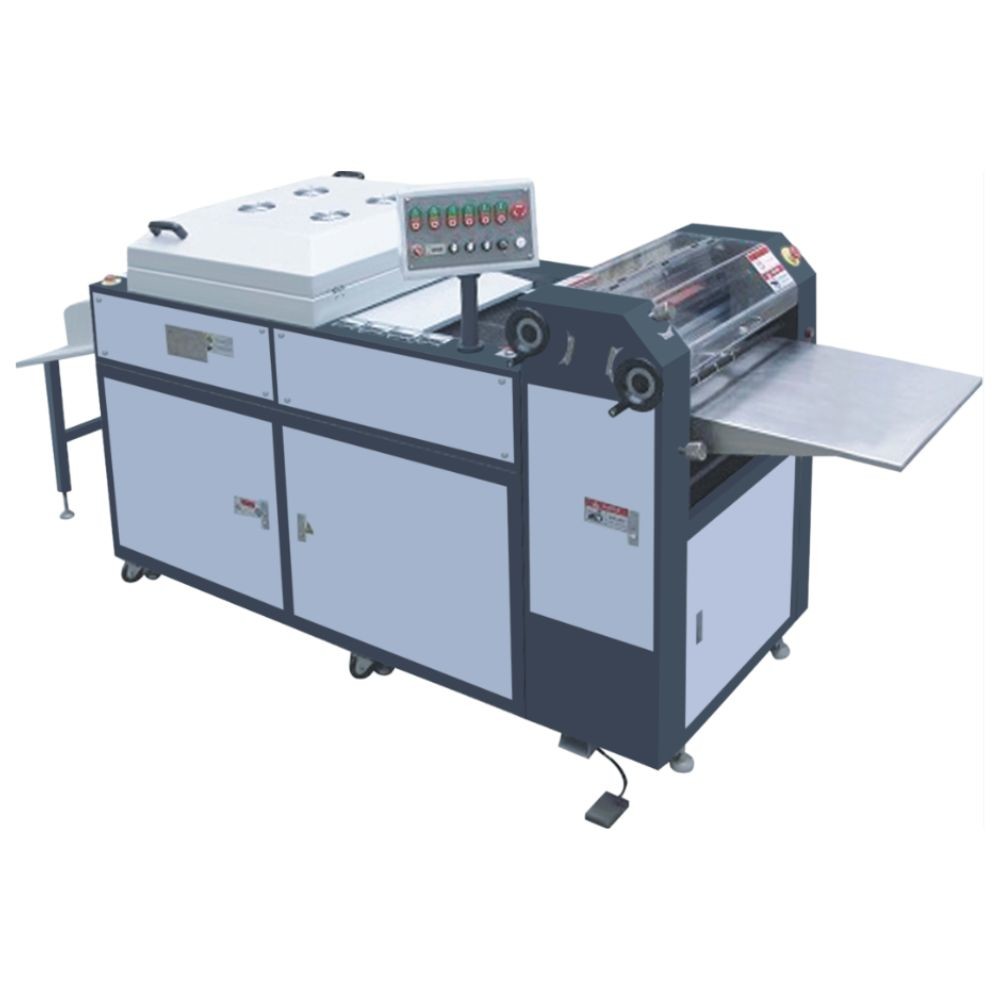

Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series

Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series
Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SGUV-660,760
Minimum Order Quantity: 1 Set
Price: US 1300 - 1400 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Type: Coating Machine Automatic Grade: Semi-automatic
Driven Type: Electric Voltage: 220 V
Packaging Type: Film Packaging Material: Paper
Min. Sheet Size: 150 * 210 Mm Sheet Weight: 100 ~ 500 Gsm
Speed: 0~40 M/min Power: 12 Kw
UV Lamp: 1pcs X 6.5 Kw IR Lamp: 3 Pcs X 1.2 Kw
Package: Wooden Case , Carton Cube
High Light:

Glazing Varnish Coating Machine

,

Semi Automatic UV Coating Machine

,

SGUV Series UV Coating Machine

Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 0
SGUV Series UV Coating Machine
Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 1
Features
SGUV small size manual UV coating machine is a newly development and designed machine in our company.Equip with the features of easily operation and simply maintenance,together with excellent performance,which applicable to post-press small size papers’ coating and water-base oil coating.
* This UV Coating Machine is equipped with UV curing and IR drying device.
* Digital frequency converter speed control.And independent conveyor driven.
* Larger diameter coating rollers makes the coating effect smoother & brighter.
* Full coverage splash guards to protect from splashing.
* Used vacuum airbed for maximum hold down the paper sheets on conveying.
* UV magnetic leakage transformer with parallel capacitor design can better endure the voltage fluctuating impact.
* Two level UV lamp power setting.
* Easy access UV lamp chamber and replacement.
* High velocity blower fan for cooling and exhaust.
* Safety locker on all machine doors and covers.
* Full coverage protection against UV radiation around the UV lamp chamber.
* Lower temperature control on the UV lamp chamber surface.
* Emergency stop switches at arms length throughout the machine.
* Interlocks design prevents against disoperation.
Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 2
Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 3
Technical Parameters
SGUV Series UV Coating Machine
Model SGUV-660 SGUV-760
Max. Sheet Size
620x915mm
 740 x 915 mm
Min. Sheet Size
150 x 210 mm
 150 x 210 mm
Sheet Weight
100 ~ 500 gsm
 100 ~ 500 gsm
Speed
0 ~ 40 m/min
 0 ~ 40 m/min
Power
12.0 Kw
 12.0 Kw
UV Lamp
1 pcs x 6.5 Kw
 1 pcs x 6.5 Kw
IR Lamp
3 pcs x 1.2 Kw
 3 pcs x 1.2 Kw
Dimension
3250 x 1180 x 1230 mm
 3250 x 1250 x 1230 mm
Package
wooden case
 wooden case
Weight
550kg
 600kg
Configuration
Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 4
Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 5
Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 6
Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 7
Applications
The SGUV series is a practical fully automatic coating machine developed by our company, which is suitable for posters,books,brochures,color boxes,color box packaging,handbags, etc.

Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 8
Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 9
Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 10
Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 11
Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 12
Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 13
Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 14
Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 15
Semi Automatic / Online Glazing Full Spot UV Coating Machine SGUV Series 16
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
