Fully Automatic Linkage High Speed UV Coating Machine SGUV Series

Fully Automatic Linkage High Speed UV Coating Machine SGUV Series
Fully Automatic Linkage High Speed UV Coating Machine SGUV Series Fully Automatic Linkage High Speed UV Coating Machine SGUV Series Fully Automatic Linkage High Speed UV Coating Machine SGUV Series Fully Automatic Linkage High Speed UV Coating Machine SGUV Series Fully Automatic Linkage High Speed UV Coating Machine SGUV Series
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SGUV Series
Minimum Order Quantity: 1 Set
Price: US 38000-42000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Type: Coating Machine Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V
Packaging Type: Film Dimension: 11500x2050x2000mm
Weight: 65000 KG Speed: 0~80m/min
Power: 50Kw Paper Feed Heigh: 1100mm
Paper Stack Height: 1050mm
High Light:

High Speed UV Coating Machine

,

Automatic Linkage UV Coating Machine

,

50kw Uv Varnish Coating Machine

Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 0
SGUV-1200A UV Coating Machine
Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 1
Features
1.Paper pre-stacker,to realize non-stop paper feeding and receiving.
2.High degree of intelligence,one-button start and acceleration,more convenient and efficient than traditional segmented control.
3.The shaft head is 55mm large,which is more stable and firmer than the traditional 35mm under high speed, without deformation,and good coating effect.
4.Synchronous belt transmission,the equipment is more stable,no jitter.The surface texture effect will be better in high-end products.
5.The oil guard has high precision,and it is more difficult for water to enter the bearing than the traditional one.
6.The air knife is easy to operate!High-precision correction,tight on both sides,no slight soft deformation and damage to the mesh belt.
Technical Parameters
SGUV UV Coating Machine
Model
SGUV-1200A
Max. Sheet Size
1200*1000mm
Min. Sheet Size
300*300mm
Sheet Weight
80~450g/m2
Speed
0~80m/min
Power
50Kw
UV Lamp
3pcsx9.75Kw
IR Lamp
18pcsx1.5Kw
Paper Feed Heigh
1100mm
Paper Stack Height
1050mm
Weight
65000kg
Dimension
11500x2050x2000mm
Configuration
Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 2

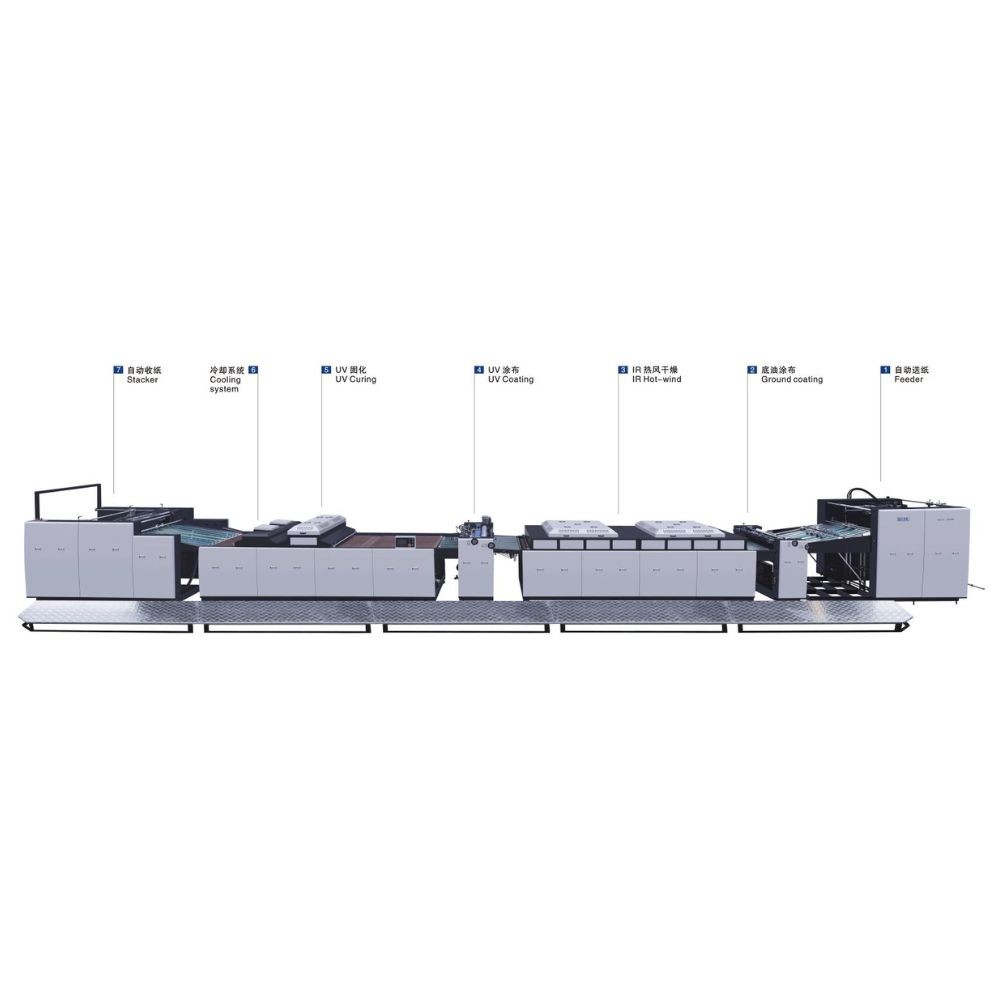

The whole machine has a one-key acceleration function.After the main machine accelerates,the oven,paper delivery,feeder,and metering roller will all change according to the speed of the main machine.The metering roller controls the oil thickness,which can be set on the touch screen.
Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 3 Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 4

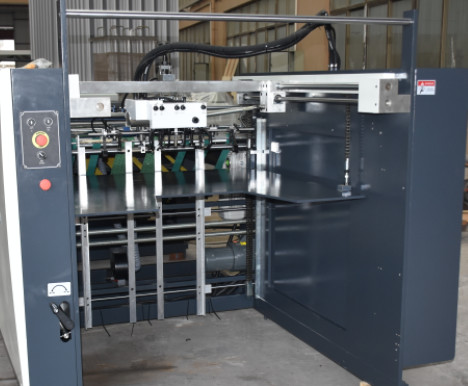

Auto Feeding

1.Adopt high-speed offset press feeder (12000 sheets/hour) to ensure fast and stable operation.
2.Paper photoelectric control,automatic lifting.
3.Double protection feeder lifting safety.
4.Using the latest paper stacker design,the entire tray can be pushed in,and the tray can be pushed in directly after printing,without manual paper sorting.Pre-stacker can also be used.two-way choice.Greatly save paper time and reduce the labor intensity of operators.
Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 5 Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 6 Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 7

Coating Section

1.Using cast iron body,strong rigidity and long life.
2.Three-roll reverse coating.
A.The thickness of the oil can be controlled by adjusting the metering roller speed to save oil.
B.A separate frequency converter controls the reversal of the metering roller,which has more frequency converters,motors,reducers and other configurations than the traditional roll-to-roll coating.
C.Iron roller 130MM adopts chrome-plated mirror surface treatment,rubber roller 165MM adopts 60 degree polyurethane rubber roller.The larger the roller,the thicker the rubber, ensuring fine coating and no orange peel.
3.Equipped with an air knife,it can make 80G thin paper,the size of the wind,and the time of blowing are controlled by PLC.
4.Automatic stop function for roll paper.
5.Automatic counting function.
6.The rollers are adjusted synchronously,driven by the synchronous belt to make the coating effect stable and great.
7.Equipped with two oil tanks,UV and IR,and equipped with temperature heating control to ensure that the UV oil is coated between 40-60 degrees.
8.The gap between the coating roller and the pressure roller of each machine head is adjustable from 0-50mm.
9.The main rollers adopt 55-diameter shaft heads and heavy-duty bearings,which greatly extend the life of the bearings.
10.The diaphragm pump is used for oil supply,no motor is needed,and the operation is safer.
11.Double scrapers and a unique bottom roller automatic cleaning system,double oil pan device,the lower roller is immersed in the small oil pan when working,which can effectively clean the lower roller and prevent the oil from drying during shutdown.
Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 8 Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 9 Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 10
Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 11 Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 12 Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 13

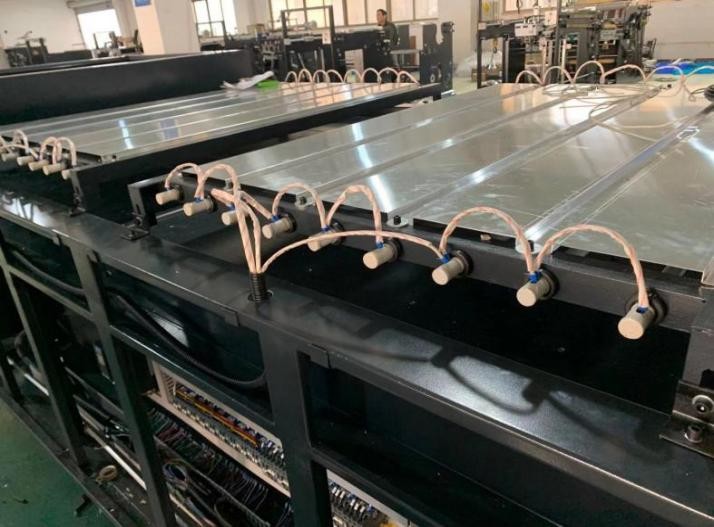

IR Drying and UV Curing System

1.The better the leveling of the oven,the stronger the drying and curing.
2.Equipped with UV and IR systems,which are controlled separately and cannot be used at the same time.
3.27 IR lamps and 3 UV lamps,IR lamps generally have a life of 2 years,UV lamps have a life of 800~1000H, and transformers have a life of more than one year.
4.The UV part adopts 8-12KW adjustable electronic light source,which has greatly improved safety performance than the traditional voltage source light source.The light source can adjust the brightness automatically as the change of machine's running speed,which can be changed from 30% to 100%.Thus the average energy consumption is saved by more than 30%.
5.Emergency stop or overheat protection device,when the emergency stop or the temperature inside exceeds 150 degrees,the protective cover will automatically rise to dissipate heat to prevent fire.
6.Equipped with a ventilation system,under the UV curing box,there is a strong suction device composed of an exhaust fan and a wind box,which can extract ozone,dissipate heat and make the paper not easy to curl in the furnace,but can pass smoothly.
7:Equipped with automatic correction system,(double correction,double over-limit protection).The paper conveying adopts the imported Teflon conveyor belt,which can prevent ultraviolet rays,is strong and durable, does not support the paper,the electric eye detects the Teflon conveyor belt,and the automatic homing correction device.
8.The whole process of suction to ensure that the coating products will not float and do not pile up paper.The oven is equipped with iron wire protection to prevent the paper from floating on the paper and cause a fire.

Cooling System

Semi-automatic PET bottle blowing machine bottle making machine bottle moulding machine PET bottle making machine is suitable for producing PET plastic containers and bottles in all shapes.

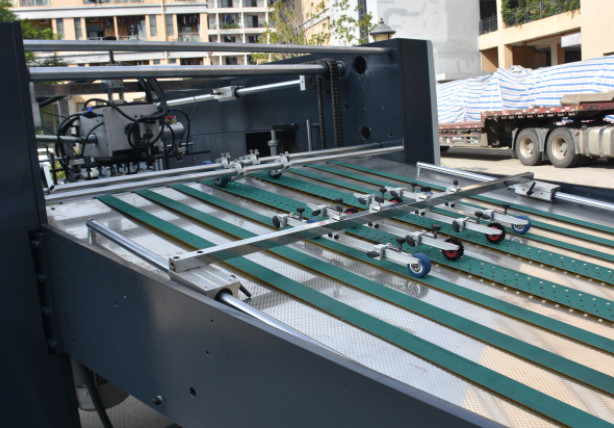

Automatic Delivery System
1.Paper photoelectric control, automatic lifting
2.Double protection feeder lifting safety
3.Equipped with pneumatic paper flap function,you can set the number and time of the paper beat to ensure neatness
4.Disorderly paper automatic lowering function
Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 14

Power Dusting Device(Optional)

1.Adopting the water powder removal method,the powder removal efficiency reaches 75% without damaging the paper.The body is made of high-quality cast iron to ensure accuracy.The bottom oil head adopts three-roller coating and adopts synchronous belt wheel transmission to improve transmission efficiency and reduce coating lines.
2.Increase the coating effect without scratching the paper.
Main configuration
Accessory Name
Brand/Origin
Frequency Converter/PLC
Shenzhen/Inovance
Contactor/Relay
Shanghai/Inovance
Botton
Shanghai/Inovance
Main Fiber Optics,Optoelectronics
Japan/OMRON
Stroke/Limit Switch
Shanghai/Schneider
Electromagnetic Valve
Shanghai/AirTac
Pneumatic Control Components
Shanghai/AirTac
Teflon Conveyor Belt
Xiamen/Sibek
Motor/Reducer
Zhejiang/Dongfang Transmission
Host Wall Panel
HT200
Scraper
Switzerland
Main Bearing
Japan,NSK
Spare Parts
Name
Warranty
Coating Roller
6 months
Scraper Blade
3 months
Mesh Belt
6 months
UV Lamp
1000H
Pneumatic Parts
6 months
Service and Warranty
1.All machines have been finished all adjustment and test in NEW STAR workshop before delivery,the mechanical structure,components adjustment,electrical operation of the switch, and the matters needing attention,day-to-day maintenance of equipment,etc.,In order
to ensure the normal operation of equipment,later.
2.12 months for electric parts,the service is for whole life,once you asked the spare parts, we can send immediately,customer afford the courier fee.(Since the date of purchase from delivery and on the board, within 12 months)
3.After receiving the notice from the customer for repairs,we will analyze it remotely,solve it,and give the customer a clear solution within 1 working day.Both parties can negotiate the time for after-sales service personnel to be in place,but our service personnel should arrive at the customer's designated service location within 48 hours.
4.After warranty,our company still provides customers with spare parts at preferential prices.And according to customer needs to provide customers with paid repairs and maintenance services.The company has sales branches or offices in 28 provinces and
cities across the country and various countries in the world,which will greatly satisfy the sales and service capabilities of customers all over the world.
Applications
The SGUV series is a practical fully automatic coating machine developed by our company, which is suitable for posters,books,brochures,color boxes,color box packaging,handbags, etc.
Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 15
Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 16
Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 17
Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 18
Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 19
Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 20
Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 21
Fully Automatic Linkage High Speed UV Coating Machine SGUV Series 22
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
