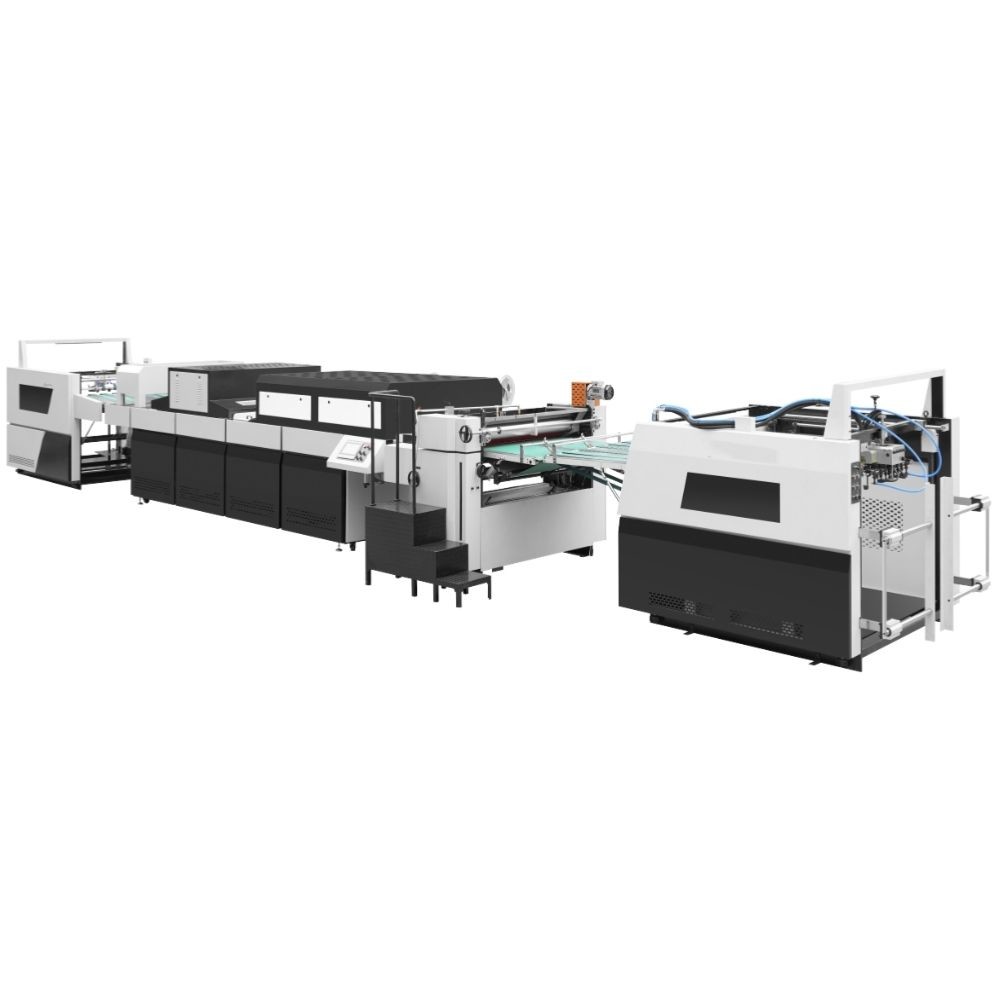

SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed

SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SG-E1200
Minimum Order Quantity: 1 Set
Price: US 36300 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Type: Coating Machine Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V
Dimension: 12800*2000*1800mm Weight: 6900 KG
Max. Paper Width: 1150mm Max. Paper Length: 1150mm
Min. Paper Size: 390*320mm Roller Length: 1250mm
Paper Thickness: 80-600gsm Working Speed: 10-80m/min
Working Power: 10kw Feeding Paper Pile Height: 1150mm
Collecting Paper Pile Height: 1050mm Oil Type: Water Based Oil, UV Oil, Blister Oil, Plastic Oil
High Light:

UV Oil Varnish Coating Machine

,

Automatic Varnish Coating Machine

,

UV Coating Machine 80m/min

SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 0
SG-E1200 Automatic UV Oil Varnishing Machine
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 1
Features
SG-E series UV oil coating machine which is suitable for the varnishing and polishing process of various paper (80-600g/m²),machine for water-based oil,UV oil and blister varnish oil coating,after processing the print surface has the damp-proof and water-proof effects.Machine adopts the reversing mechanism to make the oil layer smooth and fine, save varnish oil and meets the high quality requirements.
SG-E model adopts air knife system which controlled by memory type PLC.It has the characteristics of beautiful appearance,stable and reliable performance, simple and convenient operation and high automation degree.
*Water base oil,UV oil,blister varnish oil,plastic oil,soft touch oil
Technical Parameters
Model
SG-E1200/SG-E1500/SG-E1700/SG-E1900
Max Paper Width-(X)
1150/1450/1650/1850mm
Max Paper Length (Y)
1150/1450/1650/1850mm
Min Paper Size
390*320mm
Roller Length
1250/1550/1550/1950mm
Paper Thickness
80-600gsm
Working Speed
10-80m/min
Working Power
10/12/15
Feeding Paper Pile Height
1150mm
Collecting Paper Pile Height
1050mm
Voltage
380V 50Hz 3P
Main Motor Power
3.5kw
Total Power
60/70kw/85kw/85kw
Infrared Lamp Power
1.2kw*18pcs/1.2kw*18pcs/1.5kw*18pcs
Ultraviolet Lamp Power
8kw*3pcs/10kw*3pcs/15kw*3pcs/15kw*3pcs
Weight
6900kgs (SG-E1200)
Weight(include dust remover)
7300kgs
Dimension
12800*2000*1800mm (SG-E1200)
Dimension(include dust remover)
13800*2000*1800mm
Oil Type
Water Based Oil, UV Oil, Blister Oil, Plastic Oil
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 2
Configuration
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 3

Feeding Unit

1.High Speed Feeder,4 suckers for lifting and 4 suckers for conveying structure.
Max Speed 12000 sheets/h
2.The paper feeding table has upper and lower over-limit protection.
3.Double or multi-sheet detection device.
4.The paper pile table rise protection device, there is a micro switch above the paper carrier to prevent the paper from rising too
high and hitting the feeder.
5.Becker Vacuum Pump.
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 4

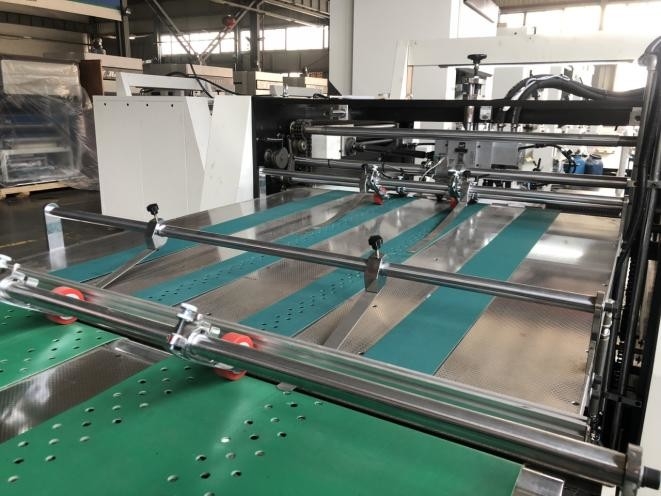

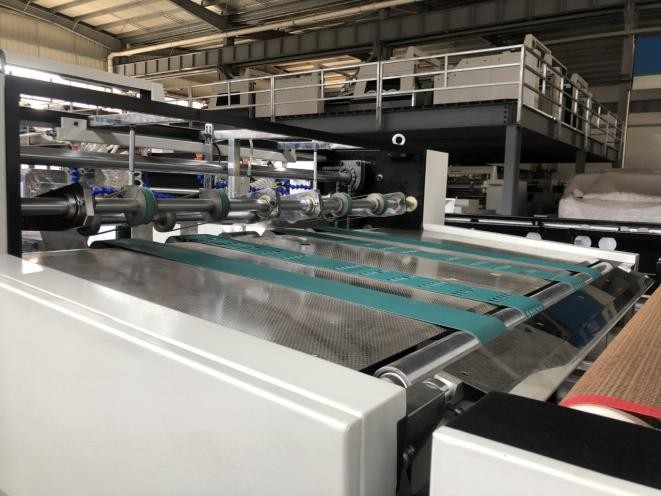

Conveying Table

1.The conveying table adopts customized stainless steel corrugated board.
2.The brush wheel and rubber pressing wheel move smoothly.
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 5


Dust Remover and Inkjet Printer(Optional)
Water powder remover device (optional) increase one coating unit for water powder remover, remove the dust on the surface of thepaper after printing to avoid white spots after the paper is coated.
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 6
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 7

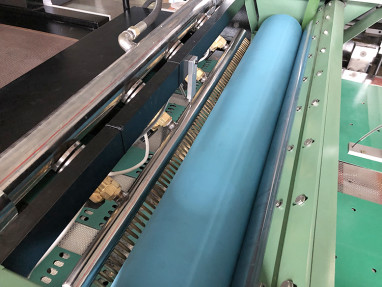

Coating Host

1.Three rollers reversing speed control head to ensure the water-based varnishing effect without streak printing.
2.The metering rollers are individually motor driven to ensure even gluing.
3.Improved air knife technology for thin paper (80-500g) to ensure that the paper does not attach to the roller after coating and runs smoothly.
4.Add pedal for workers to step on and use,more convenient to debug the machine,and add railing behind the pedal for more safety.
5.Upgrade the touch screen operation center console,more convenient and accurate operation.
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 8
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 9

Dryer

1.Infrared drying with 18pcs Infrared lamp.
2.Ultraviolet drying with 3pcs ultraviolet lamp.
3.Fan cooling device.
4.Lower receiving table:Multiple sheets enter the paper collector,the bridge plate is automatically turned up by induction,the machine operates normally,and the receiving table collects paper.
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 10
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 11
The intelligent transformer for Ultraviolet lamp (optional),energy saving 30-40%.
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 12
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 13
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 14

Automatic Collector

1.Adopt pneumatic paper sorting structure to ensure the neatness of the paper and facilitate the next process.
2.Counting electric eye,the number of running paper is displayed on the display screen at the take-up machine,which can be cleared and accumulated.
3.Induction electric eye,sensing the length of the paper,if the length of the paper changes, the belt will accelerate,and the baffle of the take-up machine will overturn and lift the paper.
4.Reduction wheel to prevent the paper from being damaged due to too fast hitting the baffle.
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 15
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 16
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 17
UV oil bucket Waterbase oil bucket Air storage tank



Applications
Widely applicable for laminating in packaging,paper box,books,magazines,calendars,carton, handbags,Gift box,Wine packaging paper improving the printing matter grades,and achieve the purpose of dust-proof,water-proof,oil proof.It’s the best choice for printing and laminating enterprises of all scales.
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 18
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 19
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 20
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 21
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 22
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 23
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 24
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 25
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 26
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 27
SG-E1200 Automatic UV Oil Varnish Coating Machine High Speed 28
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
