Paper Wrap Size (A×B): | Amax 610mm Bmax 850mm | Cardboard Size (C×D): | C 600mm D 800mm |
---|---|---|---|
Paper Wrap Thickness: | 100-200g/m2 | Cardboard Thickness: | 0.8-3mm |
Position Precision: | ± 0.5mm | Production Speed: | ≦35 Sheets/min |
Paper Pile Height: | 300mm | Cardboard Pile Height: | 1000mm |
Glue Tank Capacity: | 60L | Machine Diemension: | L6600×W4100×H3250mm |
High Light: | 200g/m2 rigid box forming machine,60L Glue tank rigid box machine,advanced PLC rigid box forming machine |
1.Feeder part : Feeder to achieve automatic delivery for wrap paper and cardboard, precision to sunction one sheet per time, keep them no deviation durning delivbery.
2.Gluer part: Hot-melting glue system to automatic heating, circulation, mix the glue and precision to control the viscosi- tyof glue, can aso automatic wash up gluing tank after finish glue work.
3.Quad stayer: Quad stayer to automatic folding cardboard and sticking its four corners by hot melt glue tape, then delivery itto named place of converying belt.
4.Spotter part: The hydraulic pneumatic spotter device combine with precision photoelectric detecting swith can to correctingand keep right positioning the sticked cardboard box on glued wrap paper.
5.Press part: The square press tooling can compact each conveying box that under its range, make the touch surface betweenwrap paper and cardboard more neat and smooth, expel air bubbles.
6.Box forming parts: Can continuous feeding, folding box, turn in box, box wrapped with one time finish.
7.Control panel: The convenient control panel equiped with sensitive touch screen-HMI system can freely transform between English and Chinese, make each operate turn to easy.
8.PLC Part: This machine adopts the advanced PLC, it can precision control and realize the details operation ofauto- matic rigid box production process .

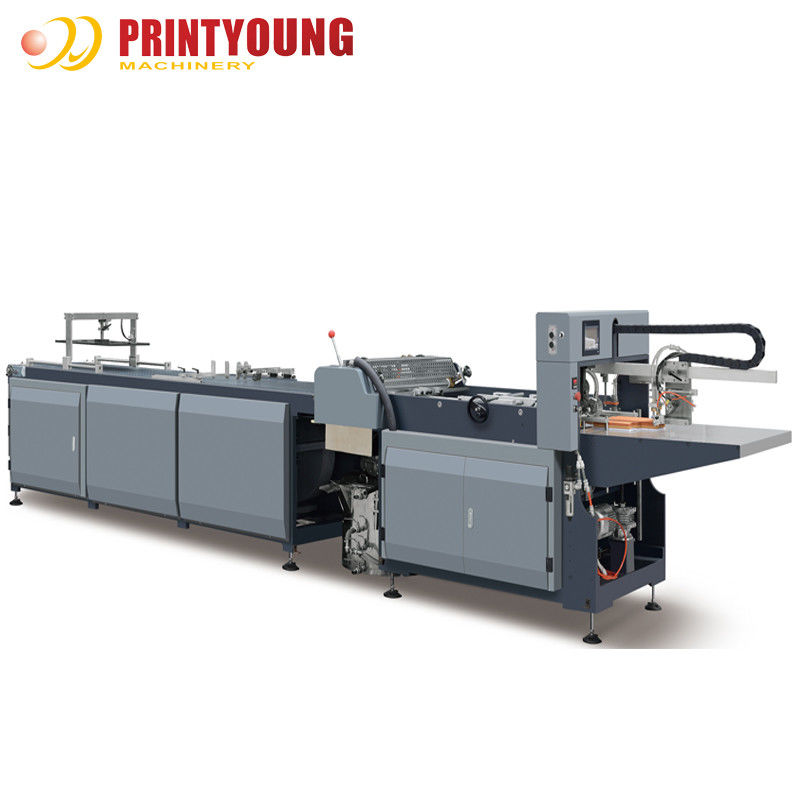

S600 Fully automatic rigid box making machine is the best equipment to make top grade rigid box. Reasonable design and credible performance. It consists of feeder part, corner pasting part, gluing part, positioning part and wrapping part.The machine adopts advanced programmable logic control- ler, photoelectric tracking system, accurate hydraulic pneumatic deviation correcting system, and convenient touch screen human machine interface (Chinese and English operating panel), etc. to achieve automatic cardboard and paper delivery, four corners pasting, paper gluing, auto conveyance, positioning, pressing, automatic box drawing and catching, wrapping and all the work done consecu- tively just in one time to achieve high speed production. It achieves fully automatic production via on-line operation of machinery, hydraulic, pneumatic and electronics systems, and so on. Increased production efficiency many times, innovated the conventional rigid paper box production, more than 30 times production efficiency was improved compared with traditional technology. This machine is widely used to making shoes box, shirt box, jewelry box, gift box, and other luxurious paper boxes.
