350×350mm Paper Laminating Carton Box Flute Laminator

350×350mm Paper Laminating Carton Box Flute Laminator

350×350mm Paper Laminating Carton Box Flute Laminator
350×350mm Paper Laminating Carton Box Flute Laminator

Product Details:

Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: YB-1300B

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: wooden case each Flute Laminater
Delivery Time: within 40 days
Payment Terms: L/C, T/T,
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Max Size: 1300×1250m Power: 8kw
Min Size: 350×350mm Speed: 0-90m/min
Weight: 3500kg Machine Size: 8000×1970×1750mm
High Light:

350×350mm Flute Laminator

,

Carton Box Flute Laminator

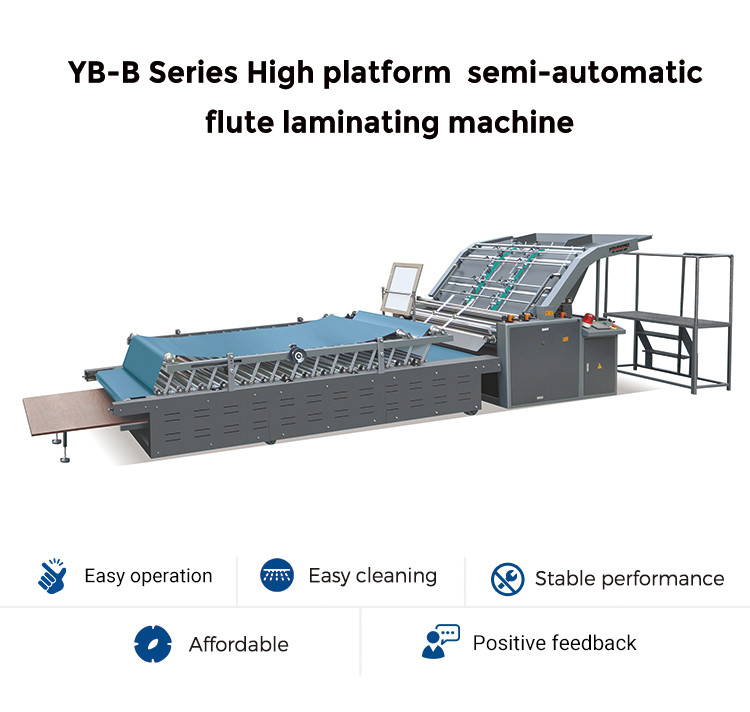

Production:YB-1300B Semi-automatic carton box Flute Laminater



Introduction:

This machine use bottom sheet automatic sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for color top sheet and corrugated paper laminating, color top sheet and grey cardboard laminating.



Function description:

1. Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking

2. The humanized design that manually feeding from the front makes delivery more easier and efficient.

3. Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.

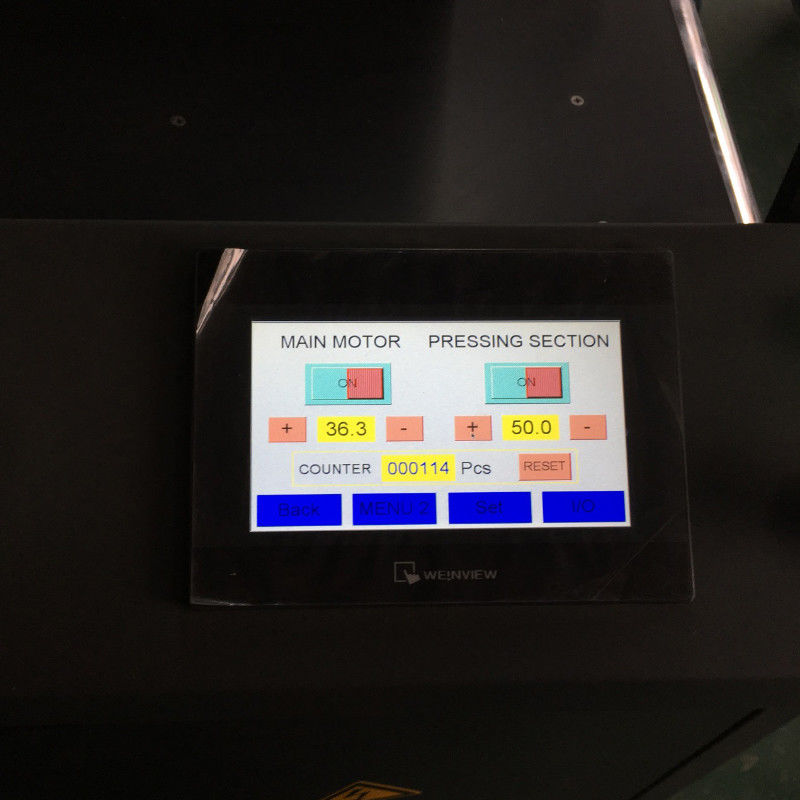

4. Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm

5. The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste;

6. The scientific design of the metering roller speed to ensure the glue evenly on the same time, to avoid rejection of glue at high speed.

7. Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick.

8. Control of water tank cleaning cycle using an independent method, clean, hard rubber product;

9. Suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating;

Color top sheet 175-500g and grey cardboard paper laminating



Technical data:

Model Max Size Min Size Power Speed Weight Machine Size
PRY-1100B 1100×1100mm 350×350mm 8kw 0-90m/min 3000kg 8000×1770×1750mm
PRY-1300B 1300×1250mm 350×350mm 8kw 0-90m/min 3500kg 8000×1970×1750mm
PRY-1450B 1450×1250mm 350×350mm 9kw 0-90m/min 4000kg 8000×2020×1750mm
PRY-1650B 1650×1300mm 350×350mm 11kw 0-90m/min 4500kg 8000×2250×1750mm


Configuration



350×350mm Paper Laminating Carton Box Flute Laminator 0



Why choose us?

350×350mm Paper Laminating Carton Box Flute Laminator 1
