High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

Certification
Good quality Film Laminating Machine for sales
I Can' t Express How Much I m Satisfied As I Can't Find Right Words . Thank You a Lot For Your Respect Of Quality And Serious Continue On This Road.

—— Adil from Morogo

I'm Online Chat Now

High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

China High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min supplier
High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min supplier High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min supplier High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min supplier

Large Image :  High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

Product Details:

Place of Origin: Shanghai
Brand Name: Printyoung
Certification: CE ISO
Model Number: 1800

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Neutral packaging, suitable for shipping in a solid iron frame composite box or fumigation wooden box, to adapt to climate change, Fang Lin, moisture, mold, shock, rust.
Delivery Time: 5-8days (stock),20-60days(unstock)
Payment Terms: L/C, T/T, Western Union
Contact Now
Detailed Product Description
Type: Packaging Line Automatic Grade: Automatic
Corrugated Rollers: Tungsten Carbide Corrugated Rollers Flute Type: A/B/C/E/F
Application: 2 Layer Corrugated Cardboard Production Line Driven Type: Hydraulic
Max. Paper Width: 1800mm Max. Speed Of Machine: 150m/min
Max. Width Of Corrugating Roll: 1850mm

                 High Speed 2 Layer Corrugated Paperboard Production Line

Quick Detail



Max. paper width 1800mm
Max. Width of corrugating roll 1850mm
Max. speed of machine 150m/min
Economic speed of production 80-120m/min
Flute type A/B/C/E/F

Steam consumption: 1000kg/hour

Working. pressure: 1.0—1.1MPa

Max. pressure 1.3Mpa

Power requested 380V,50Hz,3-phase
Total power 80kw for general condition
Total length of line 30 meters.



Single facer paperboard production line



High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

Detail of Image

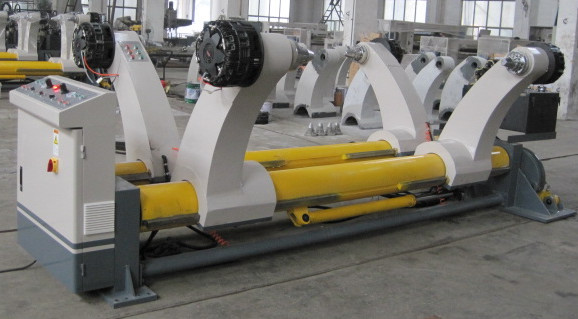

Hydraulic Mill Roll Stand



Core clutch                                                            Pneumatic break

High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min      High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min



Specification

Max. working width 1800mm
Min. working width 900mm
Max. paper mill dia 1500mm
Max working pneumatic pressure: 0.6-0.9Mpa
Power requirements: 380V, 50Hz
Length of track for carry paper mill 6000mm



Preheater



High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

Specification

Max. working width 1800mm
Max working steam pressure: 1.0-1.3Mpa
Steam temperature 360 centigrade
Power requirements: 380V, 50Hz
Diameter of heating roller 600mm
Wrap roller diameter 115mm

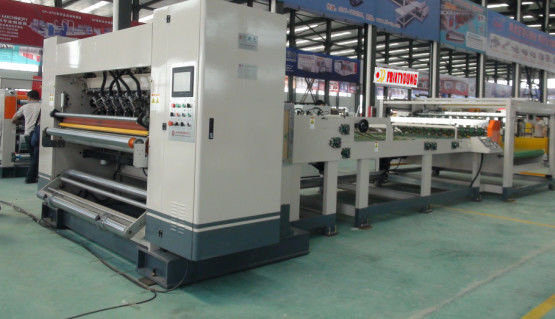

High Speed Fingerless Type Single Facer



High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

Gimbal driver system. Individual gear type drive box

High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min



Overhead Bridge



High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min
