Double Side Sheet Fed Offset Printing Machine With Alcohol Dampening

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: ZMB104-AL
Minimum Order Quantity: 1 Set/Sets
Packaging Details: wooden case
Delivery Time: 5-10 stock,20-60 unstock
Payment Terms: L/C, T/T, Western Union
Type: Sheetfed Offset Printing Plate Type: Flatbed Printer
Usage: Label Printer, Paper Printer, Cigarette Printer Color: Multicolor
Automatic Grade: Automatic Voltage: 380V
Rubber Roller: Strong Cylinder-packing Feeding: Underside Feeding Swing Arm With Conjugate Cam
Dampening System: 5-roller Alcohol Dampening Cylinder And Rollers: Air Clutch
Gripper Force: Adjustable
High Light:

sticker printing machine

,

auto print offset machine

         Double Side Sheet Fed Offset Printing Machine With Alcohol Dampening

Qucik Detail



ZMB104-AL is model of offset perfector by alcoholic damping system, which is developed by Shanghai Printyoung International Industry Co., Ltd. From 2008. Machine is a highly effective and special for double side presswork such as various high-grade and fine manual books, advertisements and magazines, school books and readings, high quality tool-books etc

And we have the Proprietary Technology of Chinese Cigarette Box Printing



Main Specification



Max. Sheet Size 720×1040mm
Min. Sheet Size 360×520mm
Max. Printing Area 710×1030mm
Plate Size 800×1040×0.3mm
Max. Printing Speed 10000sph
Sheet Thickness 0.04~0.20mm
Feeder Stacking Capacity 1200mm
Delivery Stacking Capacity 900mm
Main Motor Power 11kw
Machine Power 25kw
Dimensions(L×W×H) 5720×3380×2750mm
Weight 16000kg



Features

 Double-row TRB (Tapered Roller Bearing) Equipped for All Cylinders

 Underside Feeding Swing Arm and Front Lay

 Separate Adjustable Plate Clamp for Quick Register Correction

 Centralized Control through Touch Screen

 Air Clutch for Cylinders and Rollers; Both Automatic and Manual Clutch Control Possible For Flexible  Operation

 Gripping Force Adjustable For All Grippers on Transfer Cylinders

 Stainless Steel Sprayed Plate Cylinder

 Frequency Conversion Speed Regulation for Water Panroller

 Centralized Automatic Lubricating System



Advantage

The machine is equipped with 5 roller alcohol Dampening System

We have the patented intermediate roller of stable performance



Details of Image



Double Side Sheet Fed Offset Printing Machine With Alcohol Dampening 0

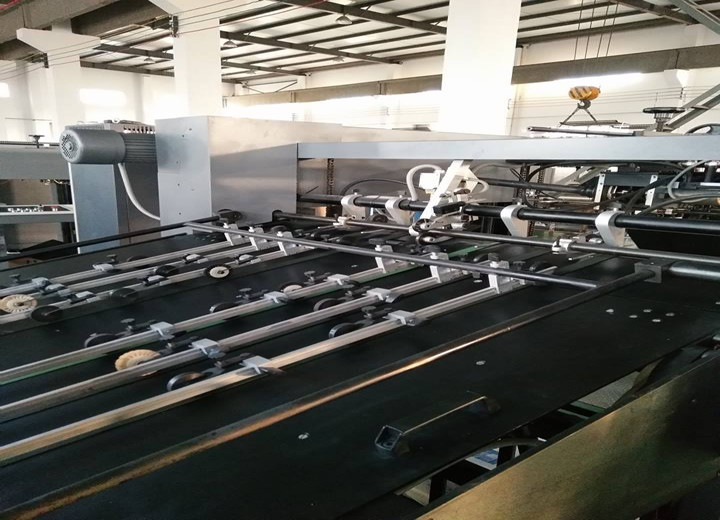

The feeding adopt the conjugate cams structure and the swinging front lay under the paper



Double Side Sheet Fed Offset Printing Machine With Alcohol Dampening 1

spray stainless steel on plate cylinder surface, difficult to become rusty
