|Type:||Paper Box Making Machine||Processing Type:||Gluing Machine|
|Box Forming:||Straight Line Prefold Line Bottom Lock||Paper Weight:||210-660gsm|
ZH-800G/880G/1000G is the latest multi-functional crash lock folder gluer; it made indelible contributions to the firld of folder gluer. It comblnes a variety of folder gluer features, the general-paste, pre-folded edges with crash lock bottom. It's powerful, widely usage, easy operating and adjusting boxes. Especially for the current packaging and printing industry-competitive business, the delivery of the tight schedule offers great convinience, so the packaging equipment is ideal for the printing industry. It is widely used in processing medecine box, wine box, cosmetics box, electric appliances, packing box, etc. ZH-G was awarded two patents.
Line Speed:0-220m/min adjustable
Box forming;both sides prefold,fold from either side,either sdide glue,bottom glue.

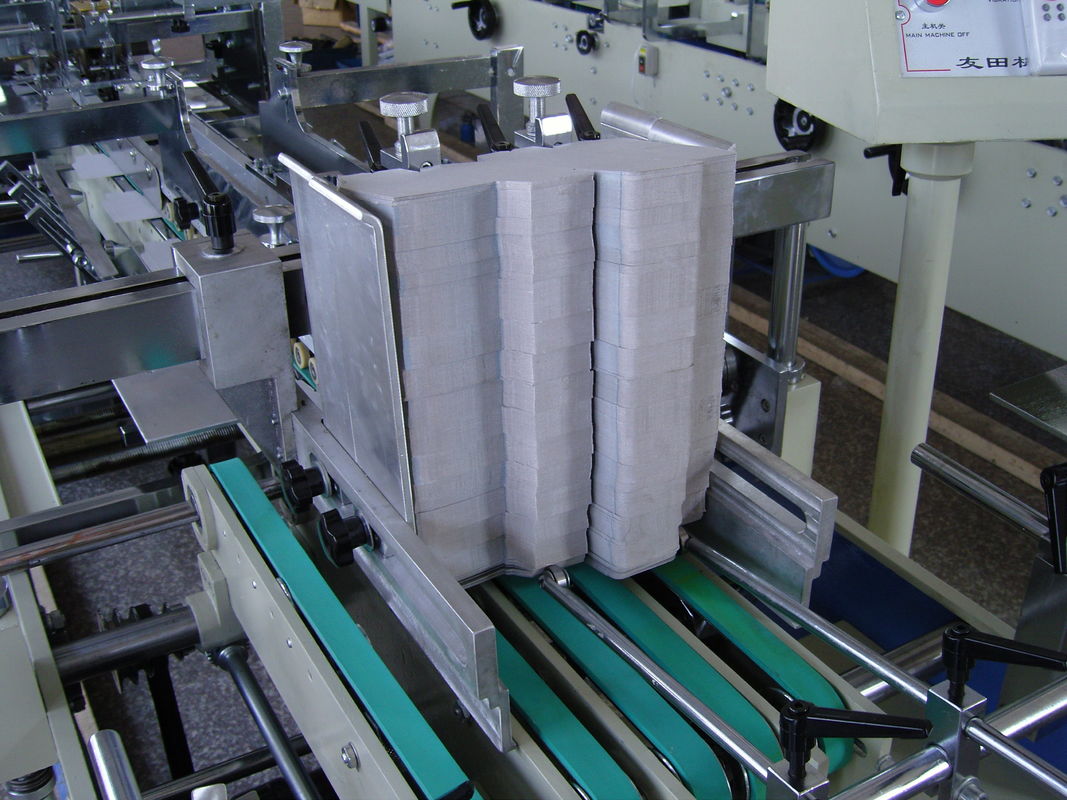

Paper board feeding:Automatic
way of folding:1st,2nd and 4th fold 180°,3rd folds 135°
Gluing:four stations,2 upper stations,2 lower stations.Each lower station has a grindingwheel for cleaning UV varnish and ink off the flap before gluing.
Glue type:water solvable
Auto Counting Range:0---999999 No.with batching facility
Pressure table : Independent speed control,With Cover
Trombone : Wire-controlled jogging to change fixed wallboard
The place of paper board feeding is embedded
Bale no disassembly,long service period
line box crash lock bottom
|Model||Box type||(A Max)||(A Min)||(B Max)||(B Min)||(C Max)||(C Min)||(D Max)||(E Min)|
|ZH-800G||Straight line box(I)||560||106||50||65||270||50||7||6|
|Crash lock bottom box(I)||560||160||500||65||270||80||40||6|
|ZH-880G||Straight line box(I)||660||110||500||65||320||50||7||6|
|Crash lock bottom box(I)||660||160||500||65||320||80||50||6|
|ZH-1000G||Straight line box(I)||760||130||600||80||370||60||10||8|
|Crash lock bottom box(I)||760||180||600||80||370||90||60||8|
Detail of Image
