Automatic 4 Station Screen Printing Machines For Business Card

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: JB-800CL
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Top Speed: 1100 PCS/h Space Of Printing Paper: 7500X500mm
High Light:

cylinder screen press

,

sticker printing machine

Automatic 4 Station Screen Printing Machines For Business Card



Specifications :





Take-off Set

JB-800CL

JB-800CL

JB-900CL

Screen Printing Part

JB-750C/750 II

JB-960 II

JB-1280 II

Top Speed

1100 PCS/h

1000 PCS/h

900 PCS/h

Space of printing paper



7500X500mm

≤500/㎡

900X600mm

≤500g/㎡

1200X800mm

≤400g/㎡

Power

15.2KW

16.49KW

16.89KW

Weight(about)

1400KG

15300KG

1650KG

Overall dimension

6600X1050X1760mm

6800X1180X1760mm

7100X1400X1850mm

Take-off Set

Model

JB-800CL

JB-900CL

Top Speed

1200pcs/h

1200pcs/h

Specs of paper

720mm(W)500g

820mm(W)400g

Power

220V 290W

220V 290W

Weight

350kg

400kg

Overall dimension

2000X1000X1100mm

2200X1100X1100mm



Introduction:

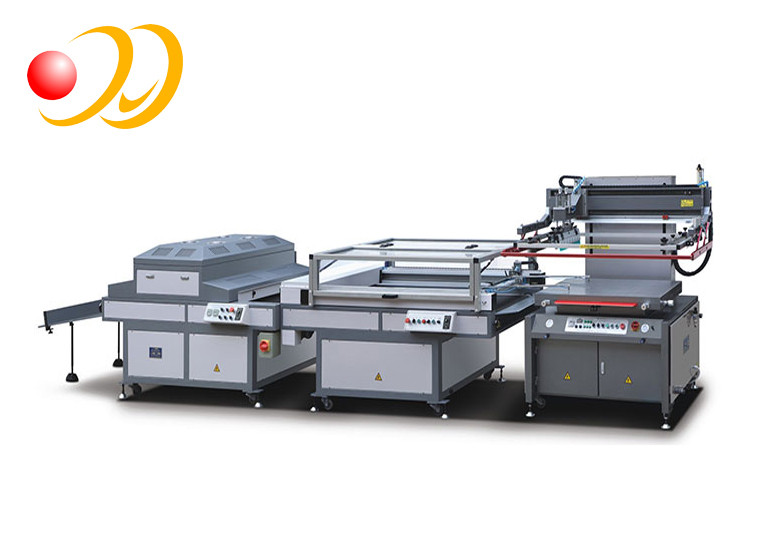

 The machine is composed of printing part,take-off set machine and UV dryer. It is a 3/4 automatic line which the printing stock is fed by hands takenoff automatically. After the printing finished and the printing arm put up, the mechanism arm of take off set machine will extend into between the arm and the plane,suck and pull out the printing stock, then send it to next working procedure( drying, solidify or collection). It's not only can save the man, but also improve the using efficiency of the machine. If s fit for the flexible material, such as paper product.



Application:

Automatic 4 Station Screen Printing Machines For Business Card 0
