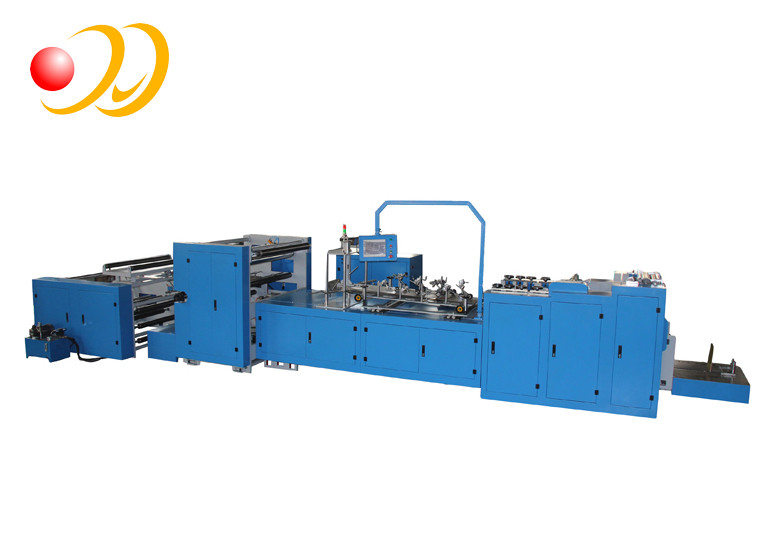

PLC Touch Screen Food Paper Bag Machine High Speed With Flat Bottom

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: ZNS-550
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Max.roll Paper Width: 1500mm Max. Dia Of Roll Paper: 1000mm
Inside Diameter Of Paper: 76mm Line Speed: 100m/min
Paper Gram: 45-120g/m2
High Light:

hand bag making machine

,

shopping bag making machine

PLC Touch Screen Food Paper Bag Machine High Speed With Flat Bottom



Specifications :



Max.roll paper width:

1500mm

Max. dia of roll paper:

1000mm

Inside diameter of paper:

76mm

Finished paper bag width:

200-550mm

Finished paper bag length:

200-800mm

Gusset width:

20-160mm

Bottom folded width:

15-40mm

Paper gram:

45-120g/m2

Production speed :

100-300 pcs/min

Line speed:

100m/min

Total power:

22kw

Machine weight:

6000kg

Overall dimension:

7500*1900*1700mm



Description :



ZNS-550 Full automatic high speed food paper bag machine, mainly used for making large size of  food paper bags with gusset side and flat bottom. This machine adopt original Bosch Rexroth Electrical system imported from Germany. And equipped with PLC touch screen. With high degree automation, it is convenient to change the specification of paper bags' length through Man-machine touch screen interface.

This machine with fast speed, stable performance, strong durability, wide application, easy adjustment and maintenance. Its technology and performance have reached the international advanced level, reduce the cost of  labor largely. Thus it's the most ideal equipment for most paper bag factories to choose!



Main Configuration

1. Bosch Rexroth Electrical system imported from Germany
(3 servo motors:perforate/snapping/bottom folding)
2. Germany Bosch rexroth touch screen
3. Adopt original NSK bearings imported from Japan
4. Germany SICK photocell tracking system
5. With automatic detection of the fault.
6. Roll paper feeding with automatic tension controller
7. Roll paper feeding with automatic up&down function
8. Roll paper locked by gas expension shaft
9. With the function of automatic deviation rectifying system
10. With the function of automatic stop when paper broken
11. With full automatic refueling system
