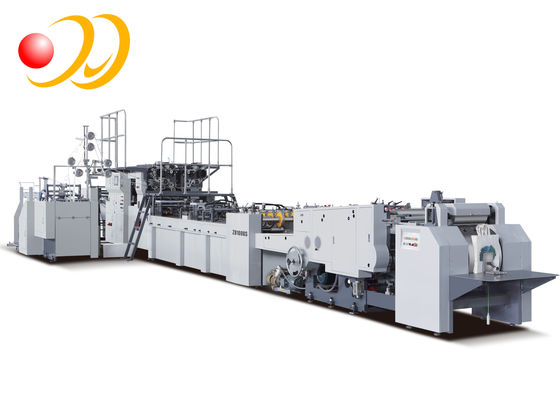

Shopping Paper Bag Manufacturing Machine With Edge Cutting System

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY1080S-380
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Max.sheet: 1080X600mm Min.sheet: 600X350mm
Sheet Weight: 90g-190g Bottom Width: 80-180mm
Bag Width: 220-380mm Speed: 50-80bags/min
High Light:

hand bag making machine

,

cloth bag making machine

Shopping Paper Bag Manufacturing Machine With Edge Cutting System


Specifications :


This machine can produce 3 kinds of different paper bags

Shopping Paper Bag Manufacturing Machine With Edge Cutting System 0

Shopping Paper Bag Manufacturing Machine With Edge Cutting System 1

Shopping Paper Bag Manufacturing Machine With Edge Cutting System 2

Max.sheet(LXW)

1080X600

1080X600

1080X600

Min.sheet(LXW)

600X350

600X350

600X320

Sheet Weight

90g-190g

90g-250g

90g-230g

Bag Width

220-380mm

200-380mm

220-380mm

Bottom Width

80-180mm

80-180mm

80-180mm

Bag  length

250-490mm

250-490mm

260-540mm

Top turn in width

40-60mm

40-60mm

----

Handle patch length

188.5mm

188.5mm

188.5mm

Handle patch width

35-55mm

35-55mm

35-55mm

Handle patch weight

100g-300g

100g-300g

100g-300g

Handle patch roll diameter

φ 1200mm

φ 1200mm

φ 1200mm

Handle patch roll width

70-110mm

70-110mm

70-110mm

Paper rope diameter

4-6mm

----

4-6mm

Handle rope height

170-195mm

----

170-195mm

Speed

50-80bags/min

50-80bags/min

50-80bags/min

Total Power

15kw

15kw

15kw

Total Weight

20T

20T

20T

Machine Size

16100x5100x3100mm

16100x5100x3100mm

16100x5100x3100mm

Glue Type

Water soluble cold glue
(hot-melt glue)

Water soluble cold glue
(hot-melt glue)

Water soluble cold glue (hot-melt glue)


Description :

PRY1080S fully automatic bag making machine (Adopt Italy technical) is take sheet paper,reel reinforced paper and paper twist rope as raw material,with one time finish contineous process of handle manufacturing,handle adhere,top folding(or without top folding) ,tube forming,gusset forming,bottom pasting,compaction output and stick reinforced paper,top folding,tube forming,gusset forming,punch eyelets, bottom pasting,compaction output.with three perfect technology combination , one machine with three methods of production ,it worthy.especially suitable for clothing,footwear, sports brand or luxury brands product's outside bag production . Truly realise fully automatic production , can packaged to the customer once finish produce on machine.

Suitable paper :



A

B

C

D

E

Max. Size
Min. Size

1080
600

600
350

180
80

380
220

490
250

Suitable Paper: Kraft paper, art paper(including film adhesive paper).
Shopping Paper Bag Manufacturing Machine With Edge Cutting System 3

Machine configuration :

Shopping Paper Bag Manufacturing Machine With Edge Cutting System 4
1. Feeder: Enhanced prestack paper feeder to realize non stop paper feeding, greatly save the time to load and adjust raw paper.
2. Front And Side Guides Positioning System
3. Edge Cutting System
4. Reinforced paper gluing system
5. Handle pasting system
6. Handle cut off systemf
7. Top folding system: controlled by mechanical multi-cam to realize automatic top folding,greatly improve production effiency.
8. Automatic edge gluing system
9. Automatic creasing and Punching system
10. Thread rod to adjust bottom Clip system
11. Bottom catch bag roller paper bag Fall down alert system
12. Automatic collection system: Automatic counting,convenient to collect bags

Shopping Paper Bag Manufacturing Machine With Edge Cutting System 5
1. reinforced paper gluing system: can be devided into manual and automatic two states,which controlled by the central computer to ensure over glue coating to each bag,no over gluing,no miss gluing,keep unified quality.
2. Pasting handle system: Cam with suction air to precisely control the position of handle pasting
3. Top folding system: controlled by mechanical multi-cam,cautomatic top folding,greatly improve production efficiency.
