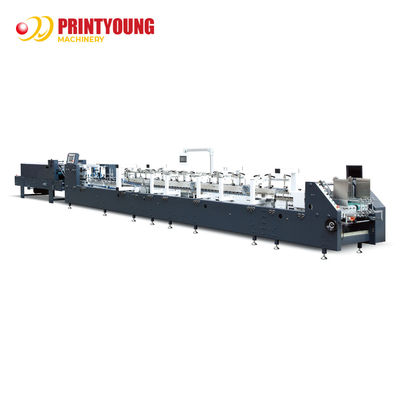

6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: 800CS
Minimum Order Quantity: 1 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 5 Set/Sets per Month
Automatic Grade: Automatic Driven Type: Electric
Voltage: 380V Dimension: 16.5 *1.4*1.8m
Weight: 6T Warranty: 1 Year
Key Selling Points: High-accuracy Carton Board Max: 800 MM
Corrugated Flute Type: A,B,E Speed Max: 350 M/min
Inching Speed: 10 M/min Thickness Of Folded Box Max: 20 Mm
Blank Width: 800 Mm Electrical Connected Load: 15 KW
Compressed Air: 6 Bar Air Compressor Capacity: 10 Cubic Meter/h
High Light:

6 Corner Corrugated Folder Gluer Machine

,

Folder Gluer Machine 350m/Min

,

15KW Folder Gluer Machine

Products Description

Technical Parameters
Automatic High Speed Gluer Folder
CS Series
800CS
Carton Board Max.
800 MM
Corrugated Flute Type
A,B,E
Speed Max.
350 m/min
Inching Speed
10 m/min
Thickness of Folded Box Max.
20 mm
Blank Width
800 mm
Electrical Connected Load
15 kW
Compressed Air
6 bar
Air Compressor Capacity
10 m³/h
Air Tank Capacity
60 L
Length*Width*Height
16.5 *1.4*1.8m
Net Weight
6T




Common type and size
Size of bottom lock carton
Carton type
A
75-800
146-800
160-800
B
60-800
90-800
90-800
C(Min)
35
20
40
D(Min)
---
30
35
E(Min)
---
40
20
Configuration
6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 0 6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 1

1.Feeding                                                                            2.Aligner Section

Rail width can be horizontally adjusted and set by seven    The paper board sent from feeder section will be corrected
pieces 30mm thickened feeding belt and 10mm metal        by aligner section to ensure transmission accurately.
board.Embossing drive wheel guide the feeding section     Pressing drive pressure can be adjusted up and down to
belt, side feed gates in the right and left are adjustable       accommodate different paper board thickness.
according to the products.
6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 2 6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 3

3.Pre-Folding Section                                                        4.Lock Bottom Section

Special first folding line pre-fold 180°. third line 170°,          Complete set of folding hooks and helixes to fold the front flaps
which perfectly meeting the requirements of automatic       of the blank smoothly and accurately.Sectional-type upper belt
packaging industry.                                                               board with special design, which can be adjusted according to
                                                                                              the products type ,no need to tension belt.
6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 4 6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 5

5.Lower Gluing Tank                                                          6.Folding

lower gluing tank is large volume.Optional lower gluing      The Second and fourth folding line 180°.Folding and closing
tank in the right and left side with large volume.Easy to      section transmit from right and left side ,the belt speed can be
remove and clean.Electronic upper gluing system by          adjusted separately and correct the way of box running to ensure      guns                                                                                      straightly delivery.
6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 6 6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 7

7.Trombone Section                                                          8.Transmission

Up and down belt can be adjusted separately.                    Equipped with special additional sponge belt for the press
Equipped with photo electronic counting device and           of boxes valley part.Upper section moves back and forward,
kicking paper device, which can press the paper after        allowing for different box length. Pneumatic pressure regulator ,
accounting and make it easy to pack .                                 which can effectively ensure the uniform of fitting pressure,
Also equipped with feeding paper inspection device.          makes machine easy to adjust.
Applications
6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 8 6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 9
6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 10 6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 11
Customer
6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 12
Company Profile
6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 13
6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 14
6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 15
Why Choose Us
6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 16
Packaging&Shipping
6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 17 6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 18
6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 19 6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW 20

FAQ


Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
