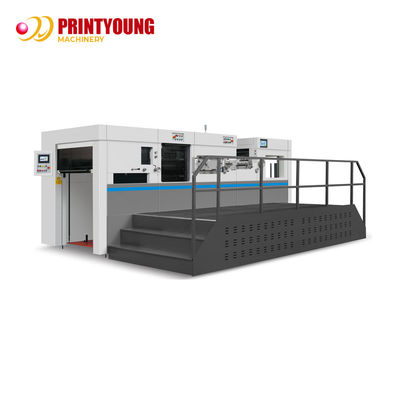

Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping

Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping
Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-1050CE
Minimum Order Quantity: 1 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 20 Set/Sets per Month
Contact Now
Voltage: 380V Dimension: 7700*4600*2400mm
Weight: 17t Warranty: 1 Year
Production Capacity: 7500s/h Max. Workable Width: 1050mm
Max.Sheet Size: 1050*750mm Min.Sheet Size: 400*360mm
Max.Die Cutting Size: 1040*720mm Gripper Margin: 9-17mm
Dimension Of Inner Plate Frame: 1080mm*745mm Sheet Size: 80~600g/㎡
Precision Of Die Cutting: ≤±0.1mm Max.Working Pressure: 300t
Max.Paper Feeding Stacking Height: 1600mm Max.Paper Collecting Stacking Height: 1400mm
High Light:

Cardboard Paper Die Cutting Machine

,

Flatbed Paper Die Cutting Machine

,

7500s/h Stripping Paper Die Cutting Machine

Products Description



Technical Parameters
PRY-1050CE Automatic Die-Cutting Machine with Stripping
Max.Sheet Size
1050×750mm
Min.Sheet Size
400×360mm
Max.Die Cutting Size
1040×720mm
Gripper Margin
9-17mm
Dimension of Inner Plate Frame
1080mm×745mm
Sheet Size
80~600g/㎡
Precision of Die Cutting
≤±0.1mm
Max.Working Pressure
300t
Max.Working Speed
7500s/h Die Cutting
Max.Paper Feeding Stacking Height
1600mm(Including Wooden Pallet)
Max.Paper Collecting Stacking Height
1400mm(Including Wooden Pallet)
Main Motor Power
11kw
Total Weight of Machine
About 17t
Full-Load Wattage
 16.9 kw
Whole Machine Dimension
7700mm(length: including pre-feeding track) × 4600mm
(width: including the pedal) × 2400mm
Configuration
Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 0 Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 1

Feeder, Paper Feeding

* Precision feida head that adopts European manufacturing technology, can be used for card paper, corrugated paper and grey board
* Four suction and four sent, the suction angle and height can be adjusted according to the deformation of paper
* Unique paper receiving mechanism, suitable for different deformed papers
* High-speed feida head is specially manufactured for special aluminum alloy material, and all parts are imported
* Dual-feida head anti-collision detection device

* Main and auxiliary paper feeding, can switch without stopping the machine
* A set of pre-feeding mechanism (optional)
* Fish scale type paper feeding, smooth and accurate
* Micro-adjusting mechanism for paper feeding platform, can be adjusted without stopping the machine
* Two-purpose paper feeding machine
* A set of auxiliary paper support device and two sets of paper supporting board



Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 2

Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 3 Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 4

Conveying Paper Platform

*Electromechanical dual-sheet detector
*Adopt advanced control system to control the speed of conveying device, making paper feeding smoothly and reducing collision
*Conveying paper platform can be controlled separately, and vacuum conveying paper platform is optional

*Front gauge detection,to guarantee the arrival rate of paper
*Adopt left/right dual-push pull gauge way to meet different printing and alignment requirements
Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 5 Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 6

Torque Limiter, Intermittent Segmentation                      Main Motor Lubrication System

Taiwan high precision intermittent segmentation ensure   Taiwan made automatic oil pump cooling circulation system
high positional precision for long time usage                     to ensure main motor lubrication of high speed for a long time
Taiwan torque limiter can accurately protect the artifical   Equipped with oiil pressure gauge and with oil pressure alarm device
operation accident to guarantee the people and machine
safety by its sensitive limit protection performance.
Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 7 Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 8

Electrical Parts

*Man-machine interactive touch function, can set different long pull and short pull.
*The alarm will be triggered when the foil is shorter than 6cm.
*The computer deal with foil monitoring system,used to display remaining and have used foil length.
* Machine with full set of Schneider (French) Electric components and PLC control system ,ensure machine running stability.
Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 9 Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 10

Stripping Part (Front)                                                     Stripping Part(The Fourth Side of the Waste Paper)

*Adopt upper and lower dual-frame stripping mechanism  *Afrer get the paper , tooth raw get off the last side of the
*Adopt male/female template to realize various stripping    waste paper, then use belt feeding side face,in order to
*Adopt central positioning device that matches with the      achieve the purpose of total four sides stripping
 die cutting part to reduce plate replacing time
Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 11 Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 12

Paper Collection Part

*Automatic paper aligning device and two blowers for paper collection can ensure neat collection of thin and thick papers
*Paper collection part with touch screen control,it is convience for operation and has data display, and all operations can be  performed through the touch screen
*Paper collection part is equipped with control panel to realize more personalized operation
*Paper collection photoelectric device, to ensure neat paper collection
*Automatic lift control system of paper collection platform
*Manual auxiliary paper collection system
*The main chain protection device
*Prevent the paper returning device
*Equipped with non-stop device
*Paper collecting part with a 10.4 inch screen ,can control whole machine
Customer
Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 13
Company Profile
Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 14
Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 15
Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 16
Why Choose Us
Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 17
Packaging&Shipping
Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 18 Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 19
Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 20 Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping 21

FAQ

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
