380V Creasing Die Cutting Machine 200 Times/Min 14.5KW

380V Creasing Die Cutting Machine 200 Times/Min 14.5KW
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 380V Creasing Die Cutting Machine 200 Times/Min 14.5KW
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-1200
Minimum Order Quantity: 1 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 20 Set/Sets per Month
Contact Now
Voltage: 380V Dimension: 4200 X 2100 X 1850 Mm
Weight: 8400 Kg Warranty: 1 Year
Production Capacity: 150-200 Times/min Key Selling Points: High-accuracy
Max. Workable Width: 1200mm Paper Convey Width: 1200mm-400mm
Max Roll Paper Diameter: 1800mm Cut Precision: ± 0.10mm
Maximum Cutting Size: 1200x640mm Suitable Material: 100-800g/m2 White Cardboard, PE Coated Paper, Kraft Paper.etc
Maximum Pressure: 350T Power: 14.5KW
Working Air Source:: Air Pressure: 0.6Mpa;Working Air: 0.3m³/min
High Light:

380V Creasing Die Cutting Machine

,

14.5KW Creasing Die Cutting Machine

,

1200x640mm Creasing Die Cutting Machine

380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 0

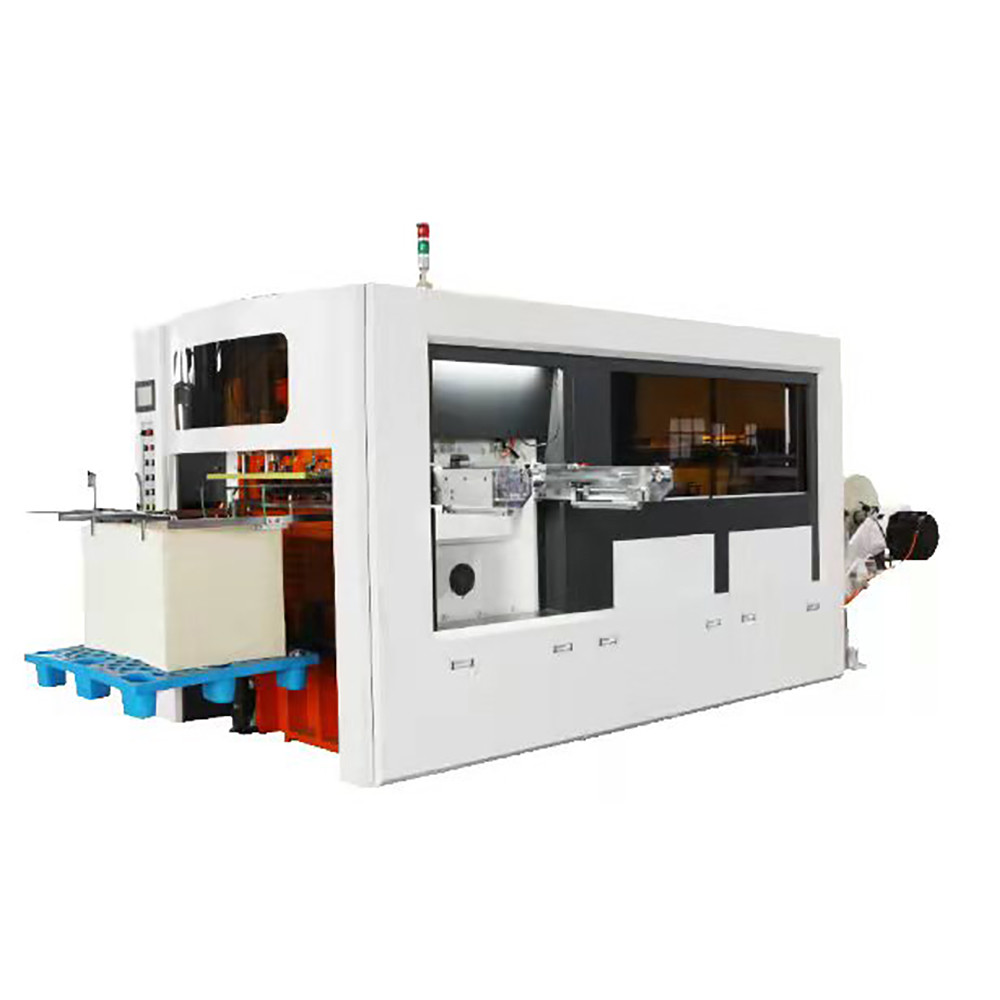

PRY-1200 Roll Die Cutting and Creasing Embossing Machine
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 1
Advantage of the machine:machine again increase the speed,technical again improve as follows
1. Oil recycling system with alarm safety system,
machine automatic stop when lack of oil inside the machine,make sure the machine long lifetime

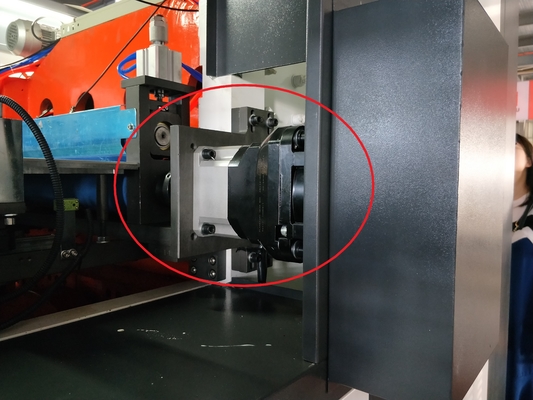

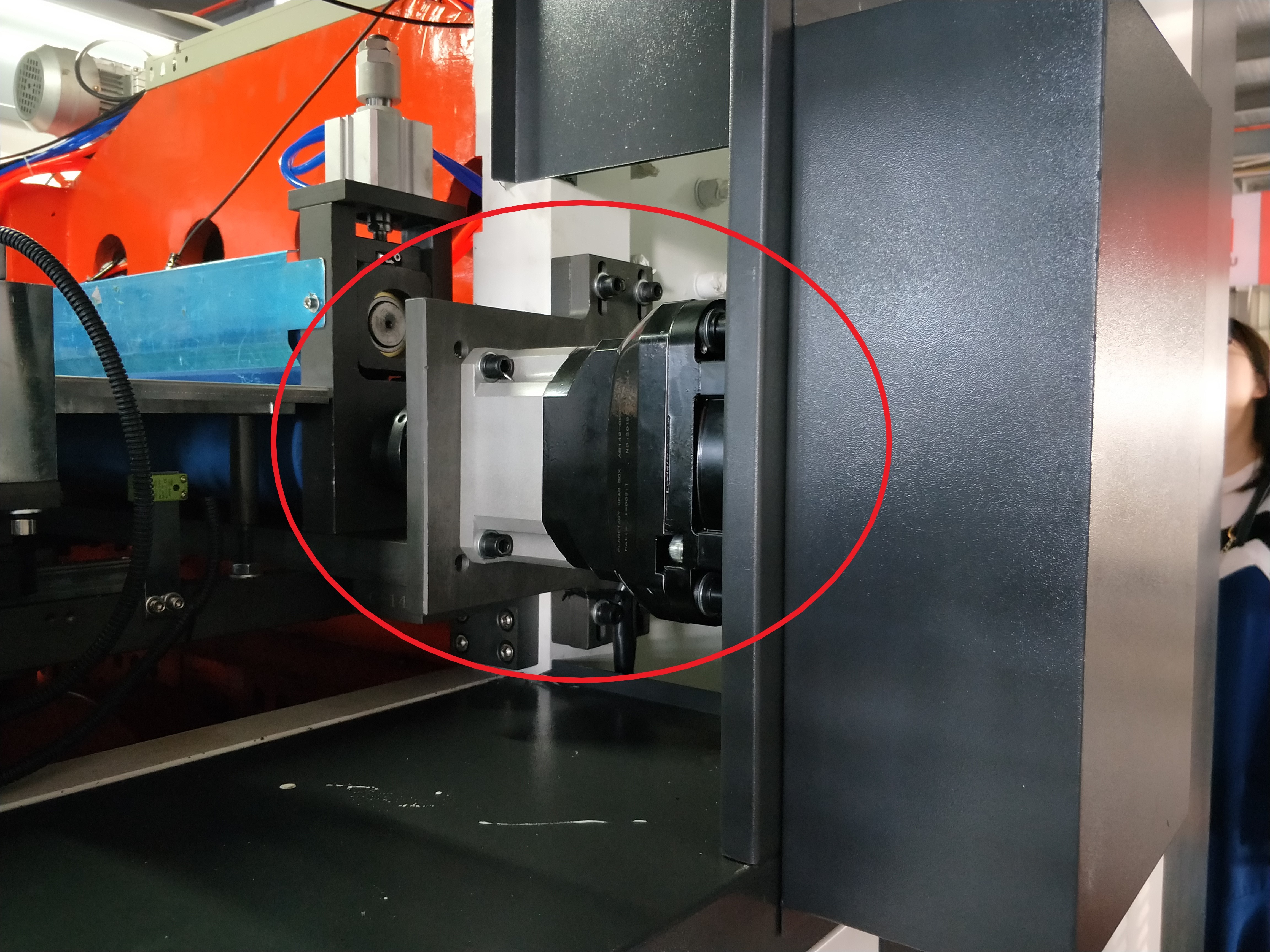

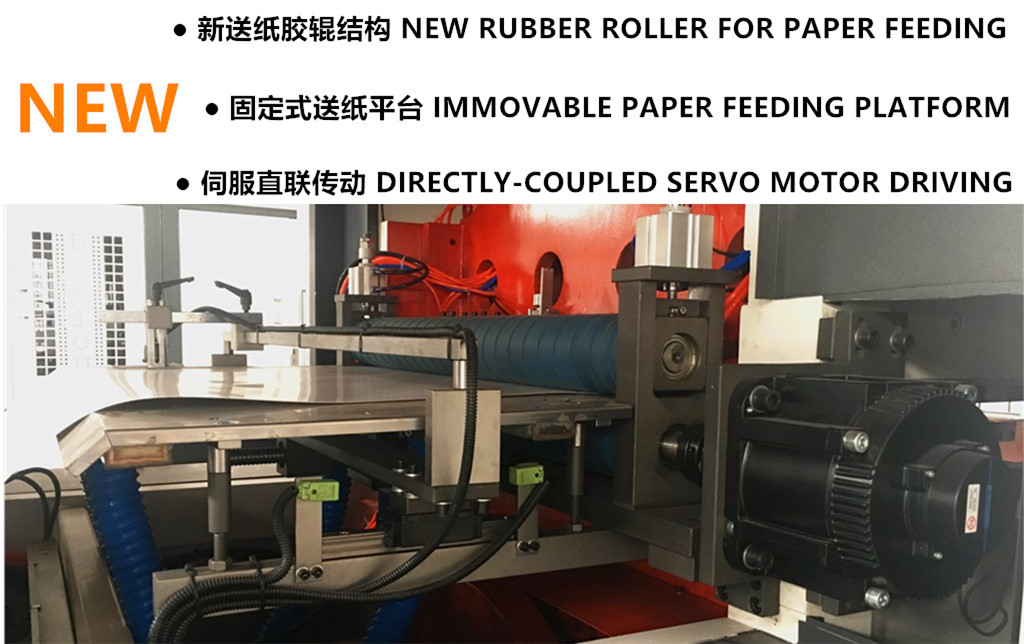

2. Direct linking servo motor,now with extra reducer with motor make sure stable and faster running
3. New design paper feeding roller structure
4. Paper feeding plate not move when machine running and die cutting,make sure the machine
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 2
can run stable and safe when machine running at high speed
5. Oil recycling system is outside machine body,old design,oil recycling system is inside the machine body,now,it is more easy to
use and clean it
6. Positioning block in movable platform we add one more positioning block in movable platform.It makes the pressure of the
platform more stable, and endurable.
7. Machine more faster,our main motor and driver all become bigger than before
Technical Parameters
PRY-1200 Roll Die Cutting and Creasing Embossing Machine
Type
PRY-1200
Paper Convey Width
1200mm-400mm
Max Roll paper diameter
1800mm
Cut Precision
± 0.10mm
Production capacity
150-200times/min
Maximum cutting size
1200 x640mm
Suitable Material
100-800g/m2 white cardboard, PE coated paper, Kraft paper.etc
Maximum Pressure
350T
Power
14.5KW
Total Weight
8.4 T(standard)
Overall Dimension
4200 x 2100 x 1850 mm
Working Air Source
Air pressure: 0.6Mpa;
Working air: 0.3m³/min;
Other size can be customized
Features

PRY-1200 is an ideal and professional machine in die-cutting,creasing,embossing and full-stripping various PE coated paper,normal paper,corrugating paper and plastic material.It applies to paper cup,paper box,medical package,wine package,food package and other environmental protection products.It adopts micro

computer,HMI,servo positioning,alternating current frequency converter,automatic counting,photoelectric rectifying,and pneumatic lock cutting plate,electromagnetic clutch,centralized oil lubrication, overload protection and distinctive gearing.All of these is the guarantee of steady pressure,precise positioning,smooth running,safety and reliability operation.

1. The working speed is 150-200times per minute,the level of the capacity in China is 120times per minute. It has the ability to die-cutting,creasing and embossing for various shapes.
2. Paper conveyed by servo motor to ensures steady and accurate conveying.photoelectricity sensor checks the color code of printing to ensure fix the paper position accurately.
3. Electric control system uses PLC and HMI.Equipped with safety refinements to make acoustic-optical alarming and auto stop when some faults.


380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 3
4.Worm wheel and worm transmission system ensures the powerful and steady pressure;It is very convenient and accurate to adjust pressure through HMI.
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 4
5.Lubricating with oil circulation and alarming when lack of oil to ensure smooth running and prolong the machine life.
6.The die-cutting frame uses pneumatic locking system to convenient operation.Die-cutting down steel board from Taiwan is accurate and lasts forever.
7.It adapts electric control pneumatic clutch to protect the machine when start and emergency stop.The flywheel provides a mounting location to the clutch and also can increase the pressure.
Advantage and Improvement
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 5
                  The New Design                                              The Previous Design
Machine Host
New design: Worm and Worm wheel together with crankshaft same as the sheet die-cutting machine.
The previous design: off-center shaft.
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 6
                    The New Design                                          The Previous Design
Pressure Adjusted
New design:The pressure is automatic adjusted through the motor to control the four feet by HMI. And the pressure can be shown in the HMI. It is very convenient and accurate.
The previous design:manual adjusted through gear wheel or the screw.
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 7
Positioning Block in Movable Platform
we add one more positioning block in movable platform.
It makes the pressure of the platform more stable, and endurable.
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 8
                        The New Design                                              The Previous Design
Oil circuit
New design:The outside oil circuit adds a filter to clear the oil and a flow switch to monitor lacking oil. The previous oil circuit is crude and confused.(the first machinery equips with alarming of oil lacked)
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 9
The New Design
The main driving part in host is protected by the lubrication system. If the data shows problem, the machine will stop and alarming.Then you must check the driving parts
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 10
Air Cylinder Paper Pressure System
In front of the paper feeding platform, we add the air cylinder paper pressure system to ensure the paper convey more smoothly and quickly. We are the first one and the only one machinery who adds this system
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 11
PLC Program
We make two PLC program to fit for the different quality of printing. Be more functional and accurate.
Increase the paper feeding balance adjustment roller, in order to finely adjust the paper feeding imbalance
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 12
Paper Damper
In order to avoid the paper shaking, we add one more damper to make the paper tractable. The paper leech on the damper whenmachine is running. So we can feed paper more stable and faster
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 13
                 The New Design                                             The Previous Design
Roll Paper Loading
The new design: the hydraulic cylinder pushes downward, so it is stronger than the previous design.
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 14
Paper Blocked Alarm System
The new design adds the alarm system to make the machine stop when paper feeding blocked.
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 15
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 16
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 17
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 18
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 19
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 20
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 21
380V Creasing Die Cutting Machine 200 Times/Min 14.5KW 22

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.
