| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PRINTYOUNG |
| Certification: | CE |
| Model Number: | PRY-QFM600B |
| Minimum Order Quantity: | 1 Set/Sets |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 sets per month |
| Model: | QFM-600B | Length Of Paper: | 230-1030MM |
|---|---|---|---|
| Width Of Paper: | 160-600MM | Max Pieces Of Cardboard: | 6 PCS |
| Thickness Of Paper: | 80-300g/㎡ | Thickness Of Cardboard: | 1-3MM |
| High Light: | 3MM Cardboard Case Packer Machine,Printing And Packaging Machines 24KW,600MM Paper Case Packer Machine |
||
PRY-QFM600B Automatic Hard Cover Gluing Case Making Machine
Features
Keep improving to ensure stable and reliable paper transmission.Transmission of facial tissue adopts automatic paper transmission feeder with mutually combined with vacuum suction separated paper and computer controlled vacuum blower wheel paper delivery.Facial tissue enters band steel ball roller conveyer'snew guiding rail for positioning,and then automatically coat glue for re-adoption of opticalfiber precise tracking error correction device. It adopts unique development philosophy to solve problems including getting dirty and scratching.Through belt-oriented chaff transmission system developedby unique professional technique,sucker manipulator transmits product ontovacuum air-transmission conveyor belt for transmission which can avoid phenomenon including surface occurring getting dirty and scratching to meet requirements for high-quality products.
1. Stable and accurate institution providing automatic feeder paper delivery
2. Automatic error correction device for improvement of accuracy of cardboard position
3. Optical fiber precise detection device to improve accuracy of cardboard feeding
4. Solved phenomenon including soiled and scratched surface caused in process of production of chaff and it meets requirements for high-quality finished products
5. Solved difficulties including hemming and scratching for narrower cardboard
6. It has improved efficiency for materials receiving and counting of finished products of chaff.
7.It use intelligent touch screen display and operate system.
8.It adopts Japan OMRON PLC control system, automatic checking trouble,adjusting more convenient and quick. Decrease waste of raw materials.
Parameter technical:
| Model | QFM-600B |
| Length of paper |
230-1030MM |
| Width of paper |
160-600MM |
| Max pieces of cardboard | 6 PCS |
| Thickness of paper | 80-300g/㎡ |
| Thickness of cardboard | 1-3MM |
| Working Speed | 0-30 PCS/MIN |
| Dimension |
L8900XW2250XH1450MM |
| Power supply | 24KW |
| Weight | 4300KGS |
Configuration
It has improved efficiency for materials receiving and counting of finished products of chaff.Implementation of this technology has solved problem of low manual materials receiving and counting.

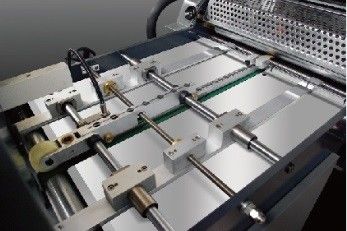

Automatic Error Correction Device for Improvement of Accuracy of Cardboard Positioning.Implemen-tation of this patent is centered on solving requirements for fully automatic cover machine's processing accuracy for produced products, specially some color printed ine packing boxes and covers. So it has achieved higher demands for parallel degree of combination of facial tissue and cardboard and coincidence degree and even some users' requirement for this accuracy reaches less than 0.3mm.This device can meet requirements by users.
Optical Fiber Precise Detection Device to lmprove Accuracy of Cardboard Accuracy.This technology mainly solves problems including large cardboard deformation and rejected products caused by thin cardboard and non-standard board's inaccurate in-place during transmission.It has improved rate of finished products.
