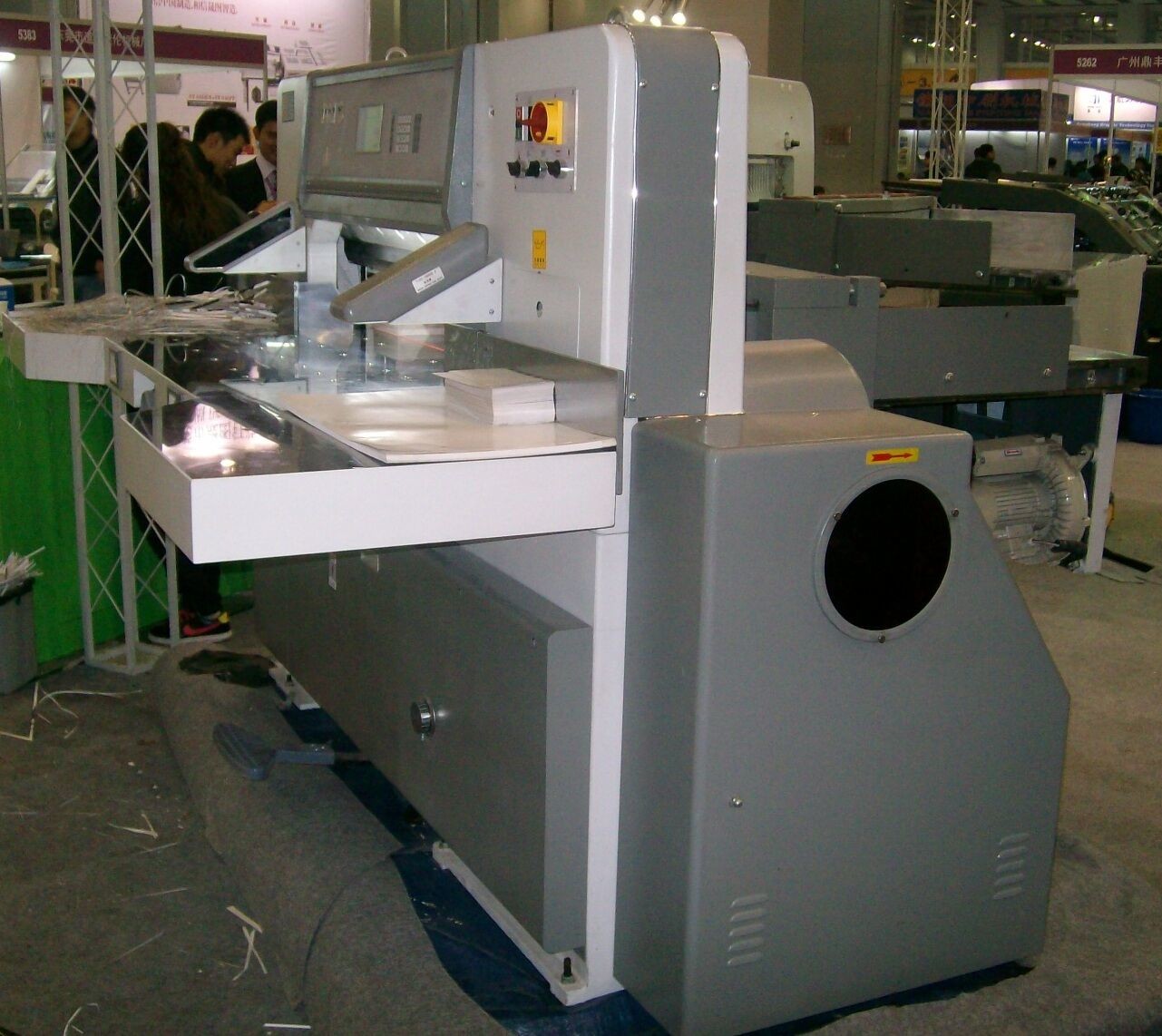

Hamburger Box 42 Times/Min Guillotine Paper Cutting Machine

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-QZX-1370M
Minimum Order Quantity: 1 Set/Sets
Packaging Details: wooden case each Paper Cutting Machine
Delivery Time: within 40 days
Payment Terms: L/C, T/T
Supply Ability: 20sets per month
The Code Of Way Of Transmission: M Cutting Width (mm): 1370
Cutting Height (mm): 160 Front Table Length (mm): 700
Front Table Height (mm): 930 Power Consumption Of Main Motor (kW): 5.5
Max. Clamping Pressure (dan): 5000 Cutting Speed (times/min): 42
Net Weight (kg): 4500 Overall Dimension L × W × H (m): 2.85×1.62×2m
High Light:

Hamburger Box Paper Cutting Machine

,

42 Times/Min Paper Cutting Machine

PRY-QZX-1370M Digital Hamburger Box Magazine Paper Cutting Machine



Introduction

This machine is with 7inch computer and the computer have 30 groups program and each program has 126 cutting capacity. The paper pusher is driven by LG converter and the speed of paper pusher can reach 10 meters per minute. The clamp is driven by hydraulic system and the clamp pressing pressure can be adjusted according to different type of paper. We use SIEMENS AC contactor, Toshiba Bridge Rectifier, Omron PLC, Schneider Travel Switch and LG Air Switch. This machine is combined with program function and at price level of digital display paper cutting machine. It is very suitable for small and medium scale printing and packing enterprise. The password can be set in advance. When this machine is used for some time, the computer will be locked and after final customer clear all payment then clear password. It can lower the reseller’ business risk

Feature

1.High quality casting part made by resin bonded sand way.

2.Chrome-plated slot-less working table installed with double imported linear guide and air cushion.

3.Mechanical assistance device for knife replacement

4.Overload protection safety device

5.Infrared photoelectric protection device

6.Knife cutting only operated by pressing two buttons at same time

7.Fluorescent lamp and cutting line indicator

8.Elective device for knife bar

9.Use imported components in Hydraulic system

10.Use imported electronic units like Siemens, TOSHIBA, ORMON, LG, Schneider and Fotek

11.On PLC control

12.Driven by LG converter, the maximum speed of the back gauge is 10 m/min

13.Use imported Mechanic components like NSK Bearing

14.Single Hydraulic

15.With Germany Brand IKS Blade



Technical parameters

Model 780 920 1150 1370
The Code Of Way Of Transmission M M M M
Cutting Width (mm) 780 940 1150 1370
Cutting Length (mm) 780 940 1150 1370
Cutting Height (mm) 120 120 160 160
Front Table Length (mm) 610 610 700 700
Front Table Height (mm) 930 930 930 930
Power Consumption Of Main Motor (kW) 3 3 5.5 5.5
Max. Clamping Pressure (dan) 3000 3500 5000 5000
Cutting Speed (times/min) 42 42 42 42
Net Weight (kg) 2000 2300 3800 4500
Gross Weight (kg) 2200 2500 4000 4700
Overall Dimension L × W × H (m) 2×2.1×1.5m 2.3×2.1×1.5m 2.5×2.7×1.6m 2.8×3.2×1.7m
Packing Size L × W × H (m) 2.3×1.42×1.9m 2.3×1.42×1.9m 2.65×1.62×1.9m 2.85×1.62×2m



Spare parts (Free)

Hamburger Box 42 Times/Min Guillotine Paper Cutting Machine 0Hamburger Box 42 Times/Min Guillotine Paper Cutting Machine 1

Hamburger Box 42 Times/Min Guillotine Paper Cutting Machine 2Hamburger Box 42 Times/Min Guillotine Paper Cutting Machine 3Hamburger Box 42 Times/Min Guillotine Paper Cutting Machine 4Hamburger Box 42 Times/Min Guillotine Paper Cutting Machine 5Hamburger Box 42 Times/Min Guillotine Paper Cutting Machine 6
